vtkImageChangeInformation Class Reference

#include <vtkImageChangeInformation.h>

Inheritance diagram for vtkImageChangeInformation:

Inheritance graph
[legend]

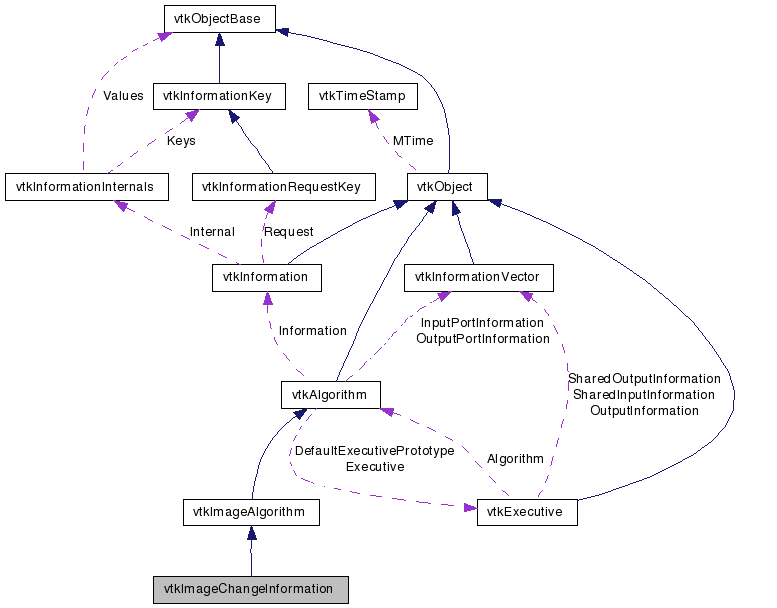

Collaboration diagram for vtkImageChangeInformation:

Collaboration graph
[legend]

List of all members.


Detailed Description

modify spacing, origin and extent.

vtkImageChangeInformation modify the spacing, origin, or extent of the data without changing the data itself. The data is not resampled by this filter, only the information accompanying the data is modified.

Tests:
vtkImageChangeInformation (Tests)

Definition at line 33 of file vtkImageChangeInformation.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetInformationInput (vtkImageData *)
virtual vtkImageDataGetInformationInput ()
virtual void SetOutputExtentStart (int, int, int)
virtual void SetOutputExtentStart (int[3])
virtual int * GetOutputExtentStart ()
virtual void GetOutputExtentStart (int &, int &, int &)
virtual void GetOutputExtentStart (int[3])
virtual void SetOutputSpacing (double, double, double)
virtual void SetOutputSpacing (double[3])
virtual double * GetOutputSpacing ()
virtual void GetOutputSpacing (double &, double &, double &)
virtual void GetOutputSpacing (double[3])
virtual void SetOutputOrigin (double, double, double)
virtual void SetOutputOrigin (double[3])
virtual double * GetOutputOrigin ()
virtual void GetOutputOrigin (double &, double &, double &)
virtual void GetOutputOrigin (double[3])
virtual void SetCenterImage (int)
virtual void CenterImageOn ()
virtual void CenterImageOff ()
virtual int GetCenterImage ()
virtual void SetExtentTranslation (int, int, int)
virtual void SetExtentTranslation (int[3])
virtual int * GetExtentTranslation ()
virtual void GetExtentTranslation (int &, int &, int &)
virtual void GetExtentTranslation (int[3])
virtual void SetSpacingScale (double, double, double)
virtual void SetSpacingScale (double[3])
virtual double * GetSpacingScale ()
virtual void GetSpacingScale (double &, double &, double &)
virtual void GetSpacingScale (double[3])
virtual void SetOriginTranslation (double, double, double)
virtual void SetOriginTranslation (double[3])
virtual double * GetOriginTranslation ()
virtual void GetOriginTranslation (double &, double &, double &)
virtual void GetOriginTranslation (double[3])
virtual void SetOriginScale (double, double, double)
virtual void SetOriginScale (double[3])
virtual double * GetOriginScale ()
virtual void GetOriginScale (double &, double &, double &)
virtual void GetOriginScale (double[3])

Static Public Member Functions

static vtkImageChangeInformationNew ()
static int IsTypeOf (const char *type)
static vtkImageChangeInformationSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageChangeInformation ()
 ~vtkImageChangeInformation ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int CenterImage
int OutputExtentStart [3]
int ExtentTranslation [3]
int FinalExtentTranslation [3]
double OutputSpacing [3]
double SpacingScale [3]
double OutputOrigin [3]
double OriginScale [3]
double OriginTranslation [3]

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 37 of file vtkImageChangeInformation.h.


Constructor & Destructor Documentation

vtkImageChangeInformation::vtkImageChangeInformation (  )  [protected]

vtkImageChangeInformation::~vtkImageChangeInformation (  )  [protected]


Member Function Documentation

static vtkImageChangeInformation* vtkImageChangeInformation::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageChangeInformation::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageChangeInformation::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageChangeInformation::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageChangeInformation* vtkImageChangeInformation::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageChangeInformation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

virtual void vtkImageChangeInformation::SetInformationInput ( vtkImageData  )  [virtual]

Copy the information from another data set. By default, the information is copied from the input.

virtual vtkImageData* vtkImageChangeInformation::GetInformationInput (  )  [virtual]

Copy the information from another data set. By default, the information is copied from the input.

virtual void vtkImageChangeInformation::SetOutputExtentStart ( int  ,
int  ,
int
) [virtual]

Specify new starting values for the extent explicitly. These values are used as WholeExtent[0], WholeExtent[2] and WholeExtent[4] of the output. The default is to the use the extent start of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetOutputExtentStart ( int  [3]  )  [virtual]

Specify new starting values for the extent explicitly. These values are used as WholeExtent[0], WholeExtent[2] and WholeExtent[4] of the output. The default is to the use the extent start of the Input, or of the InformationInput if InformationInput is set.

virtual int* vtkImageChangeInformation::GetOutputExtentStart (  )  [virtual]

Specify new starting values for the extent explicitly. These values are used as WholeExtent[0], WholeExtent[2] and WholeExtent[4] of the output. The default is to the use the extent start of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputExtentStart ( int &  ,
int &  ,
int &
) [virtual]

Specify new starting values for the extent explicitly. These values are used as WholeExtent[0], WholeExtent[2] and WholeExtent[4] of the output. The default is to the use the extent start of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputExtentStart ( int  [3]  )  [virtual]

Specify new starting values for the extent explicitly. These values are used as WholeExtent[0], WholeExtent[2] and WholeExtent[4] of the output. The default is to the use the extent start of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetOutputSpacing ( double  ,
double  ,
double
) [virtual]

Specify a new data spacing explicitly. The default is to use the spacing of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetOutputSpacing ( double  [3]  )  [virtual]

Specify a new data spacing explicitly. The default is to use the spacing of the Input, or of the InformationInput if InformationInput is set.

virtual double* vtkImageChangeInformation::GetOutputSpacing (  )  [virtual]

Specify a new data spacing explicitly. The default is to use the spacing of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputSpacing ( double &  ,
double &  ,
double &
) [virtual]

Specify a new data spacing explicitly. The default is to use the spacing of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputSpacing ( double  [3]  )  [virtual]

Specify a new data spacing explicitly. The default is to use the spacing of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetOutputOrigin ( double  ,
double  ,
double
) [virtual]

Specify a new data origin explicitly. The default is to use the origin of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetOutputOrigin ( double  [3]  )  [virtual]

Specify a new data origin explicitly. The default is to use the origin of the Input, or of the InformationInput if InformationInput is set.

virtual double* vtkImageChangeInformation::GetOutputOrigin (  )  [virtual]

Specify a new data origin explicitly. The default is to use the origin of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputOrigin ( double &  ,
double &  ,
double &
) [virtual]

Specify a new data origin explicitly. The default is to use the origin of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::GetOutputOrigin ( double  [3]  )  [virtual]

Specify a new data origin explicitly. The default is to use the origin of the Input, or of the InformationInput if InformationInput is set.

virtual void vtkImageChangeInformation::SetCenterImage ( int   )  [virtual]

Set the Origin of the output so that image coordinate (0,0,0) lies at the Center of the data set. This will override SetOutputOrigin. This is often a useful operation to apply before using vtkImageReslice to apply a transformation to an image.

virtual void vtkImageChangeInformation::CenterImageOn (  )  [virtual]

Set the Origin of the output so that image coordinate (0,0,0) lies at the Center of the data set. This will override SetOutputOrigin. This is often a useful operation to apply before using vtkImageReslice to apply a transformation to an image.

virtual void vtkImageChangeInformation::CenterImageOff (  )  [virtual]

Set the Origin of the output so that image coordinate (0,0,0) lies at the Center of the data set. This will override SetOutputOrigin. This is often a useful operation to apply before using vtkImageReslice to apply a transformation to an image.

virtual int vtkImageChangeInformation::GetCenterImage (  )  [virtual]

Set the Origin of the output so that image coordinate (0,0,0) lies at the Center of the data set. This will override SetOutputOrigin. This is often a useful operation to apply before using vtkImageReslice to apply a transformation to an image.

virtual void vtkImageChangeInformation::SetExtentTranslation ( int  ,
int  ,
int
) [virtual]

Apply a translation to the extent.

virtual void vtkImageChangeInformation::SetExtentTranslation ( int  [3]  )  [virtual]

Apply a translation to the extent.

virtual int* vtkImageChangeInformation::GetExtentTranslation (  )  [virtual]

Apply a translation to the extent.

virtual void vtkImageChangeInformation::GetExtentTranslation ( int &  ,
int &  ,
int &
) [virtual]

Apply a translation to the extent.

virtual void vtkImageChangeInformation::GetExtentTranslation ( int  [3]  )  [virtual]

Apply a translation to the extent.

virtual void vtkImageChangeInformation::SetSpacingScale ( double  ,
double  ,
double
) [virtual]

Apply a scale factor to the spacing.

virtual void vtkImageChangeInformation::SetSpacingScale ( double  [3]  )  [virtual]

Apply a scale factor to the spacing.

virtual double* vtkImageChangeInformation::GetSpacingScale (  )  [virtual]

Apply a scale factor to the spacing.

virtual void vtkImageChangeInformation::GetSpacingScale ( double &  ,
double &  ,
double &
) [virtual]

Apply a scale factor to the spacing.

virtual void vtkImageChangeInformation::GetSpacingScale ( double  [3]  )  [virtual]

Apply a scale factor to the spacing.

virtual void vtkImageChangeInformation::SetOriginTranslation ( double  ,
double  ,
double
) [virtual]

Apply a translation to the origin.

virtual void vtkImageChangeInformation::SetOriginTranslation ( double  [3]  )  [virtual]

Apply a translation to the origin.

virtual double* vtkImageChangeInformation::GetOriginTranslation (  )  [virtual]

Apply a translation to the origin.

virtual void vtkImageChangeInformation::GetOriginTranslation ( double &  ,
double &  ,
double &
) [virtual]

Apply a translation to the origin.

virtual void vtkImageChangeInformation::GetOriginTranslation ( double  [3]  )  [virtual]

Apply a translation to the origin.

virtual void vtkImageChangeInformation::SetOriginScale ( double  ,
double  ,
double
) [virtual]

Apply a scale to the origin. The scale is applied before the translation.

virtual void vtkImageChangeInformation::SetOriginScale ( double  [3]  )  [virtual]

Apply a scale to the origin. The scale is applied before the translation.

virtual double* vtkImageChangeInformation::GetOriginScale (  )  [virtual]

Apply a scale to the origin. The scale is applied before the translation.

virtual void vtkImageChangeInformation::GetOriginScale ( double &  ,
double &  ,
double &
) [virtual]

Apply a scale to the origin. The scale is applied before the translation.

virtual void vtkImageChangeInformation::GetOriginScale ( double  [3]  )  [virtual]

Apply a scale to the origin. The scale is applied before the translation.

virtual int vtkImageChangeInformation::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageChangeInformation::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageChangeInformation::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageChangeInformation::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

Definition at line 111 of file vtkImageChangeInformation.h.

Definition at line 113 of file vtkImageChangeInformation.h.

Definition at line 114 of file vtkImageChangeInformation.h.

Definition at line 115 of file vtkImageChangeInformation.h.

Definition at line 117 of file vtkImageChangeInformation.h.

Definition at line 118 of file vtkImageChangeInformation.h.

Definition at line 120 of file vtkImageChangeInformation.h.

Definition at line 121 of file vtkImageChangeInformation.h.

Definition at line 122 of file vtkImageChangeInformation.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:29:08 2008 for VTK by  doxygen 1.5.6
