vtkImageDilateErode3D Class Reference

#include <vtkImageDilateErode3D.h>

Inheritance diagram for vtkImageDilateErode3D:

Inheritance graph
[legend]

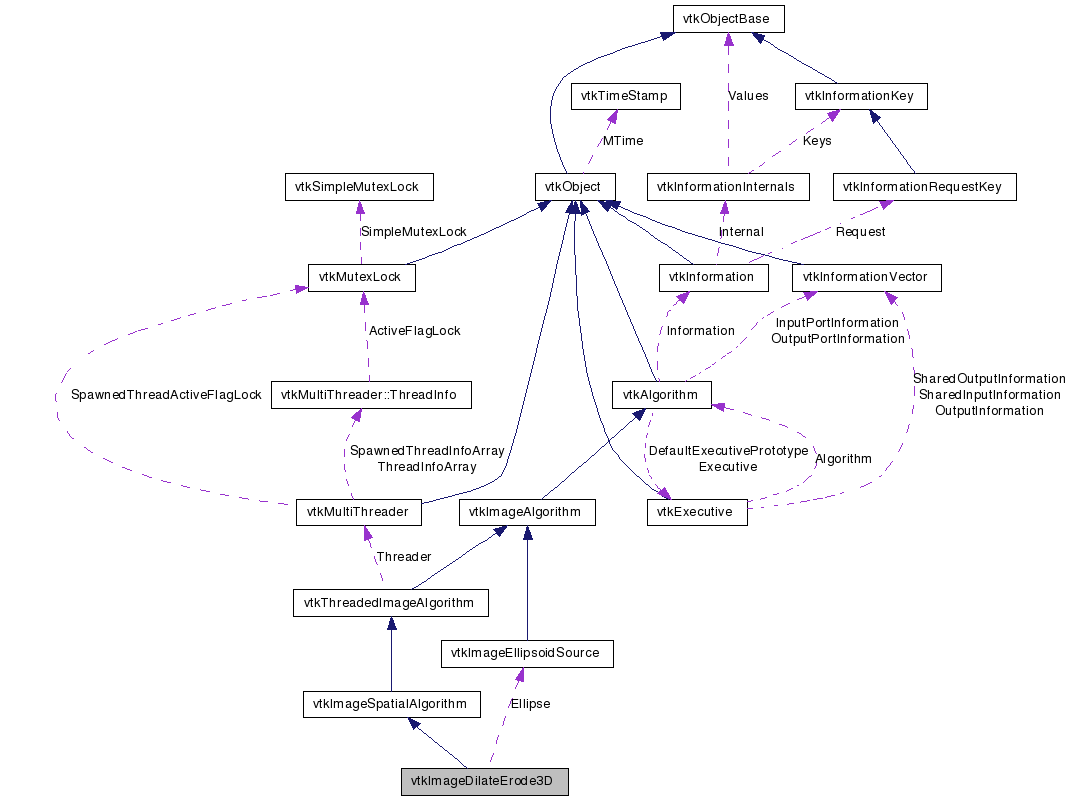

Collaboration diagram for vtkImageDilateErode3D:

Collaboration graph
[legend]

List of all members.


Detailed Description

Dilates one value and erodes another.

vtkImageDilateErode3D will dilate one value and erode another. It uses an elliptical foot print, and only erodes/dilates on the boundary of the two values. The filter is restricted to the X, Y, and Z axes for now. It can degenerate to a 2 or 1 dimensional filter by setting the kernel size to 1 for a specific axis.

Definition at line 33 of file vtkImageDilateErode3D.h.

typedef vtkImageSpatialAlgorithm Superclass
static vtkImageDilateErode3DNew ()
static int IsTypeOf (const char *type)
static vtkImageDilateErode3DSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

void SetKernelSize (int size0, int size1, int size2)
virtual void SetDilateValue (double)
virtual double GetDilateValue ()
virtual void SetErodeValue (double)
virtual double GetErodeValue ()

Protected Member Functions

 vtkImageDilateErode3D ()
 ~vtkImageDilateErode3D ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int id)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkImageEllipsoidSourceEllipse
double DilateValue
double ErodeValue

Member Typedef Documentation

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

Definition at line 40 of file vtkImageDilateErode3D.h.


Constructor & Destructor Documentation

vtkImageDilateErode3D::vtkImageDilateErode3D (  )  [protected]

vtkImageDilateErode3D::~vtkImageDilateErode3D (  )  [protected]


Member Function Documentation

static vtkImageDilateErode3D* vtkImageDilateErode3D::New (  )  [static]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

virtual const char* vtkImageDilateErode3D::GetClassName (  )  [virtual]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

static int vtkImageDilateErode3D::IsTypeOf ( const char *  type  )  [static]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

virtual int vtkImageDilateErode3D::IsA ( const char *  type  )  [virtual]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

static vtkImageDilateErode3D* vtkImageDilateErode3D::SafeDownCast ( vtkObject o  )  [static]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageDilateErode3D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Construct an instance of vtkImageDilateErode3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageDilateErode3D::SetKernelSize ( int  size0,
int  size1,
int  size2
)

This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the elliptical foot print.

virtual void vtkImageDilateErode3D::SetDilateValue ( double   )  [virtual]

Set/Get the Dilate and Erode values to be used by this filter.

virtual double vtkImageDilateErode3D::GetDilateValue (  )  [virtual]

Set/Get the Dilate and Erode values to be used by this filter.

virtual void vtkImageDilateErode3D::SetErodeValue ( double   )  [virtual]

Set/Get the Dilate and Erode values to be used by this filter.

virtual double vtkImageDilateErode3D::GetErodeValue (  )  [virtual]

Set/Get the Dilate and Erode values to be used by this filter.

void vtkImageDilateErode3D::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageDilateErode3D::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

Definition at line 62 of file vtkImageDilateErode3D.h.

Definition at line 63 of file vtkImageDilateErode3D.h.

Definition at line 64 of file vtkImageDilateErode3D.h.


The documentation for this class was generated from the following file:
