vtkImageExtractComponents Class Reference

#include <vtkImageExtractComponents.h>

Inheritance diagram for vtkImageExtractComponents:

Inheritance graph
[legend]

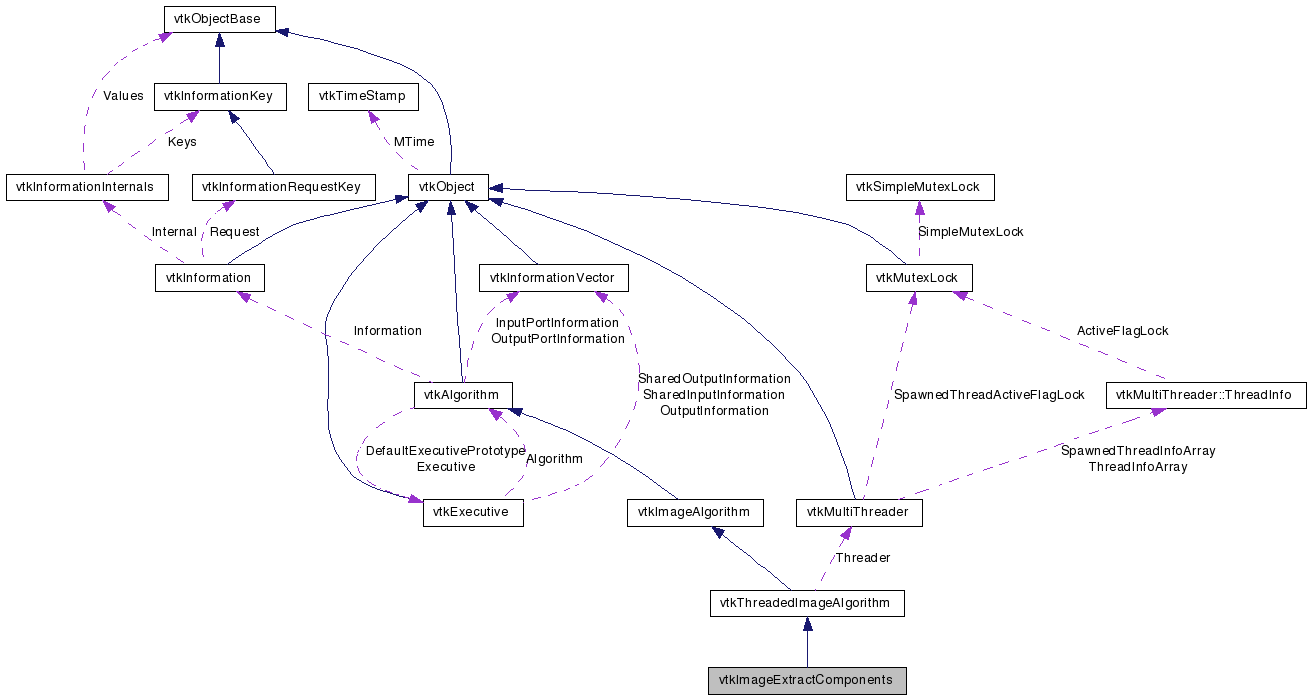

Collaboration diagram for vtkImageExtractComponents:

Collaboration graph
[legend]

List of all members.


Detailed Description

Outputs a single component.

vtkImageExtractComponents takes an input with any number of components and outputs some of them. It does involve a copy of the data.

See also:
vtkImageAppendComponents
Tests:
vtkImageExtractComponents (Tests)

Definition at line 34 of file vtkImageExtractComponents.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetComponents (int c1)
void SetComponents (int c1, int c2)
void SetComponents (int c1, int c2, int c3)
virtual int * GetComponents ()
virtual void GetComponents (int &, int &, int &)
virtual void GetComponents (int[3])
virtual int GetNumberOfComponents ()

Static Public Member Functions

static vtkImageExtractComponentsNew ()
static int IsTypeOf (const char *type)
static vtkImageExtractComponentsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageExtractComponents ()
 ~vtkImageExtractComponents ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)

Protected Attributes

int NumberOfComponents
int Components [3]

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 38 of file vtkImageExtractComponents.h.


Constructor & Destructor Documentation

vtkImageExtractComponents::vtkImageExtractComponents (  )  [protected]

vtkImageExtractComponents::~vtkImageExtractComponents (  )  [inline, protected]

Definition at line 57 of file vtkImageExtractComponents.h.


Member Function Documentation

static vtkImageExtractComponents* vtkImageExtractComponents::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageExtractComponents::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageExtractComponents::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageExtractComponents::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageExtractComponents* vtkImageExtractComponents::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageExtractComponents::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageExtractComponents::SetComponents ( int  c1  )

Set/Get the components to extract.

void vtkImageExtractComponents::SetComponents ( int  c1,
int  c2
)

Set/Get the components to extract.

void vtkImageExtractComponents::SetComponents ( int  c1,
int  c2,
int  c3
)

Set/Get the components to extract.

virtual int* vtkImageExtractComponents::GetComponents (  )  [virtual]

Set/Get the components to extract.

virtual void vtkImageExtractComponents::GetComponents ( int &  ,
int &  ,
int &
) [virtual]

Set/Get the components to extract.

virtual void vtkImageExtractComponents::GetComponents ( int  [3]  )  [virtual]

Set/Get the components to extract.

virtual int vtkImageExtractComponents::GetNumberOfComponents (  )  [virtual]

Get the number of components to extract. This is set implicitly by the SetComponents() method.

virtual int vtkImageExtractComponents::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

void vtkImageExtractComponents::ThreadedExecute ( vtkImageData inData,
vtkImageData outData,
int  ext[6],
int  id
) [protected, virtual]

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

Definition at line 57 of file vtkImageExtractComponents.h.

Definition at line 60 of file vtkImageExtractComponents.h.


The documentation for this class was generated from the following file:
