vtkImageOrthoPlanes Class Reference

#include <vtkImageOrthoPlanes.h>

Inheritance diagram for vtkImageOrthoPlanes:

Inheritance graph
[legend]

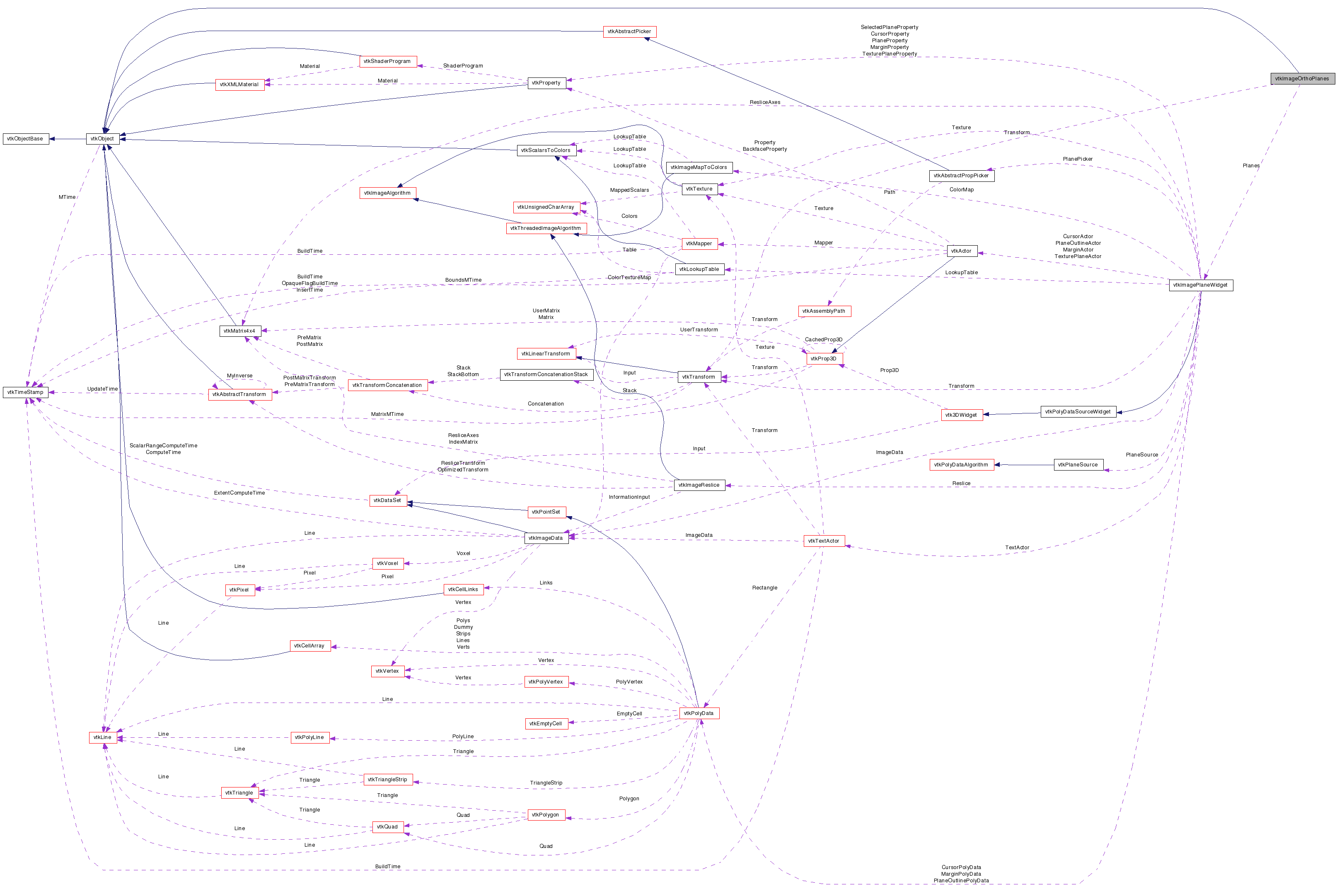

Collaboration diagram for vtkImageOrthoPlanes:

Collaboration graph
[legend]

List of all members.


Detailed Description

Connect three vtkImagePlaneWidgets together.

vtkImageOrthoPlanes is an event observer class that listens to the events from three vtkImagePlaneWidgets and keeps their orientations and scales synchronized.

See also:
vtkImagePlaneWidget
Thanks:
Thanks to Atamai Inc. for developing and contributing this class.
Tests:
vtkImageOrthoPlanes (Tests)

Definition at line 39 of file vtkImageOrthoPlanes.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ResetPlanes ()
vtkTransformGetTransform ()
void HandlePlaneEvent (vtkImagePlaneWidget *imagePlaneWidget)
void SetPlane (int i, vtkImagePlaneWidget *imagePlaneWidget)
vtkImagePlaneWidgetGetPlane (int i)

Static Public Member Functions

static vtkImageOrthoPlanesNew ()
static int IsTypeOf (const char *type)
static vtkImageOrthoPlanesSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageOrthoPlanes ()
 ~vtkImageOrthoPlanes ()
void HandlePlaneRotation (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void HandlePlanePush (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void HandlePlaneTranslate (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void HandlePlaneScale (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void SetTransformMatrix (vtkMatrix4x4 *matrix, vtkImagePlaneWidget *currentImagePlane, int indexOfModifiedPlane)
void GetBounds (double bounds[3])

Protected Attributes

double Origin [3][3]
double Point1 [3][3]
double Point2 [3][3]
vtkTransformTransform
vtkImagePlaneWidget ** Planes
int NumberOfPlanes
long * ObserverTags

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 43 of file vtkImageOrthoPlanes.h.


Constructor & Destructor Documentation

vtkImageOrthoPlanes::vtkImageOrthoPlanes (  )  [protected]

vtkImageOrthoPlanes::~vtkImageOrthoPlanes (  )  [protected]


Member Function Documentation

static vtkImageOrthoPlanes* vtkImageOrthoPlanes::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageOrthoPlanes::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkImageOrthoPlanes::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkImageOrthoPlanes::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkImageOrthoPlanes* vtkImageOrthoPlanes::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkImageOrthoPlanes::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkImageOrthoPlanes::SetPlane ( int  i,
vtkImagePlaneWidget imagePlaneWidget
)

You must set three planes for the widget.

vtkImagePlaneWidget* vtkImageOrthoPlanes::GetPlane ( int  i  )

You must set three planes for the widget.

void vtkImageOrthoPlanes::ResetPlanes (  )

Reset the planes to original scale, rotation, and location.

vtkTransform* vtkImageOrthoPlanes::GetTransform (  )  [inline]

Get the transform for the planes.

Definition at line 56 of file vtkImageOrthoPlanes.h.

void vtkImageOrthoPlanes::HandlePlaneEvent ( vtkImagePlaneWidget imagePlaneWidget  )

A public method to be used only by the event callback.

void vtkImageOrthoPlanes::HandlePlaneRotation ( vtkImagePlaneWidget imagePlaneWidget,
int  indexOfModifiedPlane
) [protected]

void vtkImageOrthoPlanes::HandlePlanePush ( vtkImagePlaneWidget imagePlaneWidget,
int  indexOfModifiedPlane
) [protected]

void vtkImageOrthoPlanes::HandlePlaneTranslate ( vtkImagePlaneWidget imagePlaneWidget,
int  indexOfModifiedPlane
) [protected]

void vtkImageOrthoPlanes::HandlePlaneScale ( vtkImagePlaneWidget imagePlaneWidget,
int  indexOfModifiedPlane
) [protected]

void vtkImageOrthoPlanes::SetTransformMatrix ( vtkMatrix4x4 matrix,
vtkImagePlaneWidget currentImagePlane,
int  indexOfModifiedPlane
) [protected]

void vtkImageOrthoPlanes::GetBounds ( double  bounds[3]  )  [protected]


Member Data Documentation

double vtkImageOrthoPlanes::Origin[3][3] [protected]

Definition at line 81 of file vtkImageOrthoPlanes.h.

double vtkImageOrthoPlanes::Point1[3][3] [protected]

Definition at line 82 of file vtkImageOrthoPlanes.h.

double vtkImageOrthoPlanes::Point2[3][3] [protected]

Definition at line 83 of file vtkImageOrthoPlanes.h.

Definition at line 87 of file vtkImageOrthoPlanes.h.

Definition at line 90 of file vtkImageOrthoPlanes.h.

Definition at line 93 of file vtkImageOrthoPlanes.h.

Definition at line 96 of file vtkImageOrthoPlanes.h.


The documentation for this class was generated from the following file:
