vtkImplicitPlaneRepresentation Class Reference

#include <vtkImplicitPlaneRepresentation.h>

Inheritance diagram for vtkImplicitPlaneRepresentation:

Inheritance graph
[legend]

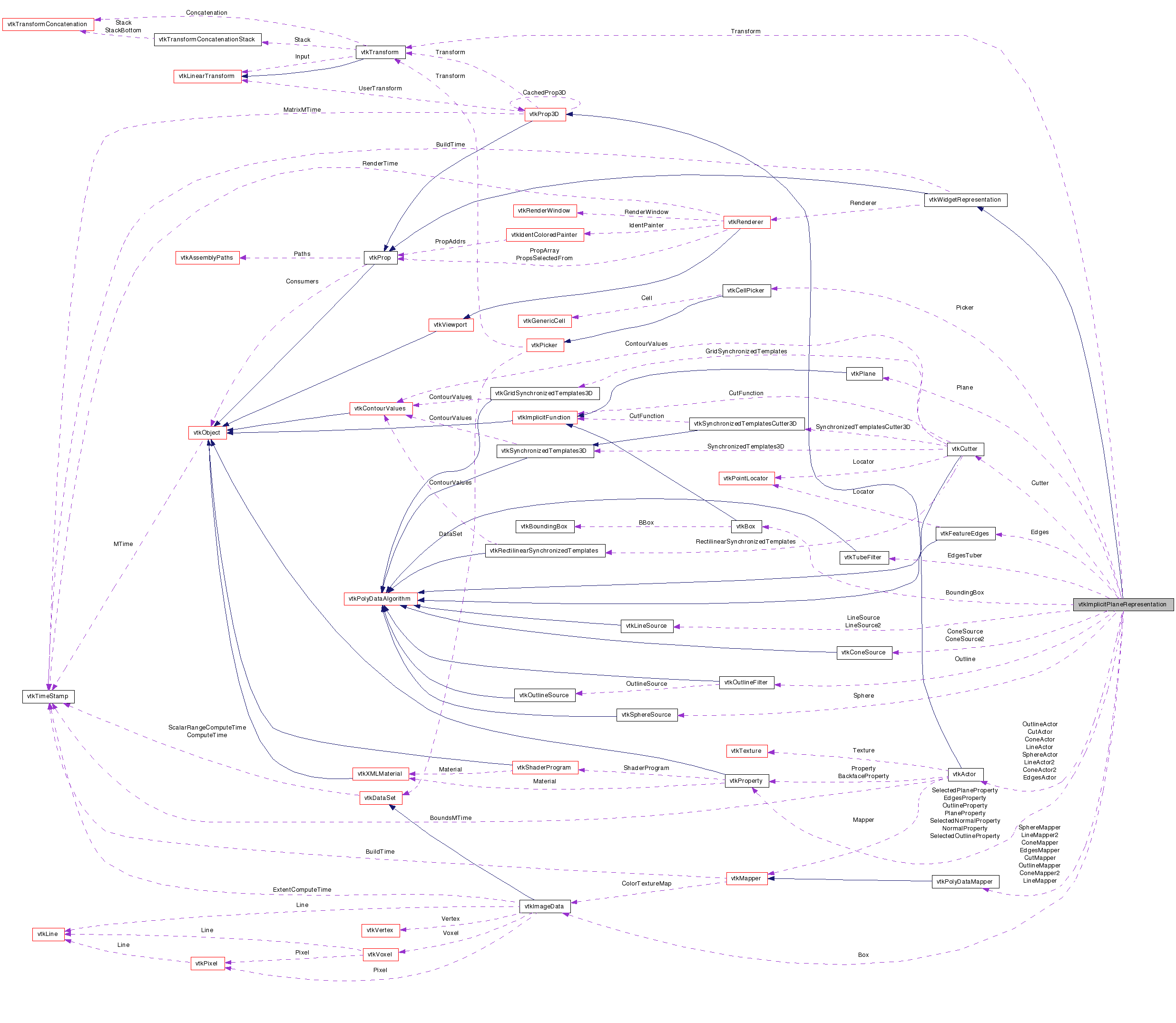

Collaboration diagram for vtkImplicitPlaneRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

a class defining the representation for a vtkImplicitPlaneWidget2

This class is a concrete representation for the vtkImplicitPlaneWidget2. It represents an infinite plane defined by a normal and point in the context of a bounding box. Through interaction with the widget, the plane can be manipulated by adjusting the plane normal or moving the origin point.

To use this representation, you normally define a (plane) origin and (plane) normal. The PlaceWidget() method is also used to intially position the representation.

Warning:
This class, and vtkImplicitPlaneWidget2, are next generation VTK widgets. An earlier version of this functionality was defined in the class vtkImplicitPlaneWidget.
See also:
vtkImplicitPlaneWidget2 vtkImplicitPlaneWidget
Tests:
vtkImplicitPlaneRepresentation (Tests)

Definition at line 63 of file vtkImplicitPlaneRepresentation.h.

typedef vtkWidgetRepresentation Superclass
static int IsTypeOf (const char *type)
static
vtkImplicitPlaneRepresentation
SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Types

enum  _InteractionState {
  Outside = 0, Moving, MovingOutline, MovingOrigin,
  Rotating, Pushing, MovingPlane, Scaling
}

Public Member Functions

void GetPolyData (vtkPolyData *pd)
vtkPolyDataAlgorithmGetPolyDataAlgorithm ()
void GetPlane (vtkPlane *plane)
void UpdatePlacement (void)
void SetOrigin (double x, double y, double z)
void SetOrigin (double x[3])
double * GetOrigin ()
void GetOrigin (double xyz[3])
void SetNormal (double x, double y, double z)
void SetNormal (double x[3])
double * GetNormal ()
void GetNormal (double xyz[3])
void SetNormalToXAxis (int)
virtual int GetNormalToXAxis ()
virtual void NormalToXAxisOn ()
virtual void NormalToXAxisOff ()
void SetNormalToYAxis (int)
virtual int GetNormalToYAxis ()
virtual void NormalToYAxisOn ()
virtual void NormalToYAxisOff ()
void SetNormalToZAxis (int)
virtual int GetNormalToZAxis ()
virtual void NormalToZAxisOn ()
virtual void NormalToZAxisOff ()
virtual void SetTubing (int)
virtual int GetTubing ()
virtual void TubingOn ()
virtual void TubingOff ()
void SetDrawPlane (int plane)
virtual int GetDrawPlane ()
virtual void DrawPlaneOn ()
virtual void DrawPlaneOff ()
virtual void SetOutlineTranslation (int)
virtual int GetOutlineTranslation ()
virtual void OutlineTranslationOn ()
virtual void OutlineTranslationOff ()
virtual void SetOutsideBounds (int)
virtual int GetOutsideBounds ()
virtual void OutsideBoundsOn ()
virtual void OutsideBoundsOff ()
virtual void SetScaleEnabled (int)
virtual int GetScaleEnabled ()
virtual void ScaleEnabledOn ()
virtual void ScaleEnabledOff ()
virtual vtkPropertyGetNormalProperty ()
virtual vtkPropertyGetSelectedNormalProperty ()
virtual vtkPropertyGetPlaneProperty ()
virtual vtkPropertyGetSelectedPlaneProperty ()
virtual vtkPropertyGetOutlineProperty ()
virtual vtkPropertyGetSelectedOutlineProperty ()
virtual vtkPropertyGetEdgesProperty ()
virtual int ComputeInteractionState (int X, int Y, int modify=0)
virtual void PlaceWidget (double bounds[6])
virtual void BuildRepresentation ()
virtual void StartWidgetInteraction (double eventPos[2])
virtual void WidgetInteraction (double newEventPos[2])
virtual void EndWidgetInteraction (double newEventPos[2])
virtual double * GetBounds ()
virtual void ReleaseGraphicsResources (vtkWindow *)
virtual int RenderOpaqueGeometry (vtkViewport *)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int HasTranslucentPolygonalGeometry ()
virtual void SetInteractionState (int)
virtual void SetRepresentationState (int)
virtual int GetRepresentationState ()

Static Public Member Functions

static
vtkImplicitPlaneRepresentation
New ()

Protected Member Functions

 vtkImplicitPlaneRepresentation ()
 ~vtkImplicitPlaneRepresentation ()
void HighlightOutline (int highlight)
void HighlightPlane (int highlight)
void HighlightNormal (int highlight)
void ConstrainOrigin (double x[3])
void Rotate (double X, double Y, double *p1, double *p2, double *vpn)
void TranslatePlane (double *p1, double *p2)
void TranslateOutline (double *p1, double *p2)
void TranslateOrigin (double *p1, double *p2)
void Push (double *p1, double *p2)
void Scale (double *p1, double *p2, double X, double Y)
void SizeHandles ()
void CreateDefaultProperties ()
void GeneratePlane ()

Protected Attributes

int RepresentationState
double LastEventPosition [3]
int NormalToXAxis
int NormalToYAxis
int NormalToZAxis
vtkPlanePlane
vtkImageDataBox
vtkOutlineFilterOutline
vtkPolyDataMapperOutlineMapper
vtkActorOutlineActor
int OutlineTranslation
int ScaleEnabled
int OutsideBounds
vtkCutterCutter
vtkPolyDataMapperCutMapper
vtkActorCutActor
int DrawPlane
vtkFeatureEdgesEdges
vtkTubeFilterEdgesTuber
vtkPolyDataMapperEdgesMapper
vtkActorEdgesActor
int Tubing
vtkConeSourceConeSource
vtkPolyDataMapperConeMapper
vtkActorConeActor
vtkLineSourceLineSource
vtkPolyDataMapperLineMapper
vtkActorLineActor
vtkConeSourceConeSource2
vtkPolyDataMapperConeMapper2
vtkActorConeActor2
vtkLineSourceLineSource2
vtkPolyDataMapperLineMapper2
vtkActorLineActor2
vtkSphereSourceSphere
vtkPolyDataMapperSphereMapper
vtkActorSphereActor
vtkCellPickerPicker
vtkTransformTransform
vtkPropertyNormalProperty
vtkPropertySelectedNormalProperty
vtkPropertyPlaneProperty
vtkPropertySelectedPlaneProperty
vtkPropertyOutlineProperty
vtkPropertySelectedOutlineProperty
vtkPropertyEdgesProperty
vtkBoxBoundingBox

Member Typedef Documentation

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

Definition at line 71 of file vtkImplicitPlaneRepresentation.h.


Member Enumeration Documentation

Enumerator:
Outside
Moving
MovingOutline
MovingOrigin
Rotating
Pushing
MovingPlane
Scaling

Definition at line 212 of file vtkImplicitPlaneRepresentation.h.


Constructor & Destructor Documentation

vtkImplicitPlaneRepresentation::vtkImplicitPlaneRepresentation (  )  [protected]

vtkImplicitPlaneRepresentation::~vtkImplicitPlaneRepresentation (  )  [protected]


Member Function Documentation

static vtkImplicitPlaneRepresentation* vtkImplicitPlaneRepresentation::New (  )  [static]

Instantiate the class.

Reimplemented from vtkObject.

virtual const char* vtkImplicitPlaneRepresentation::GetClassName (  )  [virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static int vtkImplicitPlaneRepresentation::IsTypeOf ( const char *  type  )  [static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkImplicitPlaneRepresentation::IsA ( const char *  type  )  [virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static vtkImplicitPlaneRepresentation* vtkImplicitPlaneRepresentation::SafeDownCast ( vtkObject o  )  [static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkImplicitPlaneRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkImplicitPlaneRepresentation::SetOrigin ( double  x,
double  y,
double  z
)

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::SetOrigin ( double  x[3]  )

Get the origin of the plane.

double* vtkImplicitPlaneRepresentation::GetOrigin (  )

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::GetOrigin ( double  xyz[3]  )

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::SetNormal ( double  x,
double  y,
double  z
)

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::SetNormal ( double  x[3]  )

Get the normal to the plane.

double* vtkImplicitPlaneRepresentation::GetNormal (  )

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::GetNormal ( double  xyz[3]  )

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::SetNormalToXAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToXAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToXAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToXAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneRepresentation::SetNormalToYAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToYAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToYAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToYAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneRepresentation::SetNormalToZAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToZAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToZAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToZAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::SetTubing ( int   )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual int vtkImplicitPlaneRepresentation::GetTubing (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneRepresentation::TubingOn (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneRepresentation::TubingOff (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

void vtkImplicitPlaneRepresentation::SetDrawPlane ( int  plane  )

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual int vtkImplicitPlaneRepresentation::GetDrawPlane (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::DrawPlaneOn (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::DrawPlaneOff (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::SetOutlineTranslation ( int   )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual int vtkImplicitPlaneRepresentation::GetOutlineTranslation (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::OutlineTranslationOn (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::OutlineTranslationOff (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::SetOutsideBounds ( int   )  [virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual int vtkImplicitPlaneRepresentation::GetOutsideBounds (  )  [virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::OutsideBoundsOn (  )  [virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::OutsideBoundsOff (  )  [virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::SetScaleEnabled ( int   )  [virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual int vtkImplicitPlaneRepresentation::GetScaleEnabled (  )  [virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual void vtkImplicitPlaneRepresentation::ScaleEnabledOn (  )  [virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual void vtkImplicitPlaneRepresentation::ScaleEnabledOff (  )  [virtual]

Turn on/off the ability to scale the widget with the mouse.

void vtkImplicitPlaneRepresentation::GetPolyData ( vtkPolyData pd  )

Grab the polydata that defines the plane. The polydata contains a single polygon that is clipped by the bounding box.

vtkPolyDataAlgorithm* vtkImplicitPlaneRepresentation::GetPolyDataAlgorithm (  )

Satisfies superclass API. This returns a pointer to the underlying PolyData (which represents the plane).

void vtkImplicitPlaneRepresentation::GetPlane ( vtkPlane plane  )

Get the implicit function for the plane. The user must provide the instance of the class vtkPlane. Note that vtkPlane is a subclass of vtkImplicitFunction, meaning that it can be used by a variety of filters to perform clipping, cutting, and selection of data.

void vtkImplicitPlaneRepresentation::UpdatePlacement ( void   )

Satisfies the superclass API. This will change the state of the widget to match changes that have been made to the underlying PolyDataSource

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetNormalProperty (  )  [virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedNormalProperty (  )  [virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetPlaneProperty (  )  [virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedPlaneProperty (  )  [virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetOutlineProperty (  )  [virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedOutlineProperty (  )  [virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetEdgesProperty (  )  [virtual]

Get the property of the intersection edges. (This property also applies to the edges when tubed.)

virtual int vtkImplicitPlaneRepresentation::ComputeInteractionState ( int  X,
int  Y,
int  modify = 0
) [virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::PlaceWidget ( double  bounds[6]  )  [virtual]

Methods to interface with the vtkSliderWidget.

virtual void vtkImplicitPlaneRepresentation::BuildRepresentation (  )  [virtual]

Methods to interface with the vtkSliderWidget.

Implements vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::StartWidgetInteraction ( double  eventPos[2]  )  [virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::WidgetInteraction ( double  newEventPos[2]  )  [virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::EndWidgetInteraction ( double  newEventPos[2]  )  [virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual double* vtkImplicitPlaneRepresentation::GetBounds (  )  [virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkImplicitPlaneRepresentation::RenderOpaqueGeometry ( vtkViewport  )  [virtual]

Methods supporting the rendering process.

Reimplemented from vtkProp.

virtual int vtkImplicitPlaneRepresentation::RenderTranslucentPolygonalGeometry ( vtkViewport  )  [virtual]

Methods supporting the rendering process.

Reimplemented from vtkProp.

virtual int vtkImplicitPlaneRepresentation::HasTranslucentPolygonalGeometry (  )  [virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::SetInteractionState ( int   )  [virtual]

The interaction state may be set from a widget (e.g., vtkImplicitPlaneWidget2) or other object. This controls how the interaction with the widget proceeds. Normally this method is used as part of a handshaking process with the widget: First ComputeInteractionState() is invoked that returns a state based on geometric considerations (i.e., cursor near a widget feature), then based on events, the widget may modify this further.

virtual void vtkImplicitPlaneRepresentation::SetRepresentationState ( int   )  [virtual]

Sets the visual appearance of the representation based on the state it is in. This state is usually the same as InteractionState.

virtual int vtkImplicitPlaneRepresentation::GetRepresentationState (  )  [virtual]

Sets the visual appearance of the representation based on the state it is in. This state is usually the same as InteractionState.

void vtkImplicitPlaneRepresentation::HighlightOutline ( int  highlight  )  [protected]

void vtkImplicitPlaneRepresentation::HighlightPlane ( int  highlight  )  [protected]

void vtkImplicitPlaneRepresentation::HighlightNormal ( int  highlight  )  [protected]

void vtkImplicitPlaneRepresentation::ConstrainOrigin ( double  x[3]  )  [protected]

void vtkImplicitPlaneRepresentation::Rotate ( double  X,
double  Y,
double *  p1,
double *  p2,
double *  vpn
) [protected]

void vtkImplicitPlaneRepresentation::TranslatePlane ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneRepresentation::TranslateOutline ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneRepresentation::TranslateOrigin ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneRepresentation::Push ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneRepresentation::Scale ( double *  p1,
double *  p2,
double  X,
double  Y
) [protected]

void vtkImplicitPlaneRepresentation::SizeHandles (  )  [protected]

void vtkImplicitPlaneRepresentation::CreateDefaultProperties (  )  [protected]

void vtkImplicitPlaneRepresentation::GeneratePlane (  )  [protected]


Member Data Documentation

Definition at line 247 of file vtkImplicitPlaneRepresentation.h.

Definition at line 250 of file vtkImplicitPlaneRepresentation.h.

Definition at line 253 of file vtkImplicitPlaneRepresentation.h.

Definition at line 254 of file vtkImplicitPlaneRepresentation.h.

Definition at line 255 of file vtkImplicitPlaneRepresentation.h.

Definition at line 258 of file vtkImplicitPlaneRepresentation.h.

Definition at line 261 of file vtkImplicitPlaneRepresentation.h.

Definition at line 262 of file vtkImplicitPlaneRepresentation.h.

Definition at line 263 of file vtkImplicitPlaneRepresentation.h.

Definition at line 264 of file vtkImplicitPlaneRepresentation.h.

Definition at line 266 of file vtkImplicitPlaneRepresentation.h.

Definition at line 267 of file vtkImplicitPlaneRepresentation.h.

Definition at line 268 of file vtkImplicitPlaneRepresentation.h.

Definition at line 271 of file vtkImplicitPlaneRepresentation.h.

Definition at line 272 of file vtkImplicitPlaneRepresentation.h.

Definition at line 273 of file vtkImplicitPlaneRepresentation.h.

Definition at line 274 of file vtkImplicitPlaneRepresentation.h.

Definition at line 278 of file vtkImplicitPlaneRepresentation.h.

Definition at line 279 of file vtkImplicitPlaneRepresentation.h.

Definition at line 280 of file vtkImplicitPlaneRepresentation.h.

Definition at line 281 of file vtkImplicitPlaneRepresentation.h.

Definition at line 282 of file vtkImplicitPlaneRepresentation.h.

Definition at line 285 of file vtkImplicitPlaneRepresentation.h.

Definition at line 286 of file vtkImplicitPlaneRepresentation.h.

Definition at line 287 of file vtkImplicitPlaneRepresentation.h.

Definition at line 291 of file vtkImplicitPlaneRepresentation.h.

Definition at line 292 of file vtkImplicitPlaneRepresentation.h.

Definition at line 293 of file vtkImplicitPlaneRepresentation.h.

Definition at line 296 of file vtkImplicitPlaneRepresentation.h.

Definition at line 297 of file vtkImplicitPlaneRepresentation.h.

Definition at line 298 of file vtkImplicitPlaneRepresentation.h.

Definition at line 301 of file vtkImplicitPlaneRepresentation.h.

Definition at line 302 of file vtkImplicitPlaneRepresentation.h.

Definition at line 303 of file vtkImplicitPlaneRepresentation.h.

Definition at line 306 of file vtkImplicitPlaneRepresentation.h.

Definition at line 307 of file vtkImplicitPlaneRepresentation.h.

Definition at line 308 of file vtkImplicitPlaneRepresentation.h.

Definition at line 311 of file vtkImplicitPlaneRepresentation.h.

Definition at line 314 of file vtkImplicitPlaneRepresentation.h.

Definition at line 328 of file vtkImplicitPlaneRepresentation.h.

Definition at line 329 of file vtkImplicitPlaneRepresentation.h.

Definition at line 330 of file vtkImplicitPlaneRepresentation.h.

Definition at line 331 of file vtkImplicitPlaneRepresentation.h.

Definition at line 332 of file vtkImplicitPlaneRepresentation.h.

Definition at line 333 of file vtkImplicitPlaneRepresentation.h.

Definition at line 334 of file vtkImplicitPlaneRepresentation.h.

Definition at line 340 of file vtkImplicitPlaneRepresentation.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:32:18 2008 for VTK by  doxygen 1.5.6
