vtkMultiBlockMergeFilter Class Reference

#include <vtkMultiBlockMergeFilter.h>

Inheritance diagram for vtkMultiBlockMergeFilter:

Inheritance graph
[legend]

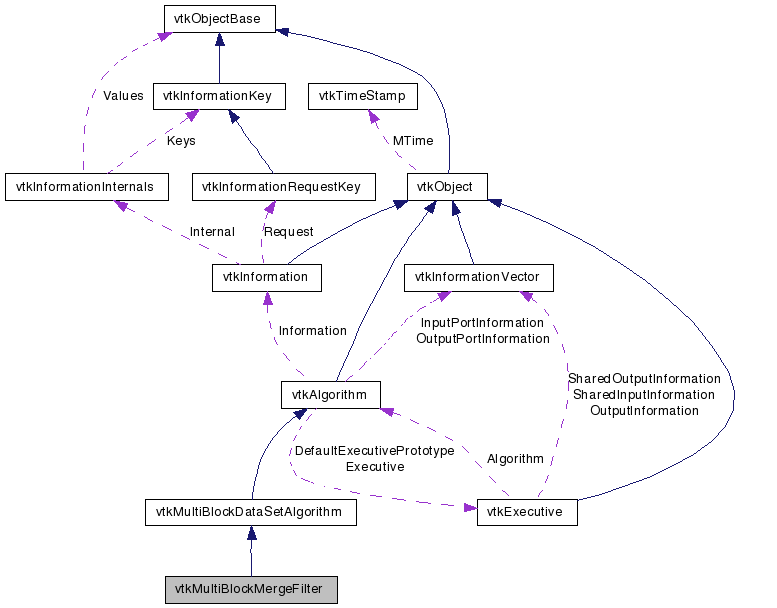

Collaboration diagram for vtkMultiBlockMergeFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

merges multiblock inputs into a single multiblock output

vtkMultiBlockMergeFilter is an M to 1 filter similar to vtkMultiBlockDataGroupFilter. However where as that class creates N groups in the output for N inputs, this creates 1 group in the output with N datasets inside it. In actuality if the inputs have M blocks, this will produce M blocks, each of which has N datasets. Inside the merged group, the i'th data set comes from the i'th data set in the i'th input.

Definition at line 31 of file vtkMultiBlockMergeFilter.h.


Public Types

typedef
vtkMultiBlockDataSetAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddInput (vtkDataObject *)
void AddInput (int, vtkDataObject *)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMultiBlockMergeFilterSafeDownCast (vtkObject *o)
static vtkMultiBlockMergeFilterNew ()

Protected Member Functions

 vtkMultiBlockMergeFilter ()
 ~vtkMultiBlockMergeFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
int IsMultiPiece (vtkMultiBlockDataSet *)
int Merge (unsigned int numPieces, unsigned int pieceNo, vtkMultiBlockDataSet *output, vtkMultiBlockDataSet *input)

Member Typedef Documentation

Reimplemented from vtkMultiBlockDataSetAlgorithm.

Definition at line 35 of file vtkMultiBlockMergeFilter.h.


Constructor & Destructor Documentation

vtkMultiBlockMergeFilter::vtkMultiBlockMergeFilter (  )  [protected]

vtkMultiBlockMergeFilter::~vtkMultiBlockMergeFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkMultiBlockMergeFilter::GetClassName (  )  [virtual]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static int vtkMultiBlockMergeFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkMultiBlockMergeFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkMultiBlockMergeFilter* vtkMultiBlockMergeFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkMultiBlockMergeFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkMultiBlockMergeFilter* vtkMultiBlockMergeFilter::New (  )  [static]

Construct object with PointIds and CellIds on; and ids being generated as scalars.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkMultiBlockMergeFilter::AddInput ( vtkDataObject  )

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

void vtkMultiBlockMergeFilter::AddInput ( int  ,
vtkDataObject
)

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

int vtkMultiBlockMergeFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkMultiBlockMergeFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

int vtkMultiBlockMergeFilter::IsMultiPiece ( vtkMultiBlockDataSet  )  [protected]

int vtkMultiBlockMergeFilter::Merge ( unsigned int  numPieces,
unsigned int  pieceNo,
vtkMultiBlockDataSet output,
vtkMultiBlockDataSet input
) [protected]


The documentation for this class was generated from the following file:
