vtkPOPReader Class Reference

#include <vtkPOPReader.h>

Inheritance diagram for vtkPOPReader:

[legend]

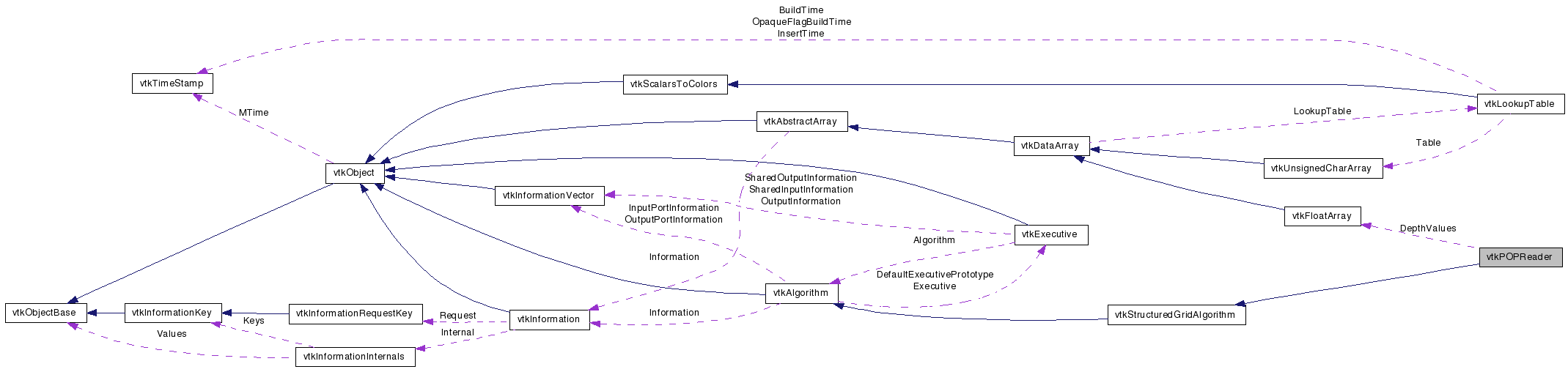

Collaboration diagram for vtkPOPReader:

[legend]

List of all members.

Detailed Description

read POP data files

vtkPOPReader Just converts from images to a structured grid for now.

Definition at line 30 of file vtkPOPReader.h.


Public Types
typedef vtkStructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual int *	GetDimensions ()
virtual void	GetDimensions (int &, int &)
virtual void	GetDimensions (int[2])

virtual char *	GetGridFileName ()

virtual char *	GetUFlowFileName ()
virtual char *	GetVFlowFileName ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual void	SetRadius (double)
virtual double	GetRadius ()

virtual void	SetClipExtent (int, int, int, int, int, int)
virtual void	SetClipExtent (int[6])
virtual int *	GetClipExtent ()
virtual void	GetClipExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetClipExtent (int[6])

virtual void	SetNumberOfGhostLevels (int)
virtual int	GetNumberOfGhostLevels ()
Static Public Member Functions
static vtkPOPReader *	New ()
static int	IsTypeOf (const char *type)
static vtkPOPReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPOPReader ()
	~vtkPOPReader ()
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	ReadInformationFile ()
vtkPoints *	ReadPoints (vtkImageData image, vtkInformation outInfo)
void	ReadFlow (vtkStructuredGrid output, vtkInformation outInfo)
vtkPoints *	GeneratePoints ()
virtual void	SetGridFileName (const char *)
void	SetGridName (char *name)
void	DeleteArrays ()
void	AddArray (char arrayName, char fileName, unsigned long offset)
void	AddArrayName (char arrayName, char fileName, unsigned long offset)
virtual void	SetUFlowFileName (const char *)
virtual void	SetVFlowFileName (const char *)
int	IsFileName (char *name)
char *	MakeFileName (char *name)
	vtkPOPReader (const vtkPOPReader &)
void	operator= (const vtkPOPReader &)
Protected Attributes
char *	FileName
int	Dimensions [2]
char *	GridFileName
double	Radius
vtkFloatArray *	DepthValues
int	NumberOfGhostLevels
int	NumberOfArrays
int	MaximumNumberOfArrays
char **	ArrayNames
char **	ArrayFileNames
unsigned long *	ArrayOffsets
int	ArrayFileDimensionality
char *	UFlowFileName
unsigned long	UFlowFileOffset
char *	VFlowFileName
unsigned long	VFlowFileOffset
int	ClipExtent [6]

Member Typedef Documentation

typedef vtkStructuredGridAlgorithm vtkPOPReader::Superclass

Reimplemented from vtkStructuredGridAlgorithm.

Definition at line 34 of file vtkPOPReader.h.

Constructor & Destructor Documentation

vtkPOPReader::vtkPOPReader ( ) [protected]

vtkPOPReader::~vtkPOPReader ( ) [protected]

vtkPOPReader::vtkPOPReader ( const vtkPOPReader & ) [protected]

Member Function Documentation

static vtkPOPReader* vtkPOPReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkStructuredGridAlgorithm.

virtual const char* vtkPOPReader::GetClassName ( ) [virtual]

Reimplemented from vtkStructuredGridAlgorithm.

static int vtkPOPReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridAlgorithm.

virtual int vtkPOPReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridAlgorithm.

static vtkPOPReader* vtkPOPReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkStructuredGridAlgorithm.

void vtkPOPReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStructuredGridAlgorithm.

virtual int* vtkPOPReader::GetDimensions ( ) [virtual]

This is the longitude and latitude dimensions of the structured grid.

virtual void vtkPOPReader::GetDimensions	(	int &	,
		int &
	)			`[virtual]`

This is the longitude and latitude dimensions of the structured grid.

virtual void vtkPOPReader::GetDimensions ( int [2] ) [virtual]

This is the longitude and latitude dimensions of the structured grid.

virtual char* vtkPOPReader::GetGridFileName ( ) [virtual]

This file contains the latitude and longitude of the grid. It must be double with no header.

virtual char* vtkPOPReader::GetUFlowFileName ( ) [virtual]

These files contains the u and v components of the flow.

virtual char* vtkPOPReader::GetVFlowFileName ( ) [virtual]

These files contains the u and v components of the flow.

virtual void vtkPOPReader::SetFileName ( const char * ) [virtual]

This file contains information about all the files.

virtual char* vtkPOPReader::GetFileName ( ) [virtual]

This file contains information about all the files.

virtual void vtkPOPReader::SetRadius ( double ) [virtual]

Radius of the earth.

virtual double vtkPOPReader::GetRadius ( ) [virtual]

Radius of the earth.

virtual void vtkPOPReader::SetClipExtent	(	int	,
		int	,
		int	,
		int	,
		int	,
		int
	)			`[virtual]`
