vtkPropPicker Class Reference

#include <vtkPropPicker.h>

Inheritance diagram for vtkPropPicker:

Inheritance graph
[legend]

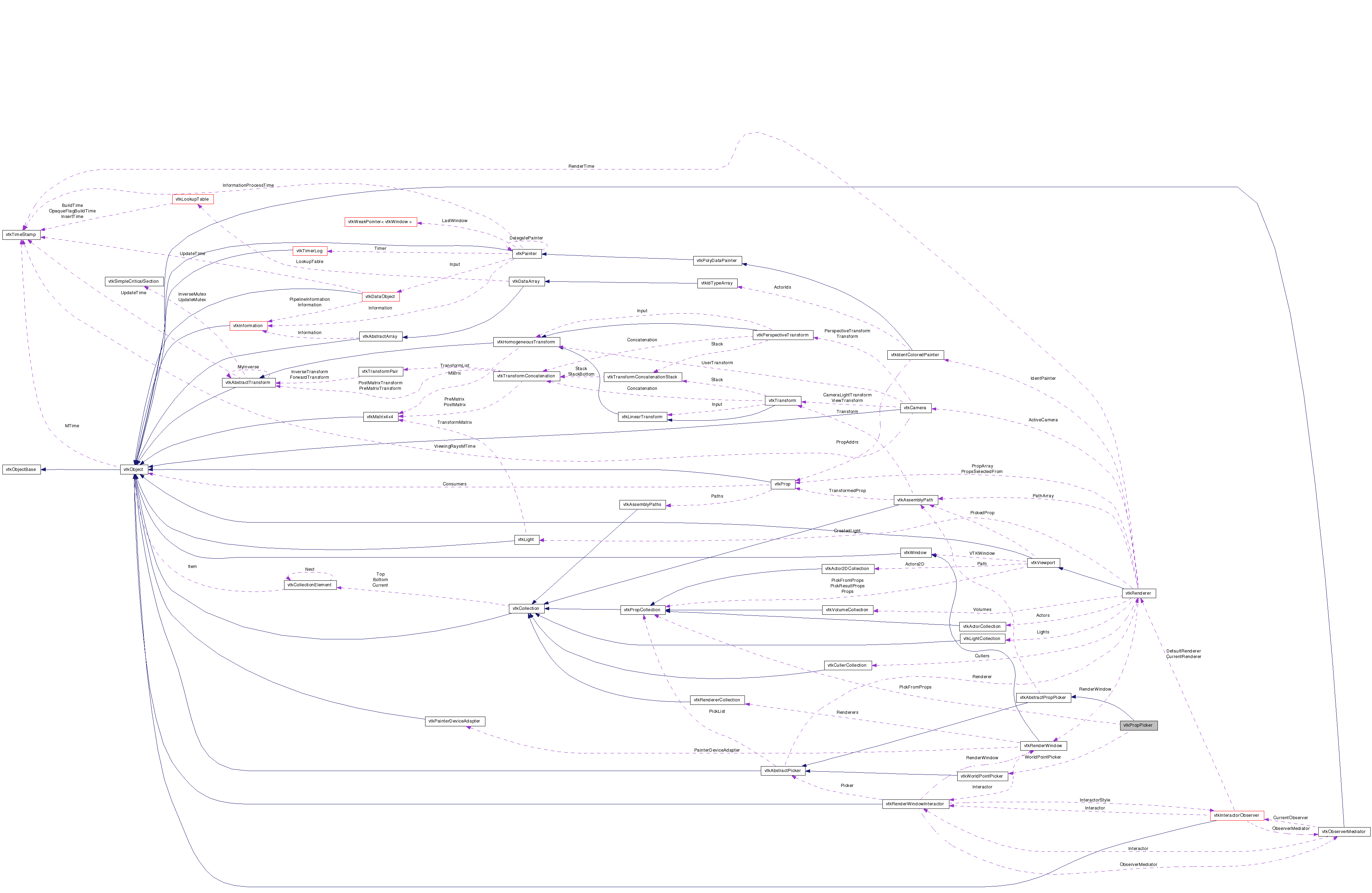

Collaboration diagram for vtkPropPicker:

Collaboration graph
[legend]

List of all members.


Detailed Description

pick an actor/prop using graphics hardware

vtkPropPicker is used to pick an actor/prop given a selection point (in display coordinates) and a renderer. This class uses graphics hardware/rendering system to pick rapidly (as compared to using ray casting as does vtkCellPicker and vtkPointPicker). This class determines the actor/prop and pick position in world coordinates; point and cell ids are not determined.

See also:
vtkPicker vtkWorldPointPicker vtkCellPicker vtkPointPicker
Events:
vtkCommand::PickEvent vtkCommand::EndPickEvent vtkCommand::StartPickEvent
Tests:
vtkPropPicker (Tests)

Definition at line 43 of file vtkPropPicker.h.


Public Types

typedef vtkAbstractPropPicker Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int PickProp (double selectionX, double selectionY, vtkRenderer *renderer)
int PickProp (double selectionX, double selectionY, vtkRenderer *renderer, vtkPropCollection *pickfrom)
int Pick (double selectionX, double selectionY, double selectionZ, vtkRenderer *renderer)
int Pick (double selectionPt[3], vtkRenderer *renderer)

Static Public Member Functions

static vtkPropPickerNew ()
static int IsTypeOf (const char *type)
static vtkPropPickerSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPropPicker ()
 ~vtkPropPicker ()
void Initialize ()

Protected Attributes

vtkPropCollectionPickFromProps
vtkWorldPointPickerWorldPointPicker

Member Typedef Documentation

Reimplemented from vtkAbstractPropPicker.

Definition at line 48 of file vtkPropPicker.h.


Constructor & Destructor Documentation

vtkPropPicker::vtkPropPicker (  )  [protected]

vtkPropPicker::~vtkPropPicker (  )  [protected]


Member Function Documentation

static vtkPropPicker* vtkPropPicker::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPropPicker::GetClassName (  )  [virtual]

Reimplemented from vtkAbstractPropPicker.

static int vtkPropPicker::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPropPicker.

virtual int vtkPropPicker::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPropPicker.

static vtkPropPicker* vtkPropPicker::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAbstractPropPicker.

void vtkPropPicker::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractPropPicker.

int vtkPropPicker::PickProp ( double  selectionX,
double  selectionY,
vtkRenderer renderer
)

Perform the pick and set the PickedProp ivar. If something is picked, a 1 is returned, otherwise 0 is returned. Use the GetViewProp() method to get the instance of vtkProp that was picked. Props are picked from the renderers list of pickable Props.

int vtkPropPicker::PickProp ( double  selectionX,
double  selectionY,
vtkRenderer renderer,
vtkPropCollection pickfrom
)

Perform a pick from the user-provided list of vtkProps and not from the list of vtkProps that the render maintains.

int vtkPropPicker::Pick ( double  selectionX,
double  selectionY,
double  selectionZ,
vtkRenderer renderer
) [virtual]

Overide superclasses' Pick() method.

Implements vtkAbstractPicker.

int vtkPropPicker::Pick ( double  selectionPt[3],
vtkRenderer renderer
) [inline]

Overide superclasses' Pick() method.

Reimplemented from vtkAbstractPicker.

Definition at line 68 of file vtkPropPicker.h.

void vtkPropPicker::Initialize (  )  [protected, virtual]

Reimplemented from vtkAbstractPropPicker.


Member Data Documentation

Definition at line 79 of file vtkPropPicker.h.

Definition at line 82 of file vtkPropPicker.h.


The documentation for this class was generated from the following file:
