vtkQtListView Class Reference

#include <vtkQtListView.h>

Inheritance diagram for vtkQtListView:

Inheritance graph
[legend]

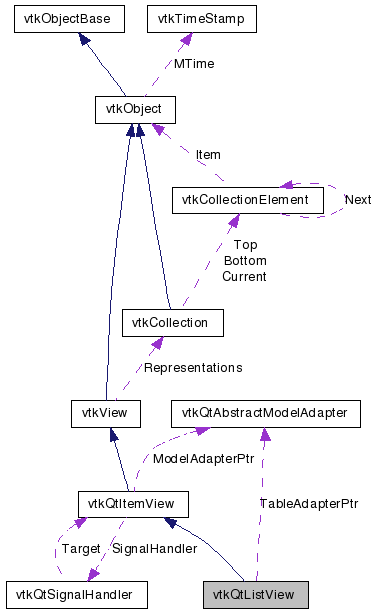

Collaboration diagram for vtkQtListView:

Collaboration graph
[legend]

List of all members.


Detailed Description

A VTK view based on a Qt list view.

vtkQtListView is a VTK view containing an underlying QListView.

Thanks:
Thanks to Brian Wylie from Sandia National Laboratories for implementing this class

Definition at line 42 of file vtkQtListView.h.


Public Types

typedef vtkQtItemView Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetItemView (QAbstractItemView *)
virtual void SetItemModelAdapter (vtkQtAbstractModelAdapter *qma)

Static Public Member Functions

static vtkQtListViewNew ()
static int IsTypeOf (const char *type)
static vtkQtListViewSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkQtListView ()
 ~vtkQtListView ()

Member Typedef Documentation

Reimplemented from vtkQtItemView.

Definition at line 46 of file vtkQtListView.h.


Constructor & Destructor Documentation

vtkQtListView::vtkQtListView (  )  [protected]

vtkQtListView::~vtkQtListView (  )  [protected]


Member Function Documentation

static vtkQtListView* vtkQtListView::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkQtItemView.

virtual const char* vtkQtListView::GetClassName (  )  [virtual]

Reimplemented from vtkQtItemView.

static int vtkQtListView::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtItemView.

virtual int vtkQtListView::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtItemView.

static vtkQtListView* vtkQtListView::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkQtItemView.

void vtkQtListView::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtItemView.

virtual void vtkQtListView::SetItemView ( QAbstractItemView *   )  [virtual]

Set the underlying Qt view.

Reimplemented from vtkQtItemView.

virtual void vtkQtListView::SetItemModelAdapter ( vtkQtAbstractModelAdapter qma  )  [virtual]

Set the underlying Qt model adapter.

Reimplemented from vtkQtItemView.


The documentation for this class was generated from the following file:
