vtkSelectPolyData Class Reference

#include <vtkSelectPolyData.h>

Inheritance diagram for vtkSelectPolyData:

Inheritance graph
[legend]

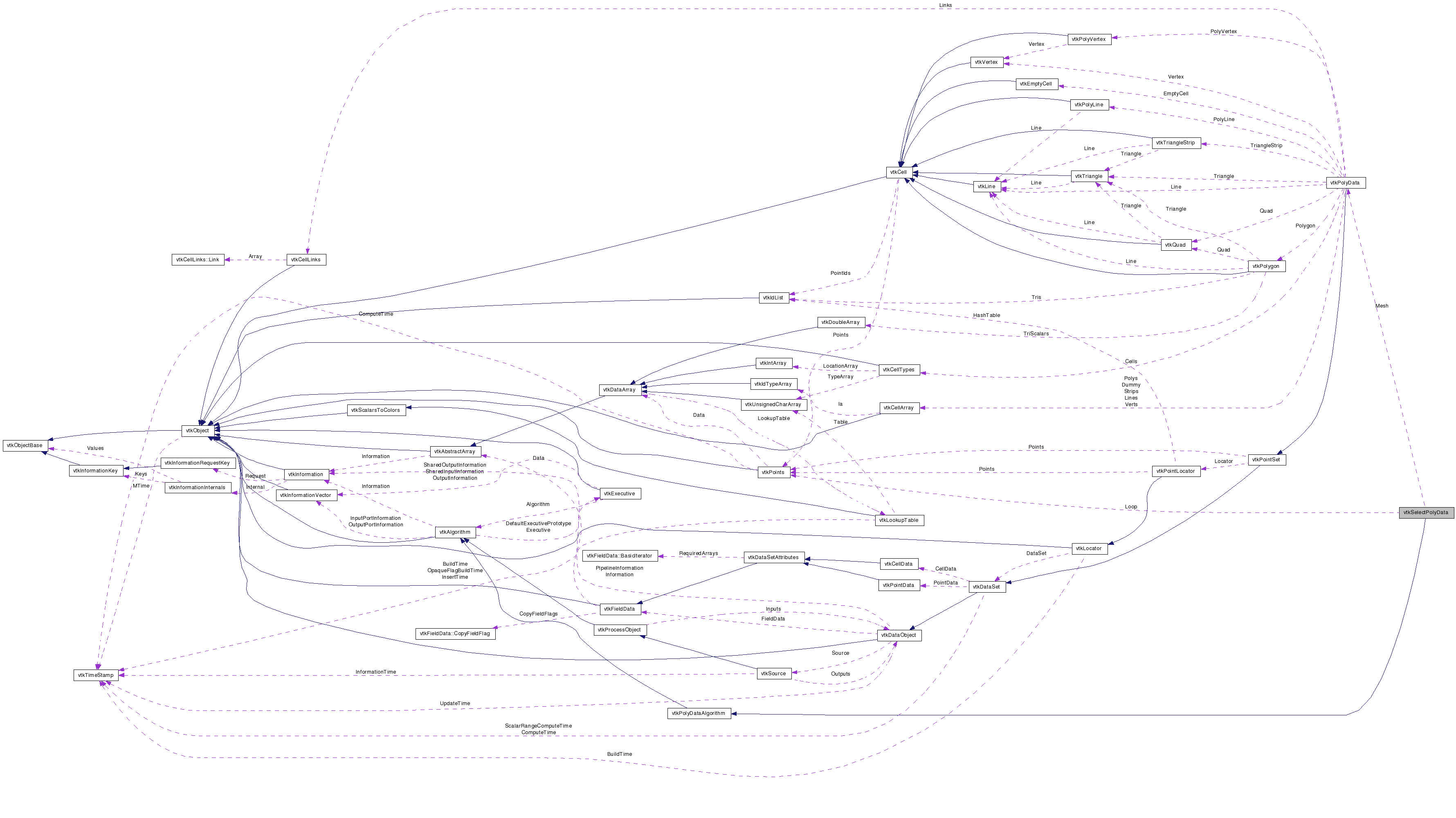

Collaboration diagram for vtkSelectPolyData:

Collaboration graph
[legend]

List of all members.


Detailed Description

select portion of polygonal mesh; generate selection scalars

vtkSelectPolyData is a filter that selects polygonal data based on defining a "loop" and indicating the region inside of the loop. The mesh within the loop consists of complete cells (the cells are not cut). Alternatively, this filter can be used to generate scalars. These scalar values, which are a distance measure to the loop, can be used to clip, contour. or extract data (i.e., anything that an implicit function can do).

The loop is defined by an array of x-y-z point coordinates. (Coordinates should be in the same coordinate space as the input polygonal data.) The loop can be concave and non-planar, but not self-intersecting. The input to the filter is a polygonal mesh (only surface primitives such as triangle strips and polygons); the output is either a) a portion of the original mesh laying within the selection loop (GenerateSelectionScalarsOff); or b) the same polygonal mesh with the addition of scalar values (GenerateSelectionScalarsOn).

The algorithm works as follows. For each point coordinate in the loop, the closest point in the mesh is found. The result is a loop of closest point ids from the mesh. Then, the edges in the mesh connecting the closest points (and laying along the lines forming the loop) are found. A greedy edge tracking procedure is used as follows. At the current point, the mesh edge oriented in the direction of and whose end point is closest to the line is chosen. The edge is followed to the new end point, and the procedure is repeated. This process continues until the entire loop has been created.

To determine what portion of the mesh is inside and outside of the loop, three options are possible. 1) the smallest connected region, 2) the largest connected region, and 3) the connected region closest to a user specified point. (Set the ivar SelectionMode.)

Once the loop is computed as above, the GenerateSelectionScalars controls the output of the filter. If on, then scalar values are generated based on distance to the loop lines. Otherwise, the cells laying inside the selection loop are output. By default, the mesh lying within the loop is output; however, if InsideOut is on, then the portion of the mesh lying outside of the loop is output.

The filter can be configured to generate the unselected portions of the mesh as output by setting GenerateUnselectedOutput. Use the method GetUnselectedOutput to access this output. (Note: this flag is pertinent only when GenerateSelectionScalars is off.)

Warning:
Make sure that the points you pick are on a connected surface. If not, then the filter will generate an empty or partial result. Also, self-intersecting loops will generate unpredictable results.

During processing of the data, non-triangular cells are converted to triangles if GenerateSelectionScalars is off.

See also:
vtkImplicitSelectionLoop
Tests:
vtkSelectPolyData (Tests)

Definition at line 93 of file vtkSelectPolyData.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkPolyDataGetUnselectedOutput ()
vtkPolyDataGetSelectionEdges ()
unsigned long int GetMTime ()
virtual void SetGenerateSelectionScalars (int)
virtual int GetGenerateSelectionScalars ()
virtual void GenerateSelectionScalarsOn ()
virtual void GenerateSelectionScalarsOff ()
virtual void SetInsideOut (int)
virtual int GetInsideOut ()
virtual void InsideOutOn ()
virtual void InsideOutOff ()
virtual void SetLoop (vtkPoints *)
virtual vtkPointsGetLoop ()
virtual void SetSelectionMode (int)
virtual int GetSelectionMode ()
void SetSelectionModeToSmallestRegion ()
void SetSelectionModeToLargestRegion ()
void SetSelectionModeToClosestPointRegion ()
const char * GetSelectionModeAsString ()
virtual void SetGenerateUnselectedOutput (int)
virtual int GetGenerateUnselectedOutput ()
virtual void GenerateUnselectedOutputOn ()
virtual void GenerateUnselectedOutputOff ()

Static Public Member Functions

static vtkSelectPolyDataNew ()
static int IsTypeOf (const char *type)
static vtkSelectPolyDataSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkSelectPolyData ()
 ~vtkSelectPolyData ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int GenerateSelectionScalars
int InsideOut
vtkPointsLoop
int SelectionMode
double ClosestPoint [3]
int GenerateUnselectedOutput

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 101 of file vtkSelectPolyData.h.


Constructor & Destructor Documentation

vtkSelectPolyData::vtkSelectPolyData (  )  [protected]

vtkSelectPolyData::~vtkSelectPolyData (  )  [protected]


Member Function Documentation

static vtkSelectPolyData* vtkSelectPolyData::New (  )  [static]

Instantiate object with InsideOut turned off, and GenerateSelectionScalars turned off. The unselected output is not generated, and the inside mode is the smallest region.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkSelectPolyData::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkSelectPolyData::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkSelectPolyData::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSelectPolyData* vtkSelectPolyData::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkSelectPolyData::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkSelectPolyData::SetGenerateSelectionScalars ( int   )  [virtual]

Set/Get the flag to control behavior of the filter. If GenerateSelectionScalars is on, then the output of the filter is the same as the input, except that scalars are generated. If off, the filter outputs the cells laying inside the loop, and does not generate scalars.

virtual int vtkSelectPolyData::GetGenerateSelectionScalars (  )  [virtual]

Set/Get the flag to control behavior of the filter. If GenerateSelectionScalars is on, then the output of the filter is the same as the input, except that scalars are generated. If off, the filter outputs the cells laying inside the loop, and does not generate scalars.

virtual void vtkSelectPolyData::GenerateSelectionScalarsOn (  )  [virtual]

Set/Get the flag to control behavior of the filter. If GenerateSelectionScalars is on, then the output of the filter is the same as the input, except that scalars are generated. If off, the filter outputs the cells laying inside the loop, and does not generate scalars.

virtual void vtkSelectPolyData::GenerateSelectionScalarsOff (  )  [virtual]

Set/Get the flag to control behavior of the filter. If GenerateSelectionScalars is on, then the output of the filter is the same as the input, except that scalars are generated. If off, the filter outputs the cells laying inside the loop, and does not generate scalars.

virtual void vtkSelectPolyData::SetInsideOut ( int   )  [virtual]

Set/Get the InsideOut flag. When off, the mesh within the loop is extracted. When on, the mesh outside the loop is extracted.

virtual int vtkSelectPolyData::GetInsideOut (  )  [virtual]

Set/Get the InsideOut flag. When off, the mesh within the loop is extracted. When on, the mesh outside the loop is extracted.

virtual void vtkSelectPolyData::InsideOutOn (  )  [virtual]

Set/Get the InsideOut flag. When off, the mesh within the loop is extracted. When on, the mesh outside the loop is extracted.

virtual void vtkSelectPolyData::InsideOutOff (  )  [virtual]

Set/Get the InsideOut flag. When off, the mesh within the loop is extracted. When on, the mesh outside the loop is extracted.

virtual void vtkSelectPolyData::SetLoop ( vtkPoints  )  [virtual]

Set/Get the array of point coordinates defining the loop. There must be at least three points used to define a loop.

virtual vtkPoints* vtkSelectPolyData::GetLoop (  )  [virtual]

Set/Get the array of point coordinates defining the loop. There must be at least three points used to define a loop.

virtual void vtkSelectPolyData::SetSelectionMode ( int   )  [virtual]

Control how inside/outside of loop is defined.

virtual int vtkSelectPolyData::GetSelectionMode (  )  [virtual]

Control how inside/outside of loop is defined.

void vtkSelectPolyData::SetSelectionModeToSmallestRegion (  )  [inline]

Control how inside/outside of loop is defined.

Definition at line 135 of file vtkSelectPolyData.h.

void vtkSelectPolyData::SetSelectionModeToLargestRegion (  )  [inline]

Control how inside/outside of loop is defined.

Definition at line 137 of file vtkSelectPolyData.h.

void vtkSelectPolyData::SetSelectionModeToClosestPointRegion (  )  [inline]

Control how inside/outside of loop is defined.

Definition at line 139 of file vtkSelectPolyData.h.

const char * vtkSelectPolyData::GetSelectionModeAsString ( void   )  [inline]

Return the method of determining in/out of loop as a string.

Definition at line 184 of file vtkSelectPolyData.h.

virtual void vtkSelectPolyData::SetGenerateUnselectedOutput ( int   )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's not been selected.

virtual int vtkSelectPolyData::GetGenerateUnselectedOutput (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's not been selected.

virtual void vtkSelectPolyData::GenerateUnselectedOutputOn (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's not been selected.

virtual void vtkSelectPolyData::GenerateUnselectedOutputOff (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's not been selected.

vtkPolyData* vtkSelectPolyData::GetUnselectedOutput (  )

Return output that hasn't been selected (if GenreateUnselectedOutput is enabled).

vtkPolyData* vtkSelectPolyData::GetSelectionEdges (  )

Return the (mesh) edges of the selection region.

unsigned long int vtkSelectPolyData::GetMTime (  )  [virtual]

Return this object's modified time.

Reimplemented from vtkObject.

int vtkSelectPolyData::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 168 of file vtkSelectPolyData.h.

Definition at line 169 of file vtkSelectPolyData.h.

Definition at line 170 of file vtkSelectPolyData.h.

Definition at line 171 of file vtkSelectPolyData.h.

double vtkSelectPolyData::ClosestPoint[3] [protected]

Definition at line 172 of file vtkSelectPolyData.h.

Definition at line 173 of file vtkSelectPolyData.h.


The documentation for this class was generated from the following file:
