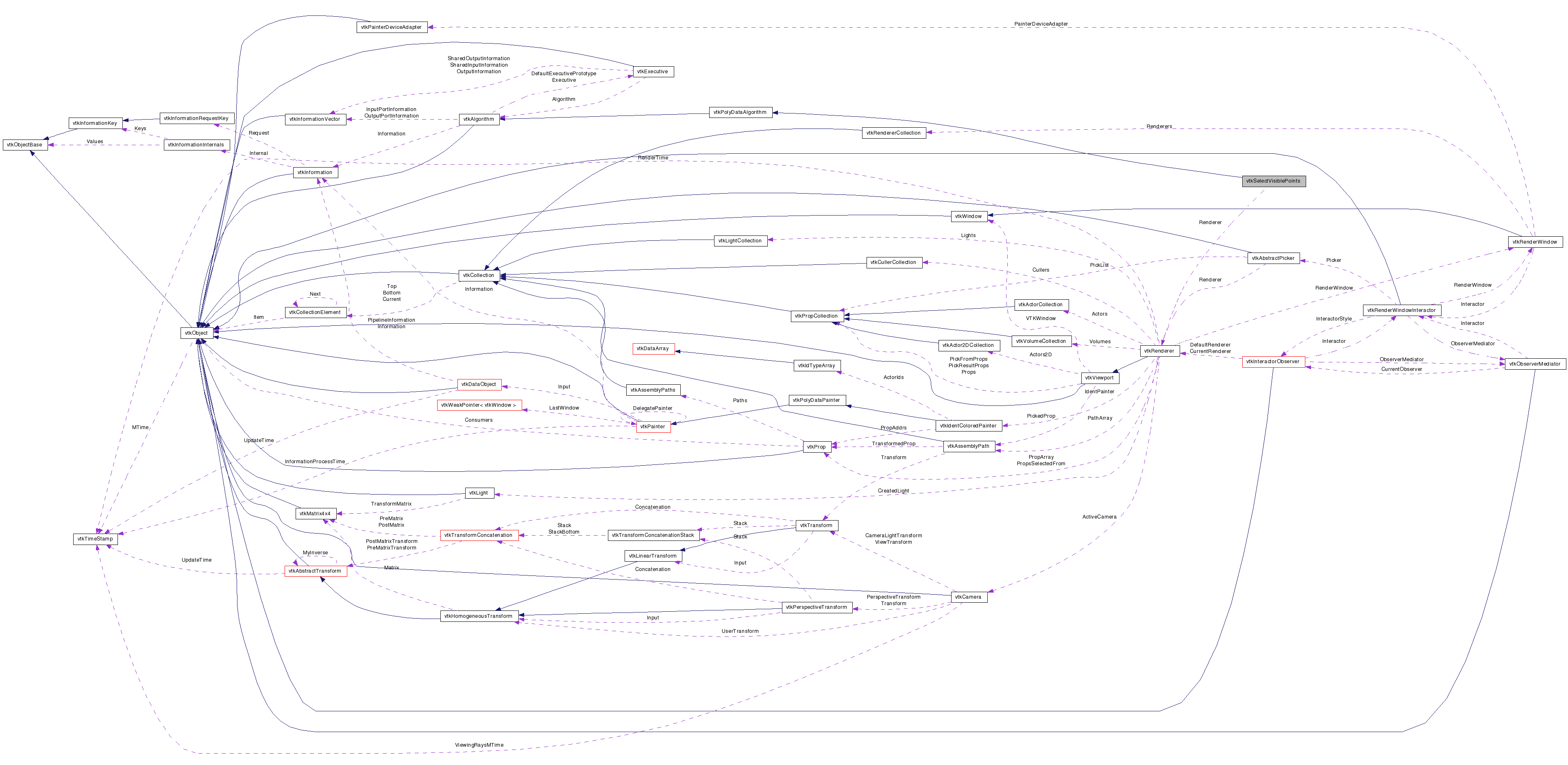

Collaboration diagram for vtkSelectVisiblePoints:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract points that are visible (based on z-buffer calculation)

vtkSelectVisiblePoints is a filter that selects points based on whether they are visible or not. Visibility is determined by accessing the z-buffer of a rendering window. (The position of each input point is converted into display coordinates, and then the z-value at that point is obtained. If within the user-specified tolerance, the point is considered visible.)

Points that are visible (or if the ivar SelectInvisible is on, invisible points) are passed to the output. Associated data attributes are passed to the output as well.

This filter also allows you to specify a rectangular window in display (pixel) coordinates in which the visible points must lie. This can be used as a sort of local "brushing" operation to select just data within a window.

Warning:
You must carefully synchronize the execution of this filter. The filter refers to a renderer, which is modified every time a render occurs. Therefore, the filter is always out of date, and always executes. You may have to perform two rendering passes, or if you are using this filter in conjunction with vtkLabeledDataMapper, things work out because 2D rendering occurs after the 3D rendering.
Examples:
vtkSelectVisiblePoints (Examples)
Tests:
vtkSelectVisiblePoints (Tests)

Definition at line 57 of file vtkSelectVisiblePoints.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
void SetRenderer (vtkRenderer *ren)
vtkRendererGetRenderer ()
virtual void SetSelectionWindow (int)
virtual int GetSelectionWindow ()
virtual void SelectionWindowOn ()
virtual void SelectionWindowOff ()
virtual void SetSelection (int, int, int, int)
virtual void SetSelection (int[4])
virtual int * GetSelection ()
virtual void GetSelection (int data[4])
virtual void SetSelectInvisible (int)
virtual int GetSelectInvisible ()
virtual void SelectInvisibleOn ()
virtual void SelectInvisibleOff ()
virtual void SetTolerance (double)
virtual double GetTolerance ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkSelectVisiblePointsSafeDownCast (vtkObject *o)
static vtkSelectVisiblePointsNew ()

Protected Member Functions

 vtkSelectVisiblePoints ()
 ~vtkSelectVisiblePoints ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkRendererRenderer
int SelectionWindow
int Selection [4]
int SelectInvisible
double Tolerance

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 60 of file vtkSelectVisiblePoints.h.


Constructor & Destructor Documentation

vtkSelectVisiblePoints::vtkSelectVisiblePoints (  )  [protected]

vtkSelectVisiblePoints::~vtkSelectVisiblePoints (  )  [protected]


Member Function Documentation

virtual const char* vtkSelectVisiblePoints::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkSelectVisiblePoints::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkSelectVisiblePoints::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSelectVisiblePoints* vtkSelectVisiblePoints::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkSelectVisiblePoints::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSelectVisiblePoints* vtkSelectVisiblePoints::New (  )  [static]

Instantiate object with no renderer; window selection turned off; tolerance set to 0.01; and select invisible off.

Reimplemented from vtkPolyDataAlgorithm.

void vtkSelectVisiblePoints::SetRenderer ( vtkRenderer ren  )  [inline]

Specify the renderer in which the visibility computation is to be performed.

Definition at line 70 of file vtkSelectVisiblePoints.h.

vtkRenderer* vtkSelectVisiblePoints::GetRenderer (  )  [inline]

Specify the renderer in which the visibility computation is to be performed.

Definition at line 78 of file vtkSelectVisiblePoints.h.

virtual void vtkSelectVisiblePoints::SetSelectionWindow ( int   )  [virtual]

Set/Get the flag which enables selection in a rectangular display region.

virtual int vtkSelectVisiblePoints::GetSelectionWindow (  )  [virtual]

Set/Get the flag which enables selection in a rectangular display region.

virtual void vtkSelectVisiblePoints::SelectionWindowOn (  )  [virtual]

Set/Get the flag which enables selection in a rectangular display region.

virtual void vtkSelectVisiblePoints::SelectionWindowOff (  )  [virtual]

Set/Get the flag which enables selection in a rectangular display region.

virtual void vtkSelectVisiblePoints::SetSelection ( int  ,
int  ,
int  ,
int
) [virtual]

Specify the selection window in display coordinates. You must specify a rectangular region using (xmin,xmax,ymin,ymax).

virtual void vtkSelectVisiblePoints::SetSelection ( int  [4]  )  [virtual]

Specify the selection window in display coordinates. You must specify a rectangular region using (xmin,xmax,ymin,ymax).

virtual int* vtkSelectVisiblePoints::GetSelection (  )  [virtual]

Specify the selection window in display coordinates. You must specify a rectangular region using (xmin,xmax,ymin,ymax).

virtual void vtkSelectVisiblePoints::GetSelection ( int  data[4]  )  [virtual]

Specify the selection window in display coordinates. You must specify a rectangular region using (xmin,xmax,ymin,ymax).

virtual void vtkSelectVisiblePoints::SetSelectInvisible ( int   )  [virtual]

Set/Get the flag which enables inverse selection; i.e., invisible points are selected.

virtual int vtkSelectVisiblePoints::GetSelectInvisible (  )  [virtual]

Set/Get the flag which enables inverse selection; i.e., invisible points are selected.

virtual void vtkSelectVisiblePoints::SelectInvisibleOn (  )  [virtual]

Set/Get the flag which enables inverse selection; i.e., invisible points are selected.

virtual void vtkSelectVisiblePoints::SelectInvisibleOff (  )  [virtual]

Set/Get the flag which enables inverse selection; i.e., invisible points are selected.

virtual void vtkSelectVisiblePoints::SetTolerance ( double   )  [virtual]

Set/Get a tolerance to use to determine whether a point is visible. A tolerance is usually required because the conversion from world space to display space during rendering introduces numerical round-off.

virtual double vtkSelectVisiblePoints::GetTolerance (  )  [virtual]

Set/Get a tolerance to use to determine whether a point is visible. A tolerance is usually required because the conversion from world space to display space during rendering introduces numerical round-off.

unsigned long vtkSelectVisiblePoints::GetMTime (  )  [virtual]

Return MTime also considering the renderer.

Reimplemented from vtkObject.

virtual int vtkSelectVisiblePoints::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkSelectVisiblePoints::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 122 of file vtkSelectVisiblePoints.h.

Definition at line 124 of file vtkSelectVisiblePoints.h.

Definition at line 125 of file vtkSelectVisiblePoints.h.

Definition at line 126 of file vtkSelectVisiblePoints.h.

Definition at line 127 of file vtkSelectVisiblePoints.h.


The documentation for this class was generated from the following file:
