vtkSuperquadric Class Reference

#include <vtkSuperquadric.h>

Inheritance diagram for vtkSuperquadric:

Inheritance graph
[legend]

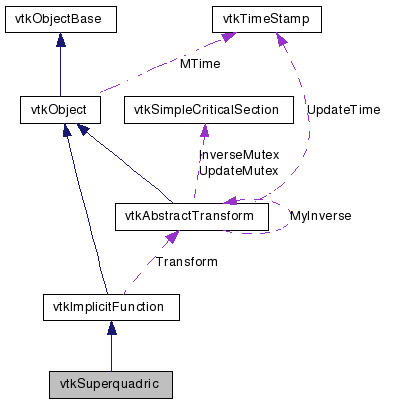

Collaboration diagram for vtkSuperquadric:

Collaboration graph
[legend]

List of all members.


Detailed Description

implicit function for a Superquadric

vtkSuperquadric computes the implicit function and function gradient for a superquadric. vtkSuperquadric is a concrete implementation of vtkImplicitFunction. The superquadric is centered at Center and axes of rotation is along the y-axis. (Use the superclass' vtkImplicitFunction transformation matrix if necessary to reposition.) Roundness parameters (PhiRoundness and ThetaRoundness) control the shape of the superquadric. The Toroidal boolean controls whether a toroidal superquadric is produced. If so, the Thickness parameter controls the thickness of the toroid: 0 is the thinnest allowable toroid, and 1 has a minimum sized hole. The Scale parameters allow the superquadric to be scaled in x, y, and z (normal vectors are correctly generated in any case). The Size parameter controls size of the superquadric.

This code is based on "Rigid physically based superquadrics", A. H. Barr, in "Graphics Gems III", David Kirk, ed., Academic Press, 1992.

Warning:
The Size and Thickness parameters control coefficients of superquadric generation, and may do not exactly describe the size of the superquadric.

Definition at line 48 of file vtkSuperquadric.h.


Public Types

typedef vtkImplicitFunction Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
double EvaluateFunction (double x[3])
double EvaluateFunction (double x, double y, double z)
void EvaluateGradient (double x[3], double g[3])
virtual void SetCenter (double, double, double)
virtual void SetCenter (double[3])
virtual double * GetCenter ()
virtual void GetCenter (double data[3])
virtual void SetScale (double, double, double)
virtual void SetScale (double[3])
virtual double * GetScale ()
virtual void GetScale (double data[3])
virtual double GetThickness ()
virtual void SetThickness (double)
virtual double GetPhiRoundness ()
void SetPhiRoundness (double e)
virtual double GetThetaRoundness ()
void SetThetaRoundness (double e)
virtual void SetSize (double)
virtual double GetSize ()
virtual void ToroidalOn ()
virtual void ToroidalOff ()
virtual int GetToroidal ()
virtual void SetToroidal (int)

Static Public Member Functions

static vtkSuperquadricNew ()
static int IsTypeOf (const char *type)
static vtkSuperquadricSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkSuperquadric ()
 ~vtkSuperquadric ()

Protected Attributes

int Toroidal
double Thickness
double Size
double PhiRoundness
double ThetaRoundness
double Center [3]
double Scale [3]

Member Typedef Documentation

Reimplemented from vtkImplicitFunction.

Definition at line 56 of file vtkSuperquadric.h.


Constructor & Destructor Documentation

vtkSuperquadric::vtkSuperquadric (  )  [protected]

vtkSuperquadric::~vtkSuperquadric (  )  [inline, protected]

Definition at line 114 of file vtkSuperquadric.h.


Member Function Documentation

static vtkSuperquadric* vtkSuperquadric::New (  )  [static]

Construct with superquadric radius of 0.5, toroidal off, center at 0.0, scale (1,1,1), size 0.5, phi roundness 1.0, and theta roundness 0.0.

Reimplemented from vtkObject.

virtual const char* vtkSuperquadric::GetClassName (  )  [virtual]

Reimplemented from vtkImplicitFunction.

static int vtkSuperquadric::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

virtual int vtkSuperquadric::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

static vtkSuperquadric* vtkSuperquadric::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImplicitFunction.

void vtkSuperquadric::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImplicitFunction.

double vtkSuperquadric::EvaluateFunction ( double  x[3]  )  [virtual]

Evaluate function at position x-y-z and return value. You should generally not call this method directly, you should use FunctionValue() instead. This method must be implemented by any derived class.

Implements vtkImplicitFunction.

double vtkSuperquadric::EvaluateFunction ( double  x,
double  y,
double  z
) [inline]

Evaluate function at position x-y-z and return value. You should generally not call this method directly, you should use FunctionValue() instead. This method must be implemented by any derived class.

Reimplemented from vtkImplicitFunction.

Definition at line 61 of file vtkSuperquadric.h.

void vtkSuperquadric::EvaluateGradient ( double  x[3],
double  g[3]
) [virtual]

Evaluate function gradient at position x-y-z and pass back vector. You should generally not call this method directly, you should use FunctionGradient() instead. This method must be implemented by any derived class.

Implements vtkImplicitFunction.

virtual void vtkSuperquadric::SetCenter ( double  ,
double  ,
double
) [virtual]

Set the center of the superquadric. Default is 0,0,0.

virtual void vtkSuperquadric::SetCenter ( double  [3]  )  [virtual]

Set the center of the superquadric. Default is 0,0,0.

virtual double* vtkSuperquadric::GetCenter (  )  [virtual]

Set the center of the superquadric. Default is 0,0,0.

virtual void vtkSuperquadric::GetCenter ( double  data[3]  )  [virtual]

Set the center of the superquadric. Default is 0,0,0.

virtual void vtkSuperquadric::SetScale ( double  ,
double  ,
double
) [virtual]

Set the scale factors of the superquadric. Default is 1,1,1.

virtual void vtkSuperquadric::SetScale ( double  [3]  )  [virtual]

Set the scale factors of the superquadric. Default is 1,1,1.

virtual double* vtkSuperquadric::GetScale (  )  [virtual]

Set the scale factors of the superquadric. Default is 1,1,1.

virtual void vtkSuperquadric::GetScale ( double  data[3]  )  [virtual]

Set the scale factors of the superquadric. Default is 1,1,1.

virtual double vtkSuperquadric::GetThickness (  )  [virtual]

Set/Get Superquadric ring thickness (toroids only). Changing thickness maintains the outside diameter of the toroid.

virtual void vtkSuperquadric::SetThickness ( double   )  [virtual]

Set/Get Superquadric ring thickness (toroids only). Changing thickness maintains the outside diameter of the toroid.

virtual double vtkSuperquadric::GetPhiRoundness (  )  [virtual]

Set/Get Superquadric north/south roundness. Values range from 0 (rectangular) to 1 (circular) to higher orders.

void vtkSuperquadric::SetPhiRoundness ( double  e  )

Set/Get Superquadric north/south roundness. Values range from 0 (rectangular) to 1 (circular) to higher orders.

virtual double vtkSuperquadric::GetThetaRoundness (  )  [virtual]

Set/Get Superquadric east/west roundness. Values range from 0 (rectangular) to 1 (circular) to higher orders.

void vtkSuperquadric::SetThetaRoundness ( double  e  )

Set/Get Superquadric east/west roundness. Values range from 0 (rectangular) to 1 (circular) to higher orders.

virtual void vtkSuperquadric::SetSize ( double   )  [virtual]

Set/Get Superquadric isotropic size.

virtual double vtkSuperquadric::GetSize (  )  [virtual]

Set/Get Superquadric isotropic size.

virtual void vtkSuperquadric::ToroidalOn (  )  [virtual]

Set/Get whether or not the superquadric is toroidal (1) or ellipsoidal (0).

virtual void vtkSuperquadric::ToroidalOff (  )  [virtual]

Set/Get whether or not the superquadric is toroidal (1) or ellipsoidal (0).

virtual int vtkSuperquadric::GetToroidal (  )  [virtual]

Set/Get whether or not the superquadric is toroidal (1) or ellipsoidal (0).

virtual void vtkSuperquadric::SetToroidal ( int   )  [virtual]

Set/Get whether or not the superquadric is toroidal (1) or ellipsoidal (0).


Member Data Documentation

int vtkSuperquadric::Toroidal [protected]

Definition at line 114 of file vtkSuperquadric.h.

double vtkSuperquadric::Thickness [protected]

Definition at line 117 of file vtkSuperquadric.h.

double vtkSuperquadric::Size [protected]

Definition at line 118 of file vtkSuperquadric.h.

double vtkSuperquadric::PhiRoundness [protected]

Definition at line 119 of file vtkSuperquadric.h.

double vtkSuperquadric::ThetaRoundness [protected]

Definition at line 120 of file vtkSuperquadric.h.

double vtkSuperquadric::Center[3] [protected]

Definition at line 121 of file vtkSuperquadric.h.

double vtkSuperquadric::Scale[3] [protected]

Definition at line 122 of file vtkSuperquadric.h.


The documentation for this class was generated from the following file:
