vtkTemporalDataSet Class Reference

#include <vtkTemporalDataSet.h>

Inheritance diagram for vtkTemporalDataSet:

Inheritance graph
[legend]

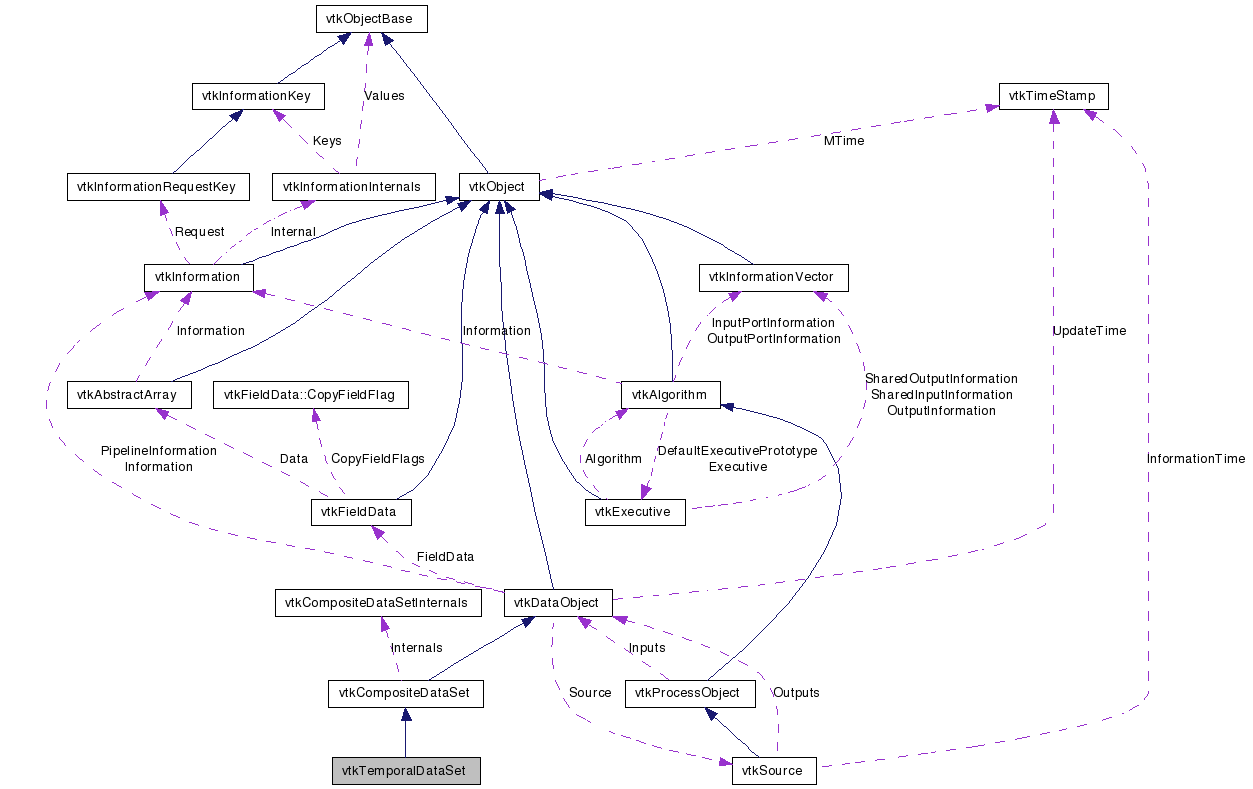

Collaboration diagram for vtkTemporalDataSet:

Collaboration graph
[legend]

List of all members.


Detailed Description

Composite dataset that holds multiple times.

vtkTemporalDataSet is a vtkCompositeDataSet that stores multiple time steps of data.

See also:
vtkCompositeDataSet

Definition at line 31 of file vtkTemporalDataSet.h.


Public Types

typedef vtkCompositeDataSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual int GetDataObjectType ()
void SetTimeStep (unsigned int timestep, vtkDataObject *dobj)
virtual int GetExtentType ()
void SetNumberOfTimeSteps (unsigned int numLevels)
unsigned int GetNumberOfTimeSteps ()
vtkDataObjectGetTimeStep (unsigned int timestep)
vtkInformationGetMetaData (unsigned int timestep)
int HasMetaData (unsigned int timestep)
virtual vtkInformationGetMetaData (vtkCompositeDataIterator *iter)
virtual int HasMetaData (vtkCompositeDataIterator *iter)

Static Public Member Functions

static vtkTemporalDataSetNew ()
static int IsTypeOf (const char *type)
static vtkTemporalDataSetSafeDownCast (vtkObject *o)
static vtkTemporalDataSetGetData (vtkInformation *info)
static vtkTemporalDataSetGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkTemporalDataSet ()
 ~vtkTemporalDataSet ()

Member Typedef Documentation

Reimplemented from vtkCompositeDataSet.

Definition at line 36 of file vtkTemporalDataSet.h.


Constructor & Destructor Documentation

vtkTemporalDataSet::vtkTemporalDataSet (  )  [protected]

vtkTemporalDataSet::~vtkTemporalDataSet (  )  [protected]


Member Function Documentation

static vtkTemporalDataSet* vtkTemporalDataSet::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkTemporalDataSet::GetClassName (  )  [virtual]

Reimplemented from vtkCompositeDataSet.

static int vtkTemporalDataSet::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataSet.

virtual int vtkTemporalDataSet::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataSet.

static vtkTemporalDataSet* vtkTemporalDataSet::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCompositeDataSet.

virtual void vtkTemporalDataSet::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCompositeDataSet.

virtual int vtkTemporalDataSet::GetDataObjectType (  )  [inline, virtual]

Return class name of data type (see vtkType.h for definitions).

Reimplemented from vtkCompositeDataSet.

Definition at line 40 of file vtkTemporalDataSet.h.

void vtkTemporalDataSet::SetNumberOfTimeSteps ( unsigned int  numLevels  )  [inline]

Set the number of time steps in theis dataset

Definition at line 44 of file vtkTemporalDataSet.h.

unsigned int vtkTemporalDataSet::GetNumberOfTimeSteps (  )  [inline]

Returns the number of time steps.

Definition at line 52 of file vtkTemporalDataSet.h.

void vtkTemporalDataSet::SetTimeStep ( unsigned int  timestep,
vtkDataObject dobj
)

Set a data object as a timestep. Cannot be vtkTemporalDataSet.

vtkDataObject* vtkTemporalDataSet::GetTimeStep ( unsigned int  timestep  )  [inline]

Get a timestep.

Definition at line 63 of file vtkTemporalDataSet.h.

vtkInformation* vtkTemporalDataSet::GetMetaData ( unsigned int  timestep  )  [inline]

Get timestep meta-data.

Definition at line 69 of file vtkTemporalDataSet.h.

int vtkTemporalDataSet::HasMetaData ( unsigned int  timestep  )  [inline]

Returns if timestep meta-data is present.

Definition at line 75 of file vtkTemporalDataSet.h.

static vtkTemporalDataSet* vtkTemporalDataSet::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkCompositeDataSet.

static vtkTemporalDataSet* vtkTemporalDataSet::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkCompositeDataSet.

virtual int vtkTemporalDataSet::GetExtentType (  )  [inline, virtual]

The extent type is a 3D extent

Reimplemented from vtkDataObject.

Definition at line 88 of file vtkTemporalDataSet.h.

virtual vtkInformation* vtkTemporalDataSet::GetMetaData ( vtkCompositeDataIterator iter  )  [inline, virtual]

Unhiding superclass method.

Reimplemented from vtkCompositeDataSet.

Definition at line 92 of file vtkTemporalDataSet.h.

virtual int vtkTemporalDataSet::HasMetaData ( vtkCompositeDataIterator iter  )  [inline, virtual]

Unhiding superclass method.

Reimplemented from vtkCompositeDataSet.

Definition at line 99 of file vtkTemporalDataSet.h.


The documentation for this class was generated from the following file:
