vtkThresholdTextureCoords Class Reference

#include <vtkThresholdTextureCoords.h>

Inheritance diagram for vtkThresholdTextureCoords:

Inheritance graph
[legend]

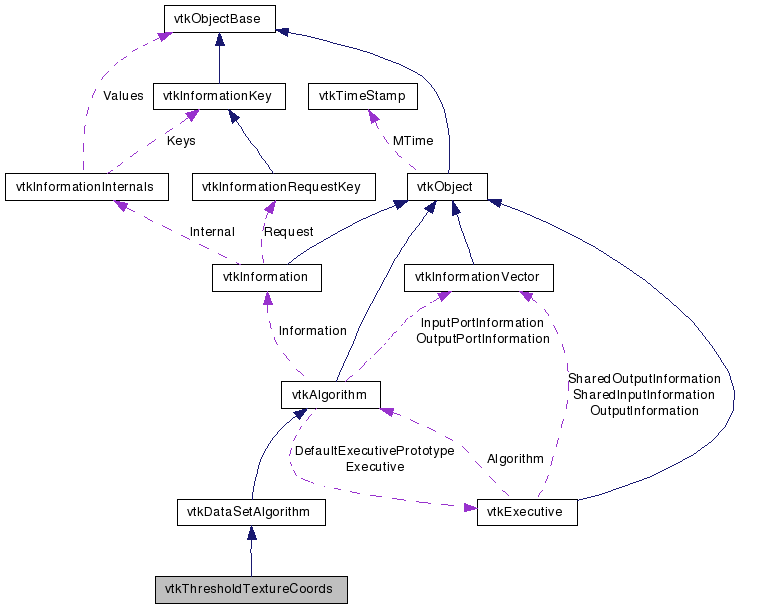

Collaboration diagram for vtkThresholdTextureCoords:

Collaboration graph
[legend]

List of all members.


Detailed Description

compute 1D, 2D, or 3D texture coordinates based on scalar threshold

vtkThresholdTextureCoords is a filter that generates texture coordinates for any input dataset type given a threshold criterion. The criterion can take three forms: 1) greater than a particular value (ThresholdByUpper()); 2) less than a particular value (ThresholdByLower(); or 3) between two values (ThresholdBetween(). If the threshold criterion is satisfied, the "in" texture coordinate will be set (this can be specified by the user). If the threshold criterion is not satisfied the "out" is set.

Warning:
There is a texture map - texThres.vtk - that can be used in conjunction with this filter. This map defines a "transparent" region for texture coordinates 0<=r<0.5, and an opaque full intensity map for texture coordinates 0.5<r<=1.0. There is a small transition region for r=0.5.
See also:
vtkThreshold vtkThresholdPoints vtkTextureMapToPlane vtkTextureMapToSphere vtkTextureMapToCylinder vtkTextureMapToBox
Examples:
vtkThresholdTextureCoords (Examples)
Tests:
vtkThresholdTextureCoords (Tests)

Definition at line 48 of file vtkThresholdTextureCoords.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ThresholdByLower (double lower)
void ThresholdByUpper (double upper)
void ThresholdBetween (double lower, double upper)
virtual double GetUpperThreshold ()
virtual double GetLowerThreshold ()
virtual void SetTextureDimension (int)
virtual int GetTextureDimension ()
virtual void SetInTextureCoord (double, double, double)
virtual void SetInTextureCoord (double[3])
virtual double * GetInTextureCoord ()
virtual void GetInTextureCoord (double data[3])
virtual void SetOutTextureCoord (double, double, double)
virtual void SetOutTextureCoord (double[3])
virtual double * GetOutTextureCoord ()
virtual void GetOutTextureCoord (double data[3])

Static Public Member Functions

static vtkThresholdTextureCoordsNew ()
static int IsTypeOf (const char *type)
static vtkThresholdTextureCoordsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkThresholdTextureCoords ()
 ~vtkThresholdTextureCoords ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int Lower (double s)
int Upper (double s)
int Between (double s)

Protected Attributes

double LowerThreshold
double UpperThreshold
int TextureDimension
double InTextureCoord [3]
double OutTextureCoord [3]
int(vtkThresholdTextureCoords::* ThresholdFunction )(double s)

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 52 of file vtkThresholdTextureCoords.h.


Constructor & Destructor Documentation

vtkThresholdTextureCoords::vtkThresholdTextureCoords (  )  [protected]

vtkThresholdTextureCoords::~vtkThresholdTextureCoords (  )  [inline, protected]

Definition at line 93 of file vtkThresholdTextureCoords.h.


Member Function Documentation

static vtkThresholdTextureCoords* vtkThresholdTextureCoords::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkThresholdTextureCoords::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkThresholdTextureCoords::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkThresholdTextureCoords::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkThresholdTextureCoords* vtkThresholdTextureCoords::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkThresholdTextureCoords::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

void vtkThresholdTextureCoords::ThresholdByLower ( double  lower  )

Criterion is cells whose scalars are less than lower threshold.

void vtkThresholdTextureCoords::ThresholdByUpper ( double  upper  )

Criterion is cells whose scalars are less than upper threshold.

void vtkThresholdTextureCoords::ThresholdBetween ( double  lower,
double  upper
)

Criterion is cells whose scalars are between lower and upper thresholds.

virtual double vtkThresholdTextureCoords::GetUpperThreshold (  )  [virtual]

Return the upper and lower thresholds.

virtual double vtkThresholdTextureCoords::GetLowerThreshold (  )  [virtual]

Return the upper and lower thresholds.

virtual void vtkThresholdTextureCoords::SetTextureDimension ( int   )  [virtual]

Set the desired dimension of the texture map.

virtual int vtkThresholdTextureCoords::GetTextureDimension (  )  [virtual]

Set the desired dimension of the texture map.

virtual void vtkThresholdTextureCoords::SetInTextureCoord ( double  ,
double  ,
double
) [virtual]

Set the texture coordinate value for point satisfying threshold criterion.

virtual void vtkThresholdTextureCoords::SetInTextureCoord ( double  [3]  )  [virtual]

Set the texture coordinate value for point satisfying threshold criterion.

virtual double* vtkThresholdTextureCoords::GetInTextureCoord (  )  [virtual]

Set the texture coordinate value for point satisfying threshold criterion.

virtual void vtkThresholdTextureCoords::GetInTextureCoord ( double  data[3]  )  [virtual]

Set the texture coordinate value for point satisfying threshold criterion.

virtual void vtkThresholdTextureCoords::SetOutTextureCoord ( double  ,
double  ,
double
) [virtual]

Set the texture coordinate value for point NOT satisfying threshold criterion.

virtual void vtkThresholdTextureCoords::SetOutTextureCoord ( double  [3]  )  [virtual]

Set the texture coordinate value for point NOT satisfying threshold criterion.

virtual double* vtkThresholdTextureCoords::GetOutTextureCoord (  )  [virtual]

Set the texture coordinate value for point NOT satisfying threshold criterion.

virtual void vtkThresholdTextureCoords::GetOutTextureCoord ( double  data[3]  )  [virtual]

Set the texture coordinate value for point NOT satisfying threshold criterion.

int vtkThresholdTextureCoords::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

int vtkThresholdTextureCoords::Lower ( double  s  )  [inline, protected]

Definition at line 110 of file vtkThresholdTextureCoords.h.

int vtkThresholdTextureCoords::Upper ( double  s  )  [inline, protected]

Definition at line 111 of file vtkThresholdTextureCoords.h.

int vtkThresholdTextureCoords::Between ( double  s  )  [inline, protected]

Definition at line 112 of file vtkThresholdTextureCoords.h.


Member Data Documentation

Definition at line 98 of file vtkThresholdTextureCoords.h.

Definition at line 99 of file vtkThresholdTextureCoords.h.

Definition at line 101 of file vtkThresholdTextureCoords.h.

Definition at line 103 of file vtkThresholdTextureCoords.h.

Definition at line 104 of file vtkThresholdTextureCoords.h.

int(vtkThresholdTextureCoords::* vtkThresholdTextureCoords::ThresholdFunction)(double s) [protected]


The documentation for this class was generated from the following file:
