vtkTreeLayoutStrategy Class Reference

#include <vtkTreeLayoutStrategy.h>

Inheritance diagram for vtkTreeLayoutStrategy:

Inheritance graph
[legend]

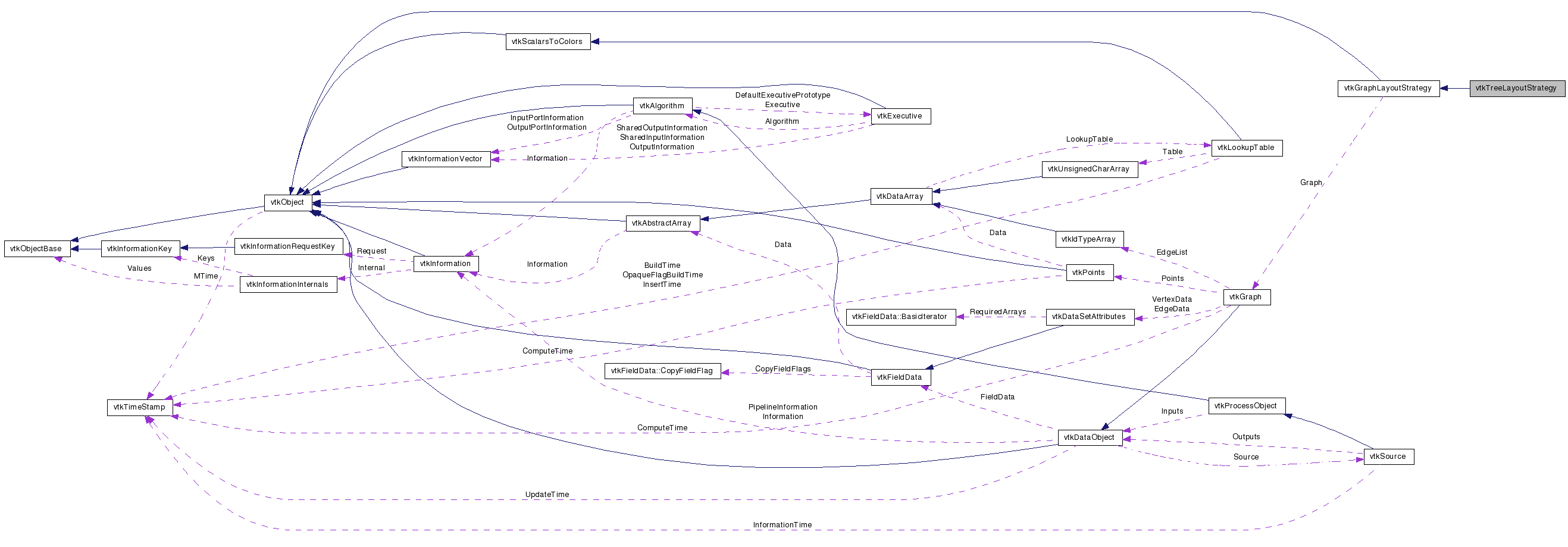

Collaboration diagram for vtkTreeLayoutStrategy:

Collaboration graph
[legend]

List of all members.


Detailed Description

hierarchical layout

Assigns points to the nodes of a tree in either a standard or radial layout. The standard layout places each level on a horizontal line, while the radial layout places each level on a concentric circle. You may specify the sweep angle of the tree which constrains the tree to be contained within a wedge. Also, you may indicate the log scale of the tree, which diminishes the length of arcs at lower levels of the tree. Values near zero give a large proportion of the space to the tree levels near the root, while values near one give nearly equal proportions of space to all tree levels.

The user may also specify an array to use to indicate the distance from the root, either vertically (for standard layout) or radially (for radial layout). You specify this with SetDistanceArrayName().

Examples:
vtkTreeLayoutStrategy (Examples)
Tests:
vtkTreeLayoutStrategy (Tests)

Definition at line 50 of file vtkTreeLayoutStrategy.h.


Public Types

typedef vtkGraphLayoutStrategy Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Layout ()
virtual void SetAngle (double)
virtual double GetAngle ()
virtual void SetRadial (bool)
virtual bool GetRadial ()
virtual void RadialOn ()
virtual void RadialOff ()
virtual void SetLogSpacingValue (double)
virtual double GetLogSpacingValue ()
virtual void SetLeafSpacing (double)
virtual double GetLeafSpacing ()
virtual void SetDistanceArrayName (const char *)
virtual char * GetDistanceArrayName ()

Static Public Member Functions

static vtkTreeLayoutStrategyNew ()
static int IsTypeOf (const char *type)
static vtkTreeLayoutStrategySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTreeLayoutStrategy ()
 ~vtkTreeLayoutStrategy ()

Protected Attributes

double Angle
bool Radial
double LogSpacingValue
double LeafSpacing
char * DistanceArrayName

Member Typedef Documentation

Reimplemented from vtkGraphLayoutStrategy.

Definition at line 55 of file vtkTreeLayoutStrategy.h.


Constructor & Destructor Documentation

vtkTreeLayoutStrategy::vtkTreeLayoutStrategy (  )  [protected]

vtkTreeLayoutStrategy::~vtkTreeLayoutStrategy (  )  [protected]


Member Function Documentation

static vtkTreeLayoutStrategy* vtkTreeLayoutStrategy::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkTreeLayoutStrategy::GetClassName (  )  [virtual]

Reimplemented from vtkGraphLayoutStrategy.

static int vtkTreeLayoutStrategy::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

virtual int vtkTreeLayoutStrategy::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

static vtkTreeLayoutStrategy* vtkTreeLayoutStrategy::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkGraphLayoutStrategy.

void vtkTreeLayoutStrategy::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphLayoutStrategy.

void vtkTreeLayoutStrategy::Layout (  )  [virtual]

Perform the tree layout.

Implements vtkGraphLayoutStrategy.

virtual void vtkTreeLayoutStrategy::SetAngle ( double   )  [virtual]

The sweep angle of the tree. For a standard tree layout, this should be between 0 and 180. For a radial tree layout, this can be between 0 and 360.

virtual double vtkTreeLayoutStrategy::GetAngle (  )  [virtual]

The sweep angle of the tree. For a standard tree layout, this should be between 0 and 180. For a radial tree layout, this can be between 0 and 360.

virtual void vtkTreeLayoutStrategy::SetRadial ( bool   )  [virtual]

If set, the tree is laid out with levels on concentric circles around the root. If unset (default), the tree is laid out with levels on horizontal lines.

virtual bool vtkTreeLayoutStrategy::GetRadial (  )  [virtual]

If set, the tree is laid out with levels on concentric circles around the root. If unset (default), the tree is laid out with levels on horizontal lines.

virtual void vtkTreeLayoutStrategy::RadialOn (  )  [virtual]

If set, the tree is laid out with levels on concentric circles around the root. If unset (default), the tree is laid out with levels on horizontal lines.

virtual void vtkTreeLayoutStrategy::RadialOff (  )  [virtual]

If set, the tree is laid out with levels on concentric circles around the root. If unset (default), the tree is laid out with levels on horizontal lines.

virtual void vtkTreeLayoutStrategy::SetLogSpacingValue ( double   )  [virtual]

The spacing of tree levels. Levels near zero give more space to levels near the root, while levels near one (the default) create evenly-spaced levels. Levels above one give more space to levels near the leaves.

virtual double vtkTreeLayoutStrategy::GetLogSpacingValue (  )  [virtual]

The spacing of tree levels. Levels near zero give more space to levels near the root, while levels near one (the default) create evenly-spaced levels. Levels above one give more space to levels near the leaves.

virtual void vtkTreeLayoutStrategy::SetLeafSpacing ( double   )  [virtual]

The spacing of leaves. Levels near one evenly space leaves with no gaps between subtrees. Levels near zero creates large gaps between subtrees.

virtual double vtkTreeLayoutStrategy::GetLeafSpacing (  )  [virtual]

The spacing of leaves. Levels near one evenly space leaves with no gaps between subtrees. Levels near zero creates large gaps between subtrees.

virtual void vtkTreeLayoutStrategy::SetDistanceArrayName ( const char *   )  [virtual]

Get/Set the array to use to determine the distance from the root.

virtual char* vtkTreeLayoutStrategy::GetDistanceArrayName (  )  [virtual]

Get/Set the array to use to determine the distance from the root.


Member Data Documentation

double vtkTreeLayoutStrategy::Angle [protected]

Definition at line 105 of file vtkTreeLayoutStrategy.h.

Definition at line 106 of file vtkTreeLayoutStrategy.h.

Definition at line 107 of file vtkTreeLayoutStrategy.h.

Definition at line 108 of file vtkTreeLayoutStrategy.h.

Definition at line 109 of file vtkTreeLayoutStrategy.h.


The documentation for this class was generated from the following file:
