vtkVertexListIterator Class Reference

#include <vtkVertexListIterator.h>

Inheritance diagram for vtkVertexListIterator:

Inheritance graph
[legend]

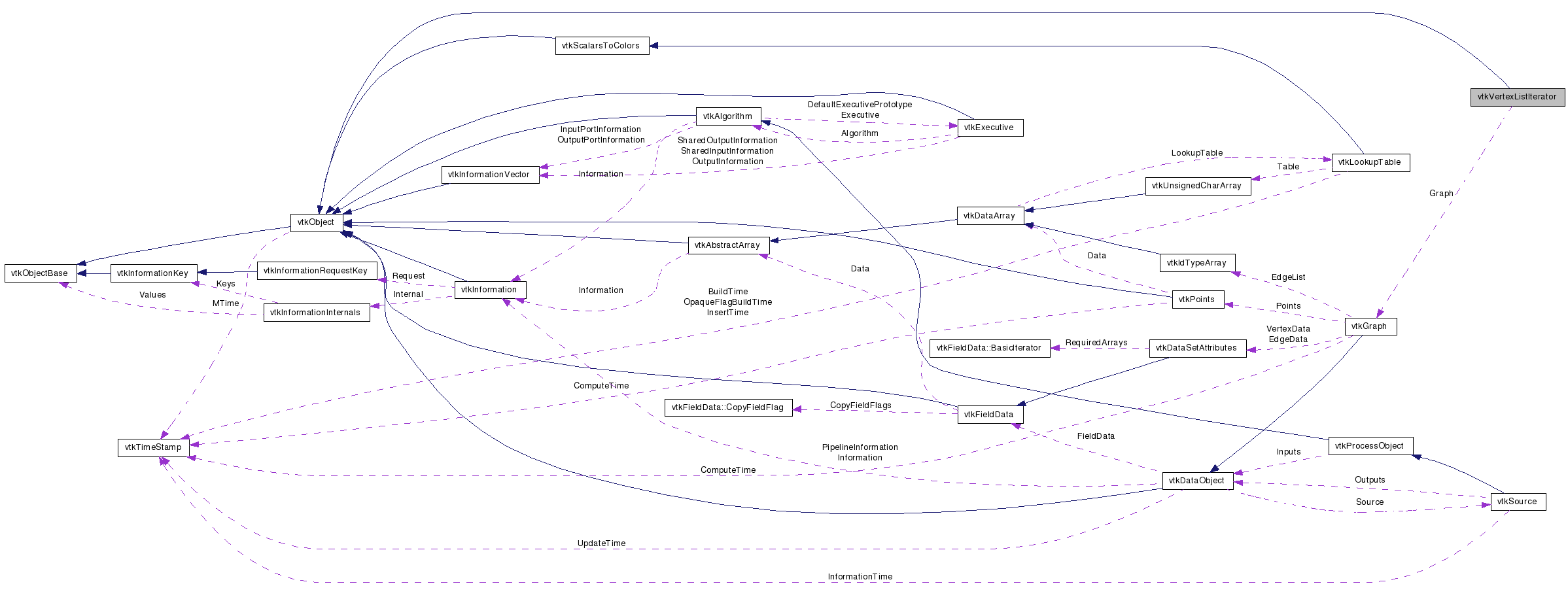

Collaboration diagram for vtkVertexListIterator:

Collaboration graph
[legend]

List of all members.


Detailed Description

Iterates all vertices in a graph.

vtkVertexListIterator iterates through all vertices in a graph. Create an instance of this and call graph->GetVertices(it) to initialize this iterator. You may alternately call SetGraph() to initialize the iterator.

See also:
vtkGraph
Tests:
vtkVertexListIterator (Tests)

Definition at line 45 of file vtkVertexListIterator.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetGraph (vtkGraph *graph)
virtual vtkGraphGetGraph ()
vtkIdType Next ()
bool HasNext ()

Static Public Member Functions

static vtkVertexListIteratorNew ()
static int IsTypeOf (const char *type)
static vtkVertexListIteratorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkVertexListIterator ()
 ~vtkVertexListIterator ()

Protected Attributes

vtkGraphGraph
vtkIdType Current
vtkIdType End

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 49 of file vtkVertexListIterator.h.


Constructor & Destructor Documentation

vtkVertexListIterator::vtkVertexListIterator (  )  [protected]

vtkVertexListIterator::~vtkVertexListIterator (  )  [protected]


Member Function Documentation

static vtkVertexListIterator* vtkVertexListIterator::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkVertexListIterator::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkVertexListIterator::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkVertexListIterator::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkVertexListIterator* vtkVertexListIterator::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkVertexListIterator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkVertexListIterator::SetGraph ( vtkGraph graph  )  [virtual]

Setup the iterator with a graph.

virtual vtkGraph* vtkVertexListIterator::GetGraph (  )  [virtual]

Get the graph associated with this iterator.

vtkIdType vtkVertexListIterator::Next (  )  [inline]

Returns the next edge in the graph.

Definition at line 62 of file vtkVertexListIterator.h.

bool vtkVertexListIterator::HasNext (  )  [inline]

Whether this iterator has more edges.

Definition at line 72 of file vtkVertexListIterator.h.


Member Data Documentation

Definition at line 82 of file vtkVertexListIterator.h.

Definition at line 83 of file vtkVertexListIterator.h.

Definition at line 84 of file vtkVertexListIterator.h.


The documentation for this class was generated from the following file:
