vtkVoxel Class Reference

#include <vtkVoxel.h>

Inheritance diagram for vtkVoxel:

Inheritance graph
[legend]

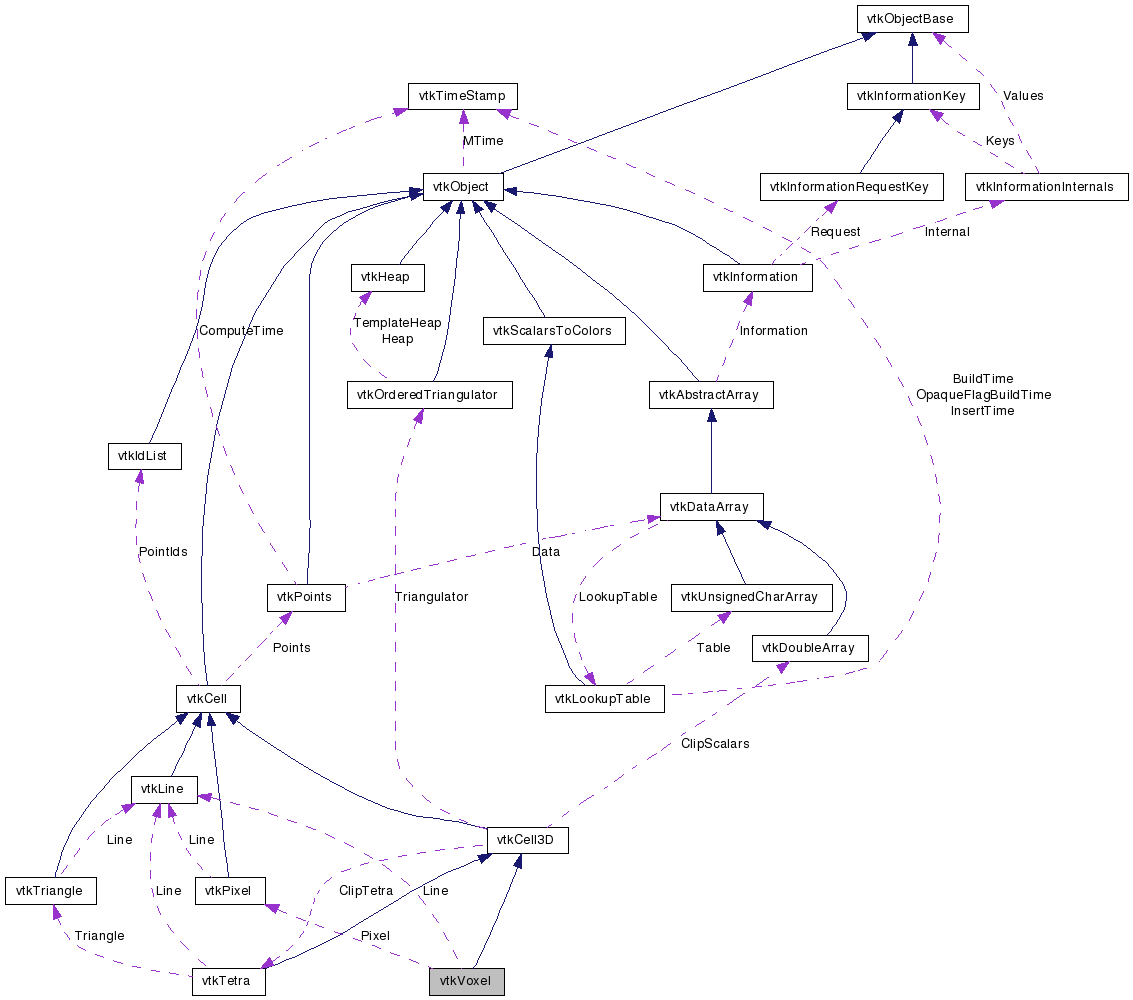

Collaboration diagram for vtkVoxel:

Collaboration graph
[legend]

List of all members.


Detailed Description

a cell that represents a 3D orthogonal parallelepiped

vtkVoxel is a concrete implementation of vtkCell to represent a 3D orthogonal parallelepiped. Unlike vtkHexahedron, vtkVoxel has interior angles of 90 degrees, and sides are parallel to coordinate axes. This results in large increases in computational performance.

See also:
vtkConvexPointSet vtkHexahedron vtkPyramid vtkTetra vtkWedge
Examples:
vtkVoxel (Examples)
Tests:
vtkVoxel (Tests)

Definition at line 41 of file vtkVoxel.h.

static void InterpolationFunctions (double pcoords[3], double weights[8])
static void InterpolationDerivs (double pcoords[3], double derivs[24])
virtual void InterpolateFunctions (double pcoords[3], double weights[8])
virtual void InterpolateDerivs (double pcoords[3], double derivs[24])

Public Types

typedef vtkCell3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void GetEdgePoints (int edgeId, int *&pts)
virtual void GetFacePoints (int faceId, int *&pts)
virtual double * GetParametricCoords ()
int GetCellType ()
int GetCellDimension ()
int GetNumberOfEdges ()
int GetNumberOfFaces ()
vtkCellGetEdge (int edgeId)
vtkCellGetFace (int faceId)
int CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void Contour (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
int EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2, double *weights)
void EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)
void Derivatives (int subId, double pcoords[3], double *values, int dim, double *derivs)

Static Public Member Functions

static vtkVoxelNew ()
static int IsTypeOf (const char *type)
static vtkVoxelSafeDownCast (vtkObject *o)
static int * GetEdgeArray (int edgeId)
static int * GetFaceArray (int faceId)

Protected Member Functions

 vtkVoxel ()
 ~vtkVoxel ()

Protected Attributes

vtkLineLine
vtkPixelPixel

Member Typedef Documentation

Reimplemented from vtkCell3D.

Definition at line 45 of file vtkVoxel.h.


Constructor & Destructor Documentation

vtkVoxel::vtkVoxel (  )  [protected]

vtkVoxel::~vtkVoxel (  )  [protected]


Member Function Documentation

static vtkVoxel* vtkVoxel::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkVoxel::GetClassName (  )  [virtual]

Reimplemented from vtkCell3D.

static int vtkVoxel::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

virtual int vtkVoxel::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

static vtkVoxel* vtkVoxel::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCell3D.

void vtkVoxel::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell3D.

virtual void vtkVoxel::GetEdgePoints ( int  edgeId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

virtual void vtkVoxel::GetFacePoints ( int  faceId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

virtual double* vtkVoxel::GetParametricCoords (  )  [virtual]

See vtkCell3D API for description of these methods.

Reimplemented from vtkCell.

int vtkVoxel::GetCellType (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 57 of file vtkVoxel.h.

int vtkVoxel::GetCellDimension (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

Definition at line 58 of file vtkVoxel.h.

int vtkVoxel::GetNumberOfEdges (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 59 of file vtkVoxel.h.

int vtkVoxel::GetNumberOfFaces (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 60 of file vtkVoxel.h.

vtkCell* vtkVoxel::GetEdge ( int  edgeId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

vtkCell* vtkVoxel::GetFace ( int  faceId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkVoxel::CellBoundary ( int  subId,
double  pcoords[3],
vtkIdList pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkVoxel::Contour ( double  value,
vtkDataArray cellScalars,
vtkPointLocator locator,
vtkCellArray verts,
vtkCellArray lines,
vtkCellArray polys,
vtkPointData inPd,
vtkPointData outPd,
vtkCellData inCd,
vtkIdType  cellId,
vtkCellData outCd
) [virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

int vtkVoxel::EvaluatePosition ( double  x[3],
double *  closestPoint,
int &  subId,
double  pcoords[3],
double &  dist2,
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkVoxel::EvaluateLocation ( int &  subId,
double  pcoords[3],
double  x[3],
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkVoxel::IntersectWithLine ( double  p1[3],
double  p2[3],
double  tol,
double &  t,
double  x[3],
double  pcoords[3],
int &  subId
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkVoxel::Triangulate ( int  index,
vtkIdList ptIds,
vtkPoints pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkVoxel::Derivatives ( int  subId,
double  pcoords[3],
double *  values,
int  dim,
double *  derivs
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

static void vtkVoxel::InterpolationFunctions ( double  pcoords[3],
double  weights[8]
) [static]

Deprecated:
Replaced by vtkVoxel::InterpolateFunctions as of VTK 5.2

static void vtkVoxel::InterpolationDerivs ( double  pcoords[3],
double  derivs[24]
) [static]

Deprecated:
Replaced by vtkVoxel::InterpolateFunctions as of VTK 5.2

virtual void vtkVoxel::InterpolateFunctions ( double  pcoords[3],
double  weights[8]
) [inline, virtual]

Deprecated:
Replaced by vtkVoxel::InterpolateFunctions as of VTK 5.2

Definition at line 90 of file vtkVoxel.h.

virtual void vtkVoxel::InterpolateDerivs ( double  pcoords[3],
double  derivs[24]
) [inline, virtual]

Deprecated:
Replaced by vtkVoxel::InterpolateFunctions as of VTK 5.2

Definition at line 94 of file vtkVoxel.h.

static int* vtkVoxel::GetEdgeArray ( int  edgeId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.

static int* vtkVoxel::GetFaceArray ( int  faceId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.


Member Data Documentation

vtkLine* vtkVoxel::Line [protected]

Definition at line 111 of file vtkVoxel.h.

vtkPixel* vtkVoxel::Pixel [protected]

Definition at line 112 of file vtkVoxel.h.
