vtkXMLImageDataWriter Class Reference

#include <vtkXMLImageDataWriter.h>

Inheritance diagram for vtkXMLImageDataWriter:

Inheritance graph
[legend]

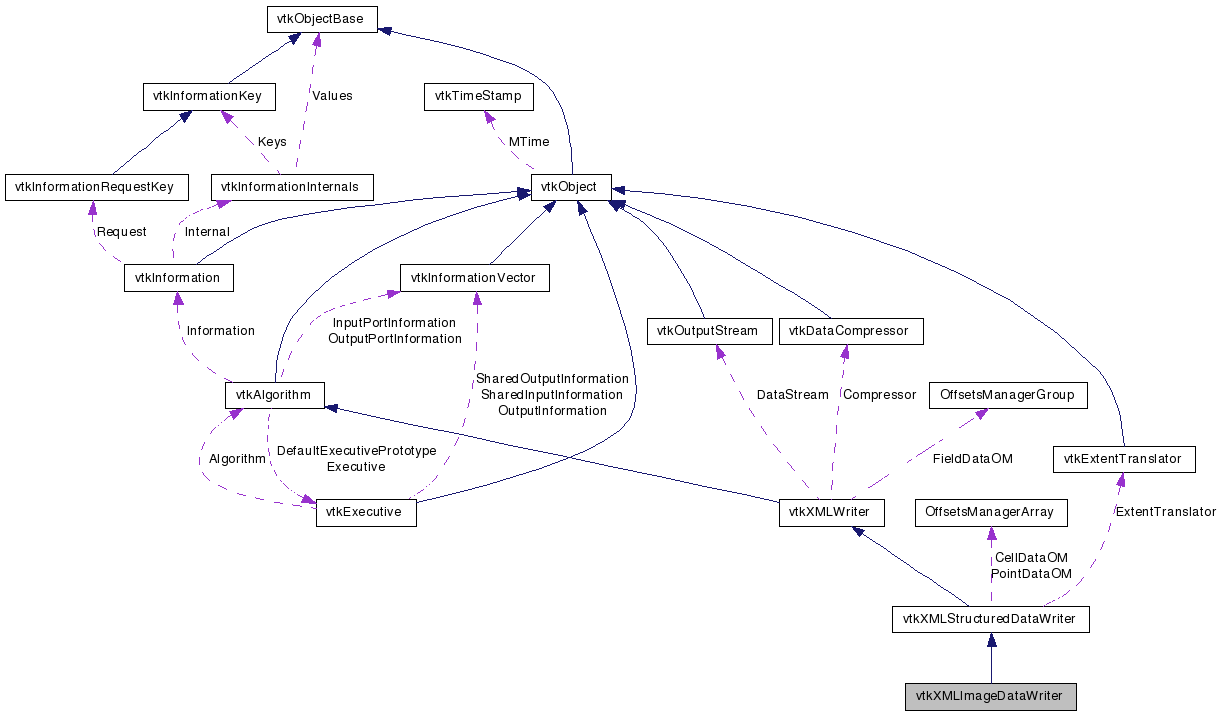

Collaboration diagram for vtkXMLImageDataWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Write VTK XML ImageData files.

vtkXMLImageDataWriter writes the VTK XML ImageData file format. One image data input can be written into one file in any number of streamed pieces. The standard extension for this writer's file format is "vti". This writer is also used to write a single piece of the parallel file format.

See also:
vtkXMLPImageDataWriter
Tests:
vtkXMLImageDataWriter (Tests)

Definition at line 38 of file vtkXMLImageDataWriter.h.


Public Types

typedef vtkXMLStructuredDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
const char * GetDefaultFileExtension ()
vtkImageDataGetInput ()

Static Public Member Functions

static vtkXMLImageDataWriterNew ()
static int IsTypeOf (const char *type)
static vtkXMLImageDataWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLImageDataWriter ()
 ~vtkXMLImageDataWriter ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
void WritePrimaryElementAttributes (ostream &os, vtkIndent indent)
void GetInputExtent (int *extent)
const char * GetDataSetName ()

Member Typedef Documentation

Reimplemented from vtkXMLStructuredDataWriter.

Definition at line 42 of file vtkXMLImageDataWriter.h.


Constructor & Destructor Documentation

vtkXMLImageDataWriter::vtkXMLImageDataWriter (  )  [protected]

vtkXMLImageDataWriter::~vtkXMLImageDataWriter (  )  [protected]


Member Function Documentation

static vtkXMLImageDataWriter* vtkXMLImageDataWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkXMLImageDataWriter::GetClassName (  )  [virtual]

Reimplemented from vtkXMLStructuredDataWriter.

static int vtkXMLImageDataWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataWriter.

virtual int vtkXMLImageDataWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataWriter.

static vtkXMLImageDataWriter* vtkXMLImageDataWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLImageDataWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLStructuredDataWriter.

vtkImageData* vtkXMLImageDataWriter::GetInput (  )

Get/Set the writer's input.

Reimplemented from vtkXMLWriter.

const char* vtkXMLImageDataWriter::GetDefaultFileExtension (  )  [virtual]

Get the default file extension for files written by this writer.

Implements vtkXMLWriter.

virtual int vtkXMLImageDataWriter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

void vtkXMLImageDataWriter::WritePrimaryElementAttributes ( ostream &  os,
vtkIndent  indent
) [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLImageDataWriter::GetInputExtent ( int *  extent  )  [protected, virtual]

const char* vtkXMLImageDataWriter::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLWriter.


The documentation for this class was generated from the following file:
