vtkXYPlotWidget Class Reference

#include <vtkXYPlotWidget.h>

Inheritance diagram for vtkXYPlotWidget:

[legend]

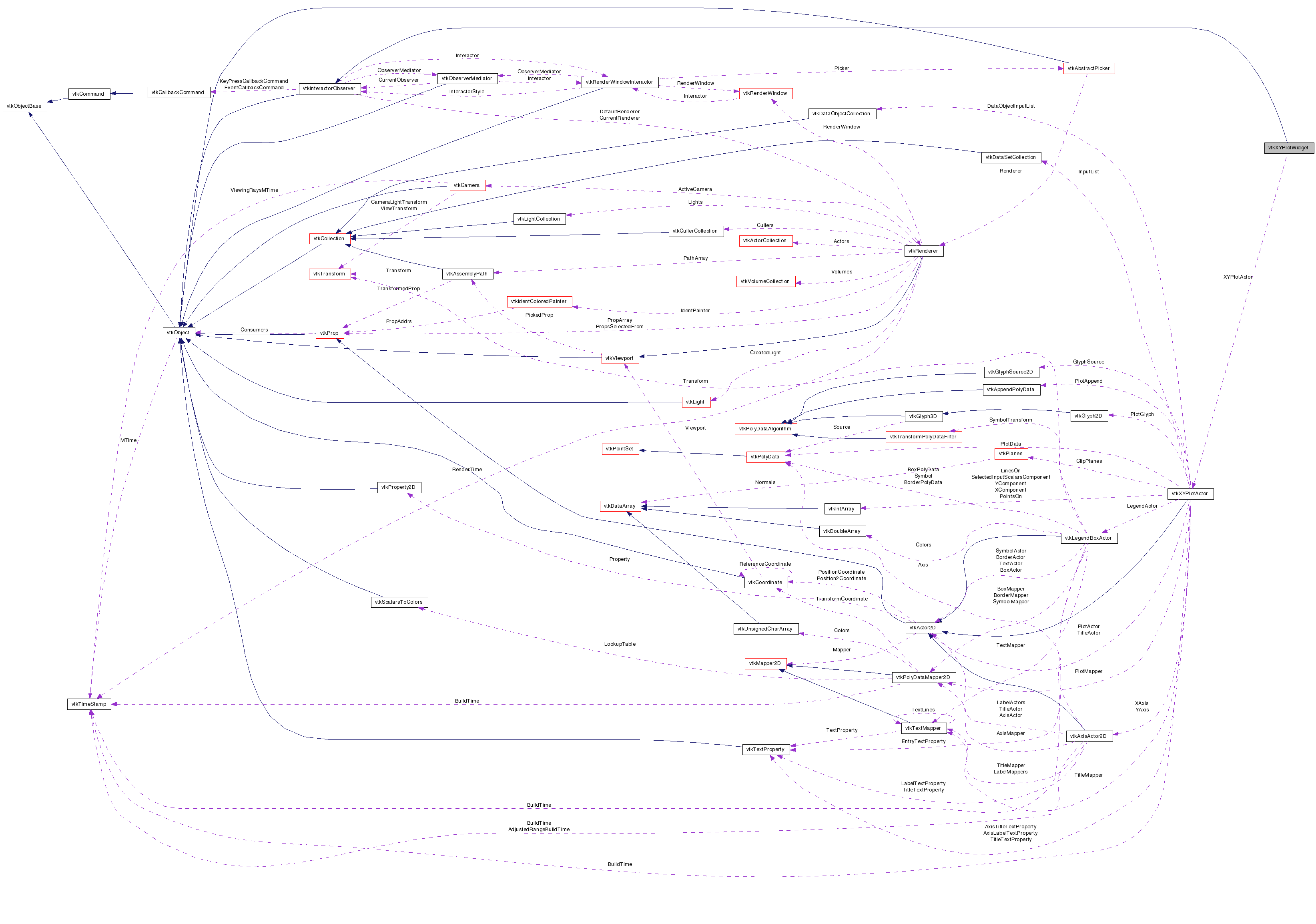

Collaboration diagram for vtkXYPlotWidget:

[legend]

List of all members.

Detailed Description

2D widget for manipulating a XY plot

This class provides support for interactively manipulating the position, size, and orientation of a XY Plot. It listens to Left mouse events and mouse movement. It will change the cursor shape based on its location. If the cursor is over an edge of thea XY plot it will change the cursor shape to a resize edge shape. If the position of a XY plot is moved to be close to the center of one of the four edges of the viewport, then the XY plot will change its orientation to align with that edge. This orientation is sticky in that it will stay that orientation until the position is moved close to another edge.

See also:: vtkInteractorObserver

Events:: vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::EnableEvent

Definition at line 41 of file vtkXYPlotWidget.h.


Public Types
typedef vtkInteractorObserver	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetEnabled (int)

virtual void	SetXYPlotActor (vtkXYPlotActor *)
virtual vtkXYPlotActor *	GetXYPlotActor ()
Static Public Member Functions
static vtkXYPlotWidget *	New ()
static int	IsTypeOf (const char *type)
static vtkXYPlotWidget *	SafeDownCast (vtkObject *o)
Protected Types
enum	WidgetState { Moving = 0, AdjustingP1, AdjustingP2, AdjustingP3, AdjustingP4, AdjustingE1, AdjustingE2, AdjustingE3, AdjustingE4, Inside, Outside }
Protected Member Functions
	vtkXYPlotWidget ()
	~vtkXYPlotWidget ()
void	OnLeftButtonDown ()
void	OnLeftButtonUp ()
void	OnMouseMove ()
int	ComputeStateBasedOnPosition (int X, int Y, int pos1, int pos2)
void	SetCursor (int State)
Static Protected Member Functions
static void	ProcessEvents (vtkObject object, unsigned long event, void clientdata, void *calldata)
Protected Attributes
vtkXYPlotActor *	XYPlotActor
float	StartPosition [2]
int	State

Member Typedef Documentation

typedef vtkInteractorObserver vtkXYPlotWidget::Superclass

Reimplemented from vtkInteractorObserver.

Definition at line 45 of file vtkXYPlotWidget.h.

Member Enumeration Documentation

enum vtkXYPlotWidget::WidgetState [protected]

Enumerator:

Moving
AdjustingP1
AdjustingP2
AdjustingP3
AdjustingP4
AdjustingE1
AdjustingE2
AdjustingE3
AdjustingE4
Inside
Outside

Definition at line 80 of file vtkXYPlotWidget.h.

Constructor & Destructor Documentation

vtkXYPlotWidget::vtkXYPlotWidget ( ) [protected]

vtkXYPlotWidget::~vtkXYPlotWidget ( ) [protected]

Member Function Documentation

static vtkXYPlotWidget* vtkXYPlotWidget::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkXYPlotWidget::GetClassName ( ) [virtual]

Reimplemented from vtkInteractorObserver.

static int vtkXYPlotWidget::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorObserver.

virtual int vtkXYPlotWidget::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorObserver.

static vtkXYPlotWidget* vtkXYPlotWidget::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkInteractorObserver.

void vtkXYPlotWidget::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorObserver.

virtual void vtkXYPlotWidget::SetXYPlotActor ( vtkXYPlotActor * ) [virtual]

Get the XY plot used by this Widget. One is created automatically.

virtual vtkXYPlotActor* vtkXYPlotWidget::GetXYPlotActor ( ) [virtual]

Get the XY plot used by this Widget. One is created automatically.

virtual void vtkXYPlotWidget::SetEnabled ( int ) [virtual]

Methods for turning the interactor observer on and off.

Reimplemented from vtkInteractorObserver.
