vtkCamera Class Reference

#include <vtkCamera.h>

Inheritance diagram for vtkCamera:

Inheritance graph
[legend]

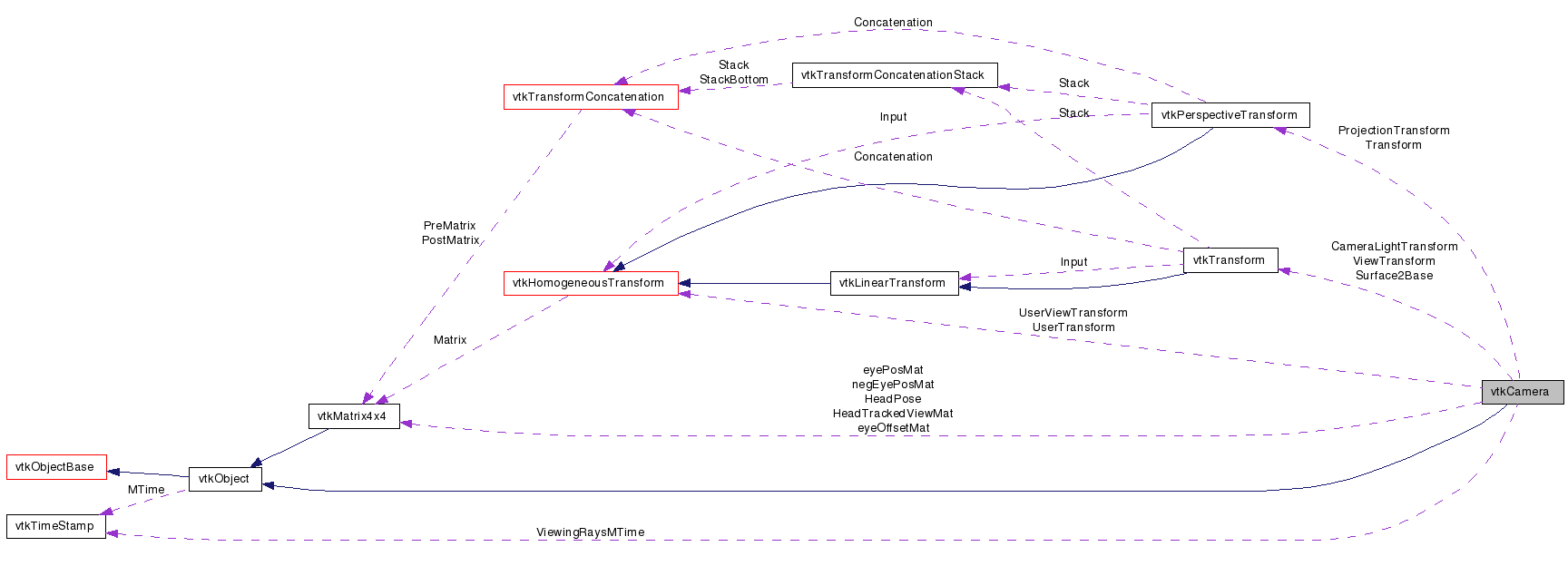

Collaboration diagram for vtkCamera:

Collaboration graph
[legend]

List of all members.


Detailed Description

a virtual camera for 3D rendering

vtkCamera is a virtual camera for 3D rendering. It provides methods to position and orient the view point and focal point. Convenience methods for moving about the focal point also are provided. More complex methods allow the manipulation of the computer graphics model including view up vector, clipping planes, and camera perspective.

See also:
vtkPerspectiveTransform
Examples:
vtkCamera (Examples)
Tests:
vtkCamera (Tests)

Definition at line 47 of file vtkCamera.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void OrthogonalizeViewUp ()
void SetDistance (double)
void Dolly (double value)
void Roll (double angle)
void Azimuth (double angle)
void Yaw (double angle)
void Elevation (double angle)
void Pitch (double angle)
void Zoom (double factor)
void SetObliqueAngles (double alpha, double beta)
void ApplyTransform (vtkTransform *t)
virtual vtkMatrix4x4GetViewTransformMatrix ()
virtual void Render (vtkRenderer *)
unsigned long GetViewingRaysMTime ()
void ViewingRaysModified ()
virtual void GetFrustumPlanes (double aspect, double planes[24])
void ComputeViewPlaneNormal ()
vtkMatrix4x4GetCameraLightTransformMatrix ()
virtual void UpdateViewport (vtkRenderer *vtkNotUsed(ren))
void ComputeProjAndViewParams ()
void ShallowCopy (vtkCamera *source)
void DeepCopy (vtkCamera *source)
void SetPosition (double x, double y, double z)
void SetPosition (const double a[3])
virtual double * GetPosition ()
virtual void GetPosition (double &, double &, double &)
virtual void GetPosition (double[3])
void SetFocalPoint (double x, double y, double z)
void SetFocalPoint (const double a[3])
virtual double * GetFocalPoint ()
virtual void GetFocalPoint (double &, double &, double &)
virtual void GetFocalPoint (double[3])
void SetViewUp (double vx, double vy, double vz)
void SetViewUp (const double a[3])
virtual double * GetViewUp ()
virtual void GetViewUp (double &, double &, double &)
virtual void GetViewUp (double[3])
virtual double GetDistance ()
virtual double * GetDirectionOfProjection ()
virtual void GetDirectionOfProjection (double &, double &, double &)
virtual void GetDirectionOfProjection (double[3])
void SetRoll (double angle)
double GetRoll ()
void SetParallelProjection (int flag)
virtual int GetParallelProjection ()
virtual void ParallelProjectionOn ()
virtual void ParallelProjectionOff ()
void SetUseHorizontalViewAngle (int flag)
virtual int GetUseHorizontalViewAngle ()
virtual void UseHorizontalViewAngleOn ()
virtual void UseHorizontalViewAngleOff ()
void SetViewAngle (double angle)
virtual double GetViewAngle ()
void SetParallelScale (double scale)
virtual double GetParallelScale ()
void SetClippingRange (double dNear, double dFar)
void SetClippingRange (const double a[2])
virtual double * GetClippingRange ()
virtual void GetClippingRange (double &, double &)
virtual void GetClippingRange (double[2])
void SetThickness (double)
virtual double GetThickness ()
void SetWindowCenter (double x, double y)
virtual double * GetWindowCenter ()
virtual void GetWindowCenter (double &, double &)
virtual void GetWindowCenter (double[2])
virtual double * GetViewPlaneNormal ()
virtual void GetViewPlaneNormal (double &, double &, double &)
virtual void GetViewPlaneNormal (double[3])
void SetViewShear (double dxdz, double dydz, double center)
void SetViewShear (double d[3])
virtual double * GetViewShear ()
virtual void GetViewShear (double &, double &, double &)
virtual void GetViewShear (double[3])
virtual void SetEyeAngle (double)
virtual double GetEyeAngle ()
virtual void SetFocalDisk (double)
virtual double GetFocalDisk ()
virtual vtkTransformGetViewTransformObject ()
virtual vtkMatrix4x4GetPerspectiveTransformMatrix (double aspect, double nearz, double farz)
virtual vtkMatrix4x4GetProjectionTransformMatrix (double aspect, double nearz, double farz)
virtual vtkPerspectiveTransformGetProjectionTransformObject (double aspect, double nearz, double farz)
virtual vtkMatrix4x4GetCompositePerspectiveTransformMatrix (double aspect, double nearz, double farz)
virtual vtkMatrix4x4GetCompositeProjectionTransformMatrix (double aspect, double nearz, double farz)
void SetUserViewTransform (vtkHomogeneousTransform *transform)
virtual vtkHomogeneousTransformGetUserViewTransform ()
void SetUserTransform (vtkHomogeneousTransform *transform)
virtual vtkHomogeneousTransformGetUserTransform ()
double * GetOrientation ()
double * GetOrientationWXYZ ()
void SetViewPlaneNormal (double x, double y, double z)
void SetViewPlaneNormal (const double a[3])
virtual void SetLeftEye (int)
virtual int GetLeftEye ()
void SetConfigParams (double o2screen, double o2right, double o2left, double o2top, double o2bottom, double interOccDist, double scale, vtkMatrix4x4 *surfaceRot)
void SetHeadPose (double x00, double x01, double x02, double x03, double x10, double x11, double x12, double x13, double x20, double x21, double x22, double x23, double x30, double x31, double x32, double x33)
virtual void SetHeadTracked (int)
virtual int GetHeadTracked ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCameraSafeDownCast (vtkObject *o)
static vtkCameraNew ()

Protected Member Functions

 vtkCamera ()
 ~vtkCamera ()
vtkMatrix4x4SetTranslation (vtkMatrix4x4 mat)
void ComputeCameraLightTransform ()
void SetSurface2Base (vtkMatrix4x4 *head)
void PartialCopy (vtkCamera *source)
void ComputeDistance ()
void ComputeViewTransform ()
void ComputePerspectiveTransform (double aspect, double nearz, double farz)
void ComputeCompositePerspectiveTransform (double aspect, double nearz, double farz)
void ComputeProjectionTransform (double aspect, double nearz, double farz)
void ComputeCompositeProjectionTransform (double aspect, double nearz, double farz)

Protected Attributes

double WindowCenter [2]
double ObliqueAngles [2]
double FocalPoint [3]
double Position [3]
double ViewUp [3]
double ViewAngle
double ClippingRange [2]
double EyeAngle
int ParallelProjection
double ParallelScale
int Stereo
int LeftEye
double Thickness
double Distance
double DirectionOfProjection [3]
double ViewPlaneNormal [3]
double ViewShear [3]
int UseHorizontalViewAngle
vtkHomogeneousTransformUserTransform
vtkHomogeneousTransformUserViewTransform
vtkTransformViewTransform
vtkPerspectiveTransformProjectionTransform
vtkPerspectiveTransformTransform
vtkTransformCameraLightTransform
double FocalDisk
vtkCameraCallbackCommand * UserViewTransformCallbackCommand
vtkTimeStamp ViewingRaysMTime
int HeadTracked
vtkMatrix4x4HeadPose
vtkTransformSurface2Base
vtkMatrix4x4HeadTrackedViewMat
double AsymLeft
double AsymRight
double AsymBottom
double AsymTop
double EyePos [3]
double O2Screen
double O2Right
double O2Left
double O2Top
double O2Bottom
double EyeOffset
double ScaleFactor
vtkMatrix4x4eyePosMat
vtkMatrix4x4negEyePosMat
vtkMatrix4x4eyeOffsetMat

Friends

class vtkCameraCallbackCommand

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

Definition at line 51 of file vtkCamera.h.


Constructor & Destructor Documentation

vtkCamera::vtkCamera (  )  [protected]

vtkCamera::~vtkCamera (  )  [protected]


Member Function Documentation

void vtkCamera::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

virtual const char* vtkCamera::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

static int vtkCamera::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

virtual int vtkCamera::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

static vtkCamera* vtkCamera::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

static vtkCamera* vtkCamera::New (  )  [static]

Construct camera instance with its focal point at the origin, and position=(0,0,1). The view up is along the y-axis, view angle is 30 degrees, and the clipping range is (.1,1000).

Reimplemented from vtkObject.

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

void vtkCamera::SetPosition ( double  x,
double  y,
double  z
)

Set/Get the position of the camera in world coordinates. The default position is (0,0,1).

void vtkCamera::SetPosition ( const double  a[3]  )  [inline]

Set/Get the position of the camera in world coordinates. The default position is (0,0,1).

Definition at line 62 of file vtkCamera.h.

virtual double* vtkCamera::GetPosition (  )  [virtual]

Set/Get the position of the camera in world coordinates. The default position is (0,0,1).

virtual void vtkCamera::GetPosition ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the position of the camera in world coordinates. The default position is (0,0,1).

virtual void vtkCamera::GetPosition ( double  [3]  )  [virtual]

Set/Get the position of the camera in world coordinates. The default position is (0,0,1).

void vtkCamera::SetFocalPoint ( double  x,
double  y,
double  z
)

Set/Get the focal of the camera in world coordinates. The default focal point is the origin.

void vtkCamera::SetFocalPoint ( const double  a[3]  )  [inline]

Set/Get the focal of the camera in world coordinates. The default focal point is the origin.

Definition at line 71 of file vtkCamera.h.

virtual double* vtkCamera::GetFocalPoint (  )  [virtual]

Set/Get the focal of the camera in world coordinates. The default focal point is the origin.

virtual void vtkCamera::GetFocalPoint ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the focal of the camera in world coordinates. The default focal point is the origin.

virtual void vtkCamera::GetFocalPoint ( double  [3]  )  [virtual]

Set/Get the focal of the camera in world coordinates. The default focal point is the origin.

void vtkCamera::SetViewUp ( double  vx,
double  vy,
double  vz
)

Set/Get the view up direction for the camera. The default is (0,1,0).

void vtkCamera::SetViewUp ( const double  a[3]  )  [inline]

Set/Get the view up direction for the camera. The default is (0,1,0).

Definition at line 80 of file vtkCamera.h.

virtual double* vtkCamera::GetViewUp (  )  [virtual]

Set/Get the view up direction for the camera. The default is (0,1,0).

virtual void vtkCamera::GetViewUp ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the view up direction for the camera. The default is (0,1,0).

virtual void vtkCamera::GetViewUp ( double  [3]  )  [virtual]

Set/Get the view up direction for the camera. The default is (0,1,0).

void vtkCamera::OrthogonalizeViewUp (  )

Recompute the ViewUp vector to force it to be perpendicular to camera->focalpoint vector. Unless you are going to use Yaw or Azimuth on the camera, there is no need to do this.

void vtkCamera::SetDistance ( double   )

Move the focal point so that it is the specified distance from the camera position. This distance must be positive.

virtual double vtkCamera::GetDistance (  )  [virtual]

Return the distance from the camera position to the focal point. This distance is positive.

virtual double* vtkCamera::GetDirectionOfProjection (  )  [virtual]

Get the vector in the direction from the camera position to the focal point. This is usually the opposite of the ViewPlaneNormal, the vector perpendicular to the screen, unless the view is oblique.

virtual void vtkCamera::GetDirectionOfProjection ( double &  ,
double &  ,
double &
) [virtual]

Get the vector in the direction from the camera position to the focal point. This is usually the opposite of the ViewPlaneNormal, the vector perpendicular to the screen, unless the view is oblique.

virtual void vtkCamera::GetDirectionOfProjection ( double  [3]  )  [virtual]

Get the vector in the direction from the camera position to the focal point. This is usually the opposite of the ViewPlaneNormal, the vector perpendicular to the screen, unless the view is oblique.

void vtkCamera::Dolly ( double  value  )

Divide the camera's distance from the focal point by the given dolly value. Use a value greater than one to dolly-in toward the focal point, and use a value less than one to dolly-out away from the focal point.

void vtkCamera::SetRoll ( double  angle  )

Set the roll angle of the camera about the direction of projection.

double vtkCamera::GetRoll (  )

Set the roll angle of the camera about the direction of projection.

void vtkCamera::Roll ( double  angle  )

Rotate the camera about the direction of projection. This will spin the camera about its axis.

void vtkCamera::Azimuth ( double  angle  )

Rotate the camera about the view up vector centered at the focal point. Note that the view up vector is whatever was set via SetViewUp, and is not necessarily perpendicular to the direction of projection. The result is a horizontal rotation of the camera.

void vtkCamera::Yaw ( double  angle  )

Rotate the focal point about the view up vector, using the camera's position as the center of rotation. Note that the view up vector is whatever was set via SetViewUp, and is not necessarily perpendicular to the direction of projection. The result is a horizontal rotation of the scene.

void vtkCamera::Elevation ( double  angle  )

Rotate the camera about the cross product of the negative of the direction of projection and the view up vector, using the focal point as the center of rotation. The result is a vertical rotation of the scene.

void vtkCamera::Pitch ( double  angle  )

Rotate the focal point about the cross product of the view up vector and the direction of projection, using the camera's position as the center of rotation. The result is a vertical rotation of the camera.

void vtkCamera::SetParallelProjection ( int  flag  )

Set/Get the value of the ParallelProjection instance variable. This determines if the camera should do a perspective or parallel projection.

virtual int vtkCamera::GetParallelProjection (  )  [virtual]

Set/Get the value of the ParallelProjection instance variable. This determines if the camera should do a perspective or parallel projection.

virtual void vtkCamera::ParallelProjectionOn (  )  [virtual]

Set/Get the value of the ParallelProjection instance variable. This determines if the camera should do a perspective or parallel projection.

virtual void vtkCamera::ParallelProjectionOff (  )  [virtual]

Set/Get the value of the ParallelProjection instance variable. This determines if the camera should do a perspective or parallel projection.

void vtkCamera::SetUseHorizontalViewAngle ( int  flag  )

Set/Get the value of the UseHorizontalViewAngle instance variable. If set, the camera's view angle represents a horizontal view angle, rather than the default vertical view angle. This is useful if the application uses a display device which whose specs indicate a particular horizontal view angle, or if the application varies the window height but wants to keep the perspective transform unchanges.

virtual int vtkCamera::GetUseHorizontalViewAngle (  )  [virtual]

Set/Get the value of the UseHorizontalViewAngle instance variable. If set, the camera's view angle represents a horizontal view angle, rather than the default vertical view angle. This is useful if the application uses a display device which whose specs indicate a particular horizontal view angle, or if the application varies the window height but wants to keep the perspective transform unchanges.

virtual void vtkCamera::UseHorizontalViewAngleOn (  )  [virtual]

Set/Get the value of the UseHorizontalViewAngle instance variable. If set, the camera's view angle represents a horizontal view angle, rather than the default vertical view angle. This is useful if the application uses a display device which whose specs indicate a particular horizontal view angle, or if the application varies the window height but wants to keep the perspective transform unchanges.

virtual void vtkCamera::UseHorizontalViewAngleOff (  )  [virtual]

Set/Get the value of the UseHorizontalViewAngle instance variable. If set, the camera's view angle represents a horizontal view angle, rather than the default vertical view angle. This is useful if the application uses a display device which whose specs indicate a particular horizontal view angle, or if the application varies the window height but wants to keep the perspective transform unchanges.

void vtkCamera::SetViewAngle ( double  angle  )

Set/Get the camera view angle, which is the angular height of the camera view measured in degrees. The default angle is 30 degrees. This method has no effect in parallel projection mode. The formula for setting the angle up for perfect perspective viewing is: angle = 2*atan((h/2)/d) where h is the height of the RenderWindow (measured by holding a ruler up to your screen) and d is the distance from your eyes to the screen.

virtual double vtkCamera::GetViewAngle (  )  [virtual]

Set/Get the camera view angle, which is the angular height of the camera view measured in degrees. The default angle is 30 degrees. This method has no effect in parallel projection mode. The formula for setting the angle up for perfect perspective viewing is: angle = 2*atan((h/2)/d) where h is the height of the RenderWindow (measured by holding a ruler up to your screen) and d is the distance from your eyes to the screen.

void vtkCamera::SetParallelScale ( double  scale  )

Set/Get the scaling used for a parallel projection, i.e. the height of the viewport in world-coordinate distances. The default is 1. Note that the "scale" parameter works as an "inverse scale" --- larger numbers produce smaller images. This method has no effect in perspective projection mode.

virtual double vtkCamera::GetParallelScale (  )  [virtual]

Set/Get the scaling used for a parallel projection, i.e. the height of the viewport in world-coordinate distances. The default is 1. Note that the "scale" parameter works as an "inverse scale" --- larger numbers produce smaller images. This method has no effect in perspective projection mode.

void vtkCamera::Zoom ( double  factor  )

In perspective mode, decrease the view angle by the specified factor. In parallel mode, decrease the parallel scale by the specified factor. A value greater than 1 is a zoom-in, a value less than 1 is a zoom-out.

void vtkCamera::SetClippingRange ( double  dNear,
double  dFar
)

Set/Get the location of the near and far clipping planes along the direction of projection. Both of these values must be positive. How the clipping planes are set can have a large impact on how well z-buffering works. In particular the front clipping plane can make a very big difference. Setting it to 0.01 when it really could be 1.0 can have a big impact on your z-buffer resolution farther away. The default clipping range is (0.1,1000).

void vtkCamera::SetClippingRange ( const double  a[2]  )  [inline]

Set/Get the location of the near and far clipping planes along the direction of projection. Both of these values must be positive. How the clipping planes are set can have a large impact on how well z-buffering works. In particular the front clipping plane can make a very big difference. Setting it to 0.01 when it really could be 1.0 can have a big impact on your z-buffer resolution farther away. The default clipping range is (0.1,1000).

Definition at line 205 of file vtkCamera.h.

virtual double* vtkCamera::GetClippingRange (  )  [virtual]

Set/Get the location of the near and far clipping planes along the direction of projection. Both of these values must be positive. How the clipping planes are set can have a large impact on how well z-buffering works. In particular the front clipping plane can make a very big difference. Setting it to 0.01 when it really could be 1.0 can have a big impact on your z-buffer resolution farther away. The default clipping range is (0.1,1000).

virtual void vtkCamera::GetClippingRange ( double &  ,
double &
) [virtual]

Set/Get the location of the near and far clipping planes along the direction of projection. Both of these values must be positive. How the clipping planes are set can have a large impact on how well z-buffering works. In particular the front clipping plane can make a very big difference. Setting it to 0.01 when it really could be 1.0 can have a big impact on your z-buffer resolution farther away. The default clipping range is (0.1,1000).

virtual void vtkCamera::GetClippingRange ( double  [2]  )  [virtual]

Set/Get the location of the near and far clipping planes along the direction of projection. Both of these values must be positive. How the clipping planes are set can have a large impact on how well z-buffering works. In particular the front clipping plane can make a very big difference. Setting it to 0.01 when it really could be 1.0 can have a big impact on your z-buffer resolution farther away. The default clipping range is (0.1,1000).

void vtkCamera::SetThickness ( double   )

Set the distance between clipping planes. This method adjusts the far clipping plane to be set a distance 'thickness' beyond the near clipping plane.

virtual double vtkCamera::GetThickness (  )  [virtual]

Set the distance between clipping planes. This method adjusts the far clipping plane to be set a distance 'thickness' beyond the near clipping plane.

void vtkCamera::SetWindowCenter ( double  x,
double  y
)

Set/Get the center of the window in viewport coordinates. The viewport coordinate range is ([-1,+1],[-1,+1]). This method is for if you have one window which consists of several viewports, or if you have several screens which you want to act together as one large screen.

virtual double* vtkCamera::GetWindowCenter (  )  [virtual]

Set/Get the center of the window in viewport coordinates. The viewport coordinate range is ([-1,+1],[-1,+1]). This method is for if you have one window which consists of several viewports, or if you have several screens which you want to act together as one large screen.

virtual void vtkCamera::GetWindowCenter ( double &  ,
double &
) [virtual]

Set/Get the center of the window in viewport coordinates. The viewport coordinate range is ([-1,+1],[-1,+1]). This method is for if you have one window which consists of several viewports, or if you have several screens which you want to act together as one large screen.

virtual void vtkCamera::GetWindowCenter ( double  [2]  )  [virtual]

Set/Get the center of the window in viewport coordinates. The viewport coordinate range is ([-1,+1],[-1,+1]). This method is for if you have one window which consists of several viewports, or if you have several screens which you want to act together as one large screen.

void vtkCamera::SetObliqueAngles ( double  alpha,
double  beta
)

Get/Set the oblique viewing angles. The first angle, alpha, is the angle (measured from the horizontal) that rays along the direction of projection will follow once projected onto the 2D screen. The second angle, beta, is the angle between the view plane and the direction of projection. This creates a shear transform x' = x + dz*cos(alpha)/tan(beta), y' = dz*sin(alpha)/tan(beta) where dz is the distance of the point from the focal plane. The angles are (45,90) by default. Oblique projections commonly use (30,63.435).

void vtkCamera::ApplyTransform ( vtkTransform t  )

Apply a transform to the camera. The camera position, focal-point, and view-up are re-calculated using the transform's matrix to multiply the old points by the new transform.

virtual double* vtkCamera::GetViewPlaneNormal (  )  [virtual]

Get the ViewPlaneNormal. This vector will point opposite to the direction of projection, unless you have created an sheared output view using SetViewShear/SetObliqueAngles.

virtual void vtkCamera::GetViewPlaneNormal ( double &  ,
double &  ,
double &
) [virtual]

Get the ViewPlaneNormal. This vector will point opposite to the direction of projection, unless you have created an sheared output view using SetViewShear/SetObliqueAngles.

virtual void vtkCamera::GetViewPlaneNormal ( double  [3]  )  [virtual]

Get the ViewPlaneNormal. This vector will point opposite to the direction of projection, unless you have created an sheared output view using SetViewShear/SetObliqueAngles.

void vtkCamera::SetViewShear ( double  dxdz,
double  dydz,
double  center
)

Set/get the shear transform of the viewing frustum. Parameters are dx/dz, dy/dz, and center. center is a factor that describes where to shear around. The distance dshear from the camera where no shear occurs is given by (dshear = center * FocalDistance).

void vtkCamera::SetViewShear ( double  d[3]  )

Set/get the shear transform of the viewing frustum. Parameters are dx/dz, dy/dz, and center. center is a factor that describes where to shear around. The distance dshear from the camera where no shear occurs is given by (dshear = center * FocalDistance).

virtual double* vtkCamera::GetViewShear (  )  [virtual]

Set/get the shear transform of the viewing frustum. Parameters are dx/dz, dy/dz, and center. center is a factor that describes where to shear around. The distance dshear from the camera where no shear occurs is given by (dshear = center * FocalDistance).

virtual void vtkCamera::GetViewShear ( double &  ,
double &  ,
double &
) [virtual]

Set/get the shear transform of the viewing frustum. Parameters are dx/dz, dy/dz, and center. center is a factor that describes where to shear around. The distance dshear from the camera where no shear occurs is given by (dshear = center * FocalDistance).

virtual void vtkCamera::GetViewShear ( double  [3]  )  [virtual]

Set/get the shear transform of the viewing frustum. Parameters are dx/dz, dy/dz, and center. center is a factor that describes where to shear around. The distance dshear from the camera where no shear occurs is given by (dshear = center * FocalDistance).

virtual void vtkCamera::SetEyeAngle ( double   )  [virtual]

Set/Get the separation between eyes (in degrees). This is used when generating stereo images.

virtual double vtkCamera::GetEyeAngle (  )  [virtual]

Set/Get the separation between eyes (in degrees). This is used when generating stereo images.

virtual void vtkCamera::SetFocalDisk ( double   )  [virtual]

Set the size of the cameras lens in world coordinates. This is only used when the renderer is doing focal depth rendering. When that is being done the size of the focal disk will effect how significant the depth effects will be.

virtual double vtkCamera::GetFocalDisk (  )  [virtual]

Set the size of the cameras lens in world coordinates. This is only used when the renderer is doing focal depth rendering. When that is being done the size of the focal disk will effect how significant the depth effects will be.

virtual vtkMatrix4x4* vtkCamera::GetViewTransformMatrix (  )  [virtual]

Return the matrix of the view transform. The ViewTransform depends on only three ivars: the Position, the FocalPoint, and the ViewUp vector. All the other methods are there simply for the sake of the users' convenience.

virtual vtkTransform* vtkCamera::GetViewTransformObject (  )  [inline, virtual]

Return the view transform. The ViewTransform depends on only three ivars: the Position, the FocalPoint, and the ViewUp vector. All the other methods are there simply for the sake of the users' convenience.

Definition at line 287 of file vtkCamera.h.

virtual vtkMatrix4x4* vtkCamera::GetPerspectiveTransformMatrix ( double  aspect,
double  nearz,
double  farz
) [virtual]

Return the projection transform matrix, which converts from camera coordinates to viewport coordinates. The 'aspect' is the width/height for the viewport, and the nearz and farz are the Z-buffer values that map to the near and far clipping planes. The viewport coordinates of a point located inside the frustum are in the range ([-1,+1],[-1,+1],[nearz,farz]). WARNING: the name of the method is wrong, it should be GetProjectionTransformMatrix() (it is used also in parallel projection)

Deprecated:
Replaced by GetProjectionTransformMatrix() as of VTK 5.4.

virtual vtkMatrix4x4* vtkCamera::GetProjectionTransformMatrix ( double  aspect,
double  nearz,
double  farz
) [virtual]

Return the projection transform matrix, which converts from camera coordinates to viewport coordinates. The 'aspect' is the width/height for the viewport, and the nearz and farz are the Z-buffer values that map to the near and far clipping planes. The viewport coordinates of a point located inside the frustum are in the range ([-1,+1],[-1,+1],[nearz,farz]).

virtual vtkPerspectiveTransform* vtkCamera::GetProjectionTransformObject ( double  aspect,
double  nearz,
double  farz
) [virtual]

Return the projection transform matrix, which converts from camera coordinates to viewport coordinates. The 'aspect' is the width/height for the viewport, and the nearz and farz are the Z-buffer values that map to the near and far clipping planes. The viewport coordinates of a point located inside the frustum are in the range ([-1,+1],[-1,+1],[nearz,farz]).

virtual vtkMatrix4x4* vtkCamera::GetCompositePerspectiveTransformMatrix ( double  aspect,
double  nearz,
double  farz
) [virtual]

Return the concatenation of the ViewTransform and the ProjectionTransform. This transform will convert world coordinates to viewport coordinates. The 'aspect' is the width/height for the viewport, and the nearz and farz are the Z-buffer values that map to the near and far clipping planes. The viewport coordinates of a point located inside the frustum are in the range ([-1,+1],[-1,+1],[nearz,farz]). WARNING: the name of the method is wrong, it should be GetCompositeProjectionTransformMatrix() (it is used also in parallel projection)

Deprecated:
Replaced by GetCompositeProjectionTransformMatrix() as of VTK 5.4.

virtual vtkMatrix4x4* vtkCamera::GetCompositeProjectionTransformMatrix ( double  aspect,
double  nearz,
double  farz
) [virtual]

Return the concatenation of the ViewTransform and the ProjectionTransform. This transform will convert world coordinates to viewport coordinates. The 'aspect' is the width/height for the viewport, and the nearz and farz are the Z-buffer values that map to the near and far clipping planes. The viewport coordinates of a point located inside the frustum are in the range ([-1,+1],[-1,+1],[nearz,farz]).

void vtkCamera::SetUserViewTransform ( vtkHomogeneousTransform transform  )

In addition to the instance variables such as position and orientation, you can add an additional transformation for your own use. This transformation is concatenated to the camera's ViewTransform

virtual vtkHomogeneousTransform* vtkCamera::GetUserViewTransform (  )  [virtual]

In addition to the instance variables such as position and orientation, you can add an additional transformation for your own use. This transformation is concatenated to the camera's ViewTransform

void vtkCamera::SetUserTransform ( vtkHomogeneousTransform transform  )

In addition to the instance variables such as position and orientation, you can add an additional transformation for your own use. This transformation is concatenated to the camera's ProjectionTransform

virtual vtkHomogeneousTransform* vtkCamera::GetUserTransform (  )  [virtual]

In addition to the instance variables such as position and orientation, you can add an additional transformation for your own use. This transformation is concatenated to the camera's ProjectionTransform

virtual void vtkCamera::Render ( vtkRenderer  )  [inline, virtual]

This method causes the camera to set up whatever is required for viewing the scene. This is actually handled by an subclass of vtkCamera, which is created through New()

Reimplemented in vtkMesaCamera, and vtkOpenGLCamera.

Definition at line 385 of file vtkCamera.h.

unsigned long vtkCamera::GetViewingRaysMTime (  )

Return the MTime that concerns recomputing the view rays of the camera.

void vtkCamera::ViewingRaysModified (  )

Mark that something has changed which requires the view rays to be recomputed.

virtual void vtkCamera::GetFrustumPlanes ( double  aspect,
double  planes[24]
) [virtual]

Get the plane equations that bound the view frustum. The plane normals point inward. The planes array contains six plane equations of the form (Ax+By+Cz+D=0), the first four values are (A,B,C,D) which repeats for each of the planes. The planes are given in the following order: -x,+x,-y,+y,-z,+z. Warning: it means left,right,bottom,top,far,near (NOT near,far) The aspect of the viewport is needed to correctly compute the planes

double* vtkCamera::GetOrientation (  )

Get the orientation of the camera.

double* vtkCamera::GetOrientationWXYZ (  )

Get the orientation of the camera.

void vtkCamera::SetViewPlaneNormal ( double  x,
double  y,
double  z
)

Deprecated:
The view plane normal is automatically set from the DirectionOfProjection according to the ViewShear.

void vtkCamera::SetViewPlaneNormal ( const double  a[3]  )

Deprecated:
The view plane normal is automatically set from the DirectionOfProjection according to the ViewShear.

void vtkCamera::ComputeViewPlaneNormal (  )

This method is called automatically whenever necessary, it should never be used outside of vtkCamera.cxx.

vtkMatrix4x4* vtkCamera::GetCameraLightTransformMatrix (  )

Returns a transformation matrix for a coordinate frame attached to the camera, where the camera is located at (0, 0, 1) looking at the focal point at (0, 0, 0), with up being (0, 1, 0).

virtual void vtkCamera::UpdateViewport ( vtkRenderer vtkNotUsedren  )  [inline, virtual]

Update the viewport

Definition at line 427 of file vtkCamera.h.

virtual void vtkCamera::SetLeftEye ( int   )  [virtual]

Set the Left Eye setting

virtual int vtkCamera::GetLeftEye (  )  [virtual]

Set the Left Eye setting

void vtkCamera::ComputeProjAndViewParams (  )

This function does 3 things. 1. It sets the camera mode to head tracked i.e ensures that the Asymmetric Frustuma are uses. 2. It sets variables like AsymLeft,AsymRight, AsymBottom and Asym to set the HeadTracked Projection Matrix. 3. It sets the View matrix Params

void vtkCamera::SetConfigParams ( double  o2screen,
double  o2right,
double  o2left,
double  o2top,
double  o2bottom,
double  interOccDist,
double  scale,
vtkMatrix4x4 surfaceRot
)

Setting the configuration parameters for head tracked camera

void vtkCamera::SetHeadPose ( double  x00,
double  x01,
double  x02,
double  x03,
double  x10,
double  x11,
double  x12,
double  x13,
double  x20,
double  x21,
double  x22,
double  x23,
double  x30,
double  x31,
double  x32,
double  x33
)

Setting the configuration parameters for head tracked camera

virtual void vtkCamera::SetHeadTracked ( int   )  [virtual]

HeadTracker mode. It impacts on the computation of the transforms. Initial value is false. vtkSetMacro(HeadTracked,bool);

virtual int vtkCamera::GetHeadTracked (  )  [virtual]

HeadTracker mode. It impacts on the computation of the transforms. Initial value is false. vtkSetMacro(HeadTracked,bool);

void vtkCamera::ShallowCopy ( vtkCamera source  )

Copy the properties of `source' into `this'. Copy pointers of matrices.

Precondition:
source_exists!=0

not_this: source!=this

void vtkCamera::DeepCopy ( vtkCamera source  )

Copy the properties of `source' into `this'. Copy the contents of the matrices.

Precondition:
source_exists!=0

not_this: source!=this

void vtkCamera::ComputeDistance (  )  [protected]

These methods should only be used within vtkCamera.cxx.

void vtkCamera::ComputeViewTransform (  )  [protected]

These methods should only be used within vtkCamera.cxx.

void vtkCamera::ComputePerspectiveTransform ( double  aspect,
double  nearz,
double  farz
) [protected]

Deprecated:
Replaced by ComputeProjectionTransform() as of VTK 5.4.

void vtkCamera::ComputeCompositePerspectiveTransform ( double  aspect,
double  nearz,
double  farz
) [protected]

void vtkCamera::ComputeProjectionTransform ( double  aspect,
double  nearz,
double  farz
) [protected]

These methods should only be used within vtkCamera.cxx.

void vtkCamera::ComputeCompositeProjectionTransform ( double  aspect,
double  nearz,
double  farz
) [protected]

These methods should only be used within vtkCamera.cxx.

vtkMatrix4x4* vtkCamera::SetTranslation ( vtkMatrix4x4  mat  )  [protected]

This is aconvenience function to get Identity matrix with translation set to given values

void vtkCamera::ComputeCameraLightTransform (  )  [protected]

void vtkCamera::SetSurface2Base ( vtkMatrix4x4 head  )  [protected]

This method is used to set the transfromation matrix from Display Surface coordinates wrt the Room Base coordinates

void vtkCamera::PartialCopy ( vtkCamera source  )  [protected]

Copy the ivars. Do nothing for the matrices. Called by ShallowCopy() and DeepCopy()

Precondition:
source_exists!=0

not_this: source!=this


Friends And Related Function Documentation

friend class vtkCameraCallbackCommand [friend]

Definition at line 554 of file vtkCamera.h.


Member Data Documentation

double vtkCamera::WindowCenter[2] [protected]

Definition at line 525 of file vtkCamera.h.

double vtkCamera::ObliqueAngles[2] [protected]

Definition at line 526 of file vtkCamera.h.

double vtkCamera::FocalPoint[3] [protected]

Definition at line 527 of file vtkCamera.h.

double vtkCamera::Position[3] [protected]

Definition at line 528 of file vtkCamera.h.

double vtkCamera::ViewUp[3] [protected]

Definition at line 529 of file vtkCamera.h.

double vtkCamera::ViewAngle [protected]

Definition at line 530 of file vtkCamera.h.

double vtkCamera::ClippingRange[2] [protected]

Definition at line 531 of file vtkCamera.h.

double vtkCamera::EyeAngle [protected]

Definition at line 532 of file vtkCamera.h.

Definition at line 533 of file vtkCamera.h.

double vtkCamera::ParallelScale [protected]

Definition at line 534 of file vtkCamera.h.

int vtkCamera::Stereo [protected]

Definition at line 535 of file vtkCamera.h.

int vtkCamera::LeftEye [protected]

Definition at line 536 of file vtkCamera.h.

double vtkCamera::Thickness [protected]

Definition at line 537 of file vtkCamera.h.

double vtkCamera::Distance [protected]

Definition at line 538 of file vtkCamera.h.

double vtkCamera::DirectionOfProjection[3] [protected]

Definition at line 539 of file vtkCamera.h.

double vtkCamera::ViewPlaneNormal[3] [protected]

Definition at line 540 of file vtkCamera.h.

double vtkCamera::ViewShear[3] [protected]

Definition at line 541 of file vtkCamera.h.

Definition at line 542 of file vtkCamera.h.

Definition at line 543 of file vtkCamera.h.

Definition at line 544 of file vtkCamera.h.

Definition at line 546 of file vtkCamera.h.

Definition at line 547 of file vtkCamera.h.

Definition at line 548 of file vtkCamera.h.

Definition at line 549 of file vtkCamera.h.

double vtkCamera::FocalDisk [protected]

Definition at line 551 of file vtkCamera.h.

vtkCameraCallbackCommand* vtkCamera::UserViewTransformCallbackCommand [protected]

Definition at line 553 of file vtkCamera.h.

Definition at line 560 of file vtkCamera.h.

int vtkCamera::HeadTracked [protected]

Definition at line 563 of file vtkCamera.h.

Definition at line 564 of file vtkCamera.h.

Definition at line 565 of file vtkCamera.h.

Definition at line 566 of file vtkCamera.h.

double vtkCamera::AsymLeft [protected]

Definition at line 568 of file vtkCamera.h.

double vtkCamera::AsymRight [protected]

Definition at line 568 of file vtkCamera.h.

double vtkCamera::AsymBottom [protected]

Definition at line 568 of file vtkCamera.h.

double vtkCamera::AsymTop [protected]

Definition at line 568 of file vtkCamera.h.

double vtkCamera::EyePos[3] [protected]

Definition at line 569 of file vtkCamera.h.

double vtkCamera::O2Screen [protected]

Definition at line 570 of file vtkCamera.h.

double vtkCamera::O2Right [protected]

Definition at line 571 of file vtkCamera.h.

double vtkCamera::O2Left [protected]

Definition at line 572 of file vtkCamera.h.

double vtkCamera::O2Top [protected]

Definition at line 573 of file vtkCamera.h.

double vtkCamera::O2Bottom [protected]

Definition at line 574 of file vtkCamera.h.

double vtkCamera::EyeOffset [protected]

Definition at line 575 of file vtkCamera.h.

double vtkCamera::ScaleFactor [protected]

Definition at line 576 of file vtkCamera.h.

Definition at line 579 of file vtkCamera.h.

Definition at line 580 of file vtkCamera.h.

Definition at line 581 of file vtkCamera.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:30:15 2011 for VTK by  doxygen 1.5.6
