vtkChart Class Reference

#include <vtkChart.h>

Inheritance diagram for vtkChart:

Inheritance graph
[legend]

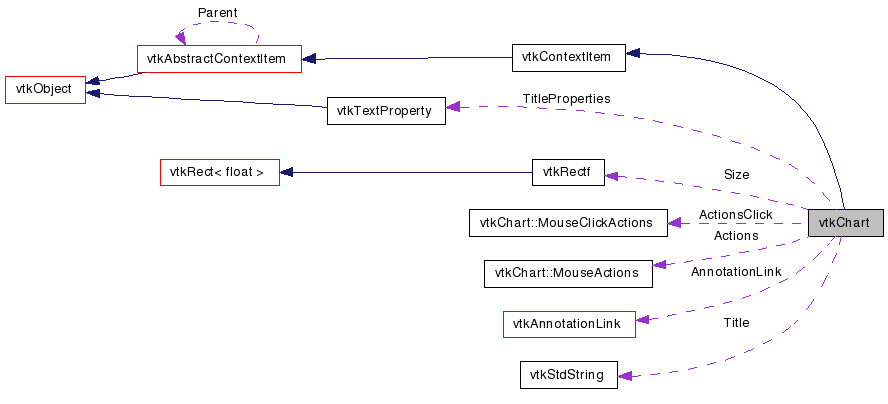

Collaboration diagram for vtkChart:

Collaboration graph
[legend]

List of all members.


Detailed Description

Factory class for drawing 2D charts.

This defines the interface for a chart.

Examples:
vtkChart (Examples)
Tests:
vtkChart (Tests)

Definition at line 46 of file vtkChart.h.


Public Types

typedef vtkContextItem Superclass
enum  { LINE, POINTS, BAR, STACKED }
enum  { PAN = 0, ZOOM, SELECT, NOTIFY }

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual bool Paint (vtkContext2D *painter)=0
virtual vtkPlotAddPlot (int type)
virtual vtkIdType AddPlot (vtkPlot *plot)
virtual bool RemovePlot (vtkIdType index)
virtual bool RemovePlotInstance (vtkPlot *plot)
virtual void ClearPlots ()
virtual vtkPlotGetPlot (vtkIdType index)
virtual vtkIdType GetNumberOfPlots ()
virtual vtkAxisGetAxis (int axisIndex)
virtual vtkIdType GetNumberOfAxes ()
virtual void RecalculateBounds ()
virtual void SetAnnotationLink (vtkAnnotationLink *link)
virtual vtkChartLegendGetLegend ()
void SetBorders (int left, int bottom, int right, int top)
void SetSize (const vtkRectf &rect)
vtkRectf GetSize ()
virtual void SetActionToButton (int action, int button)
virtual int GetActionToButton (int action)
virtual void SetClickActionToButton (int action, int button)
virtual int GetClickActionToButton (int action)
virtual vtkAnnotationLinkGetAnnotationLink ()
virtual void SetGeometry (int, int)
void SetGeometry (int[2])
virtual int * GetGeometry ()
virtual void GetGeometry (int &, int &)
virtual void GetGeometry (int[2])
virtual void SetPoint1 (int, int)
void SetPoint1 (int[2])
virtual int * GetPoint1 ()
virtual void GetPoint1 (int &, int &)
virtual void GetPoint1 (int[2])
virtual void SetPoint2 (int, int)
void SetPoint2 (int[2])
virtual int * GetPoint2 ()
virtual void GetPoint2 (int &, int &)
virtual void GetPoint2 (int[2])
virtual void SetShowLegend (bool visible)
virtual bool GetShowLegend ()
virtual void SetTitle (const vtkStdString &title)
virtual vtkStdString GetTitle ()
virtual vtkTextPropertyGetTitleProperties ()
void SetBottomBorder (int border)
void SetTopBorder (int border)
void SetLeftBorder (int border)
void SetRightBorder (int border)
virtual void SetAutoSize (bool)
virtual bool GetAutoSize ()
virtual void SetRenderEmpty (bool)
virtual bool GetRenderEmpty ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkChartSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkChart ()
 ~vtkChart ()
bool CalculatePlotTransform (vtkAxis *x, vtkAxis *y, vtkTransform2D *transform)

Protected Attributes

vtkAnnotationLinkAnnotationLink
int Geometry [2]
int Point1 [2]
int Point2 [2]
bool ShowLegend
vtkStdString Title
vtkTextPropertyTitleProperties
vtkRectf Size
bool AutoSize
bool RenderEmpty
MouseActions Actions
MouseClickActions ActionsClick

Classes

class  MouseActions
class  MouseClickActions

Member Typedef Documentation

Reimplemented from vtkContextItem.

Reimplemented in vtkChartHistogram2D, vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

Definition at line 49 of file vtkChart.h.


Member Enumeration Documentation

anonymous enum

Enum of the available chart types

Enumerator:
LINE
POINTS
BAR
STACKED

Definition at line 55 of file vtkChart.h.

anonymous enum

Enum of valid chart action types

Enumerator:
PAN
ZOOM
SELECT
NOTIFY

Definition at line 64 of file vtkChart.h.


Constructor & Destructor Documentation

vtkChart::vtkChart (  )  [protected]

vtkChart::~vtkChart (  )  [protected]


Member Function Documentation

virtual const char* vtkChart::GetClassName (  )  [virtual]

static int vtkChart::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartHistogram2D, vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

virtual int vtkChart::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartHistogram2D, vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

static vtkChart* vtkChart::SafeDownCast ( vtkObject o  )  [static]

virtual void vtkChart::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkContextItem.

Reimplemented in vtkChartHistogram2D, vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

virtual bool vtkChart::Paint ( vtkContext2D painter  )  [pure virtual]

Paint event for the chart, called whenever the chart needs to be drawn

Reimplemented from vtkAbstractContextItem.

Implemented in vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

virtual vtkPlot* vtkChart::AddPlot ( int  type  )  [virtual]

Add a plot to the chart, defaults to using the name of the y column

Reimplemented in vtkChartPie, and vtkChartXY.

virtual vtkIdType vtkChart::AddPlot ( vtkPlot plot  )  [virtual]

Add a plot to the chart. Return the index of the plot, -1 if it failed.

Reimplemented in vtkChartPie, and vtkChartXY.

virtual bool vtkChart::RemovePlot ( vtkIdType  index  )  [virtual]

Remove the plot at the specified index, returns true if successful, false if the index was invalid.

Reimplemented in vtkChartXY.

virtual bool vtkChart::RemovePlotInstance ( vtkPlot plot  )  [virtual]

Remove the given plot. Returns true if successful, false if the plot was not contained in this chart. Note, the base implementation of this method performs a linear search to locate the plot.

virtual void vtkChart::ClearPlots (  )  [virtual]

Remove all plots from the chart.

Reimplemented in vtkChartXY.

virtual vtkPlot* vtkChart::GetPlot ( vtkIdType  index  )  [virtual]

Get the plot at the specified index, returns null if the index is invalid.

Reimplemented in vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

virtual vtkIdType vtkChart::GetNumberOfPlots (  )  [virtual]

Get the number of plots the chart contains.

Reimplemented in vtkChartParallelCoordinates, vtkChartPie, and vtkChartXY.

virtual vtkAxis* vtkChart::GetAxis ( int  axisIndex  )  [virtual]

Get the axis specified by axisIndex. 0 is x, 1 is y. This should probably be improved either using a string or enum to select the axis.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual vtkIdType vtkChart::GetNumberOfAxes (  )  [virtual]

Get the number of axes in the current chart.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual void vtkChart::RecalculateBounds (  )  [virtual]

Request that the chart recalculates the range of its axes. Especially useful in applications after the parameters of plots have been modified.

Reimplemented in vtkChartParallelCoordinates, and vtkChartXY.

virtual void vtkChart::SetAnnotationLink ( vtkAnnotationLink link  )  [virtual]

Set the vtkAnnotationLink for the chart.

virtual vtkAnnotationLink* vtkChart::GetAnnotationLink (  )  [virtual]

Get the vtkAnnotationLink for the chart.

virtual void vtkChart::SetGeometry ( int  ,
int
) [virtual]

Set/get the width and the height of the chart.

void vtkChart::SetGeometry ( int  [2]  )

Set/get the width and the height of the chart.

virtual int* vtkChart::GetGeometry (  )  [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::GetGeometry ( int &  ,
int &
) [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::GetGeometry ( int  [2]  )  [virtual]

Set/get the width and the height of the chart.

virtual void vtkChart::SetPoint1 ( int  ,
int
) [virtual]

Set/get the first point in the chart (the bottom left).

void vtkChart::SetPoint1 ( int  [2]  )

Set/get the first point in the chart (the bottom left).

virtual int* vtkChart::GetPoint1 (  )  [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::GetPoint1 ( int &  ,
int &
) [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::GetPoint1 ( int  [2]  )  [virtual]

Set/get the first point in the chart (the bottom left).

virtual void vtkChart::SetPoint2 ( int  ,
int
) [virtual]

Set/get the second point in the chart (the top right).

void vtkChart::SetPoint2 ( int  [2]  )

Set/get the second point in the chart (the top right).

virtual int* vtkChart::GetPoint2 (  )  [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::GetPoint2 ( int &  ,
int &
) [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::GetPoint2 ( int  [2]  )  [virtual]

Set/get the second point in the chart (the top right).

virtual void vtkChart::SetShowLegend ( bool  visible  )  [virtual]

Set/get whether the chart should draw a legend.

Reimplemented in vtkChartPie, and vtkChartXY.

virtual bool vtkChart::GetShowLegend (  )  [virtual]

Set/get whether the chart should draw a legend.

virtual vtkChartLegend* vtkChart::GetLegend (  )  [virtual]

Get the legend for the chart, if available. Can return NULL if there is no legend.

Reimplemented in vtkChartPie, and vtkChartXY.

virtual void vtkChart::SetTitle ( const vtkStdString title  )  [virtual]

Get/set the title text of the chart.

virtual vtkStdString vtkChart::GetTitle (  )  [virtual]

Get/set the title text of the chart.

virtual vtkTextProperty* vtkChart::GetTitleProperties (  )  [virtual]

Get the vtkTextProperty that governs how the chart title is displayed.

void vtkChart::SetBottomBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetTopBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetLeftBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetRightBorder ( int  border  )

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetBorders ( int  left,
int  bottom,
int  right,
int  top
)

Set/get the borders of the chart (space in pixels around the chart).

void vtkChart::SetSize ( const vtkRectf rect  )

Set the size of the chart. The rect argument specifies the bottom corner, width and height of the chart. The borders will be laid out within the specified rectangle.

vtkRectf vtkChart::GetSize (  )

Get the current size of the chart.

virtual void vtkChart::SetAutoSize ( bool   )  [virtual]

Set/get whether the chart should automatically resize to fill the current render window. Default is true.

virtual bool vtkChart::GetAutoSize (  )  [virtual]

Set/get whether the chart should automatically resize to fill the current render window. Default is true.

virtual void vtkChart::SetRenderEmpty ( bool   )  [virtual]

Set/get whether the chart should still render its axes and decorations even if the chart has no visible plots. Default is false (do not render an empty plot). Note that if you wish to render axes for an empty plot you should also set AutoSize to false, as that will hide all axes for an empty plot.

virtual bool vtkChart::GetRenderEmpty (  )  [virtual]

Set/get whether the chart should still render its axes and decorations even if the chart has no visible plots. Default is false (do not render an empty plot). Note that if you wish to render axes for an empty plot you should also set AutoSize to false, as that will hide all axes for an empty plot.

virtual void vtkChart::SetActionToButton ( int  action,
int  button
) [virtual]

Assign action types to mouse buttons. Available action types are PAN, ZOOM and SELECT in the chart enum, the default assigns the LEFT_BUTTON to PAN, MIDDLE_BUTTON to ZOOM and RIGHT_BUTTON to SELECT. Valid mouse enums are in the vtkContextMouseEvent class. Note that only one mouse button can be assigned to each action, an action will have -1 (invalid button) assigned if it had the same button as the one assigned to a different action.

virtual int vtkChart::GetActionToButton ( int  action  )  [virtual]

Get the mouse button associated with the supplied action. The mouse button enum is from vtkContextMouseEvent, and the action enum is from vtkChart.

virtual void vtkChart::SetClickActionToButton ( int  action,
int  button
) [virtual]

Assign action types to single mouse clicks. Available action types are SELECT and NOTIFY in the chart enum. The default assigns the LEFT_BUTTON to NOTIFY, and the RIGHT_BUTTON to SELECT.

virtual int vtkChart::GetClickActionToButton ( int  action  )  [virtual]

Get the mouse button associated with the supplied click action. The mouse button enum is from vtkContextMouseEvent, and the action enum is from vtkChart.

bool vtkChart::CalculatePlotTransform ( vtkAxis x,
vtkAxis y,
vtkTransform2D transform
) [protected]

Given the x and y vtkAxis, and a transform, calculate the transform that the points in a chart would need to be drawn within the axes. This assumes that the axes have the correct start and end positions, and that they are perpendicular.


Member Data Documentation

Our annotation link, used for sharing selections etc.

Definition at line 238 of file vtkChart.h.

int vtkChart::Geometry[2] [protected]

The width and the height of the chart.

Definition at line 241 of file vtkChart.h.

int vtkChart::Point1[2] [protected]

The position of the lower left corner of the chart.

Definition at line 244 of file vtkChart.h.

int vtkChart::Point2[2] [protected]

The position of the upper right corner of the chart.

Definition at line 247 of file vtkChart.h.

bool vtkChart::ShowLegend [protected]

Display the legend?

Definition at line 250 of file vtkChart.h.

The title of the chart

Definition at line 253 of file vtkChart.h.

The text properties associated with the chart

Definition at line 256 of file vtkChart.h.

vtkRectf vtkChart::Size [protected]

Definition at line 258 of file vtkChart.h.

bool vtkChart::AutoSize [protected]

Definition at line 259 of file vtkChart.h.

bool vtkChart::RenderEmpty [protected]

Definition at line 260 of file vtkChart.h.

Definition at line 285 of file vtkChart.h.

Definition at line 286 of file vtkChart.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:30:49 2011 for VTK by  doxygen 1.5.6
