vtkGlyph3D Class Reference

#include <vtkGlyph3D.h>

Inheritance diagram for vtkGlyph3D:

Inheritance graph
[legend]

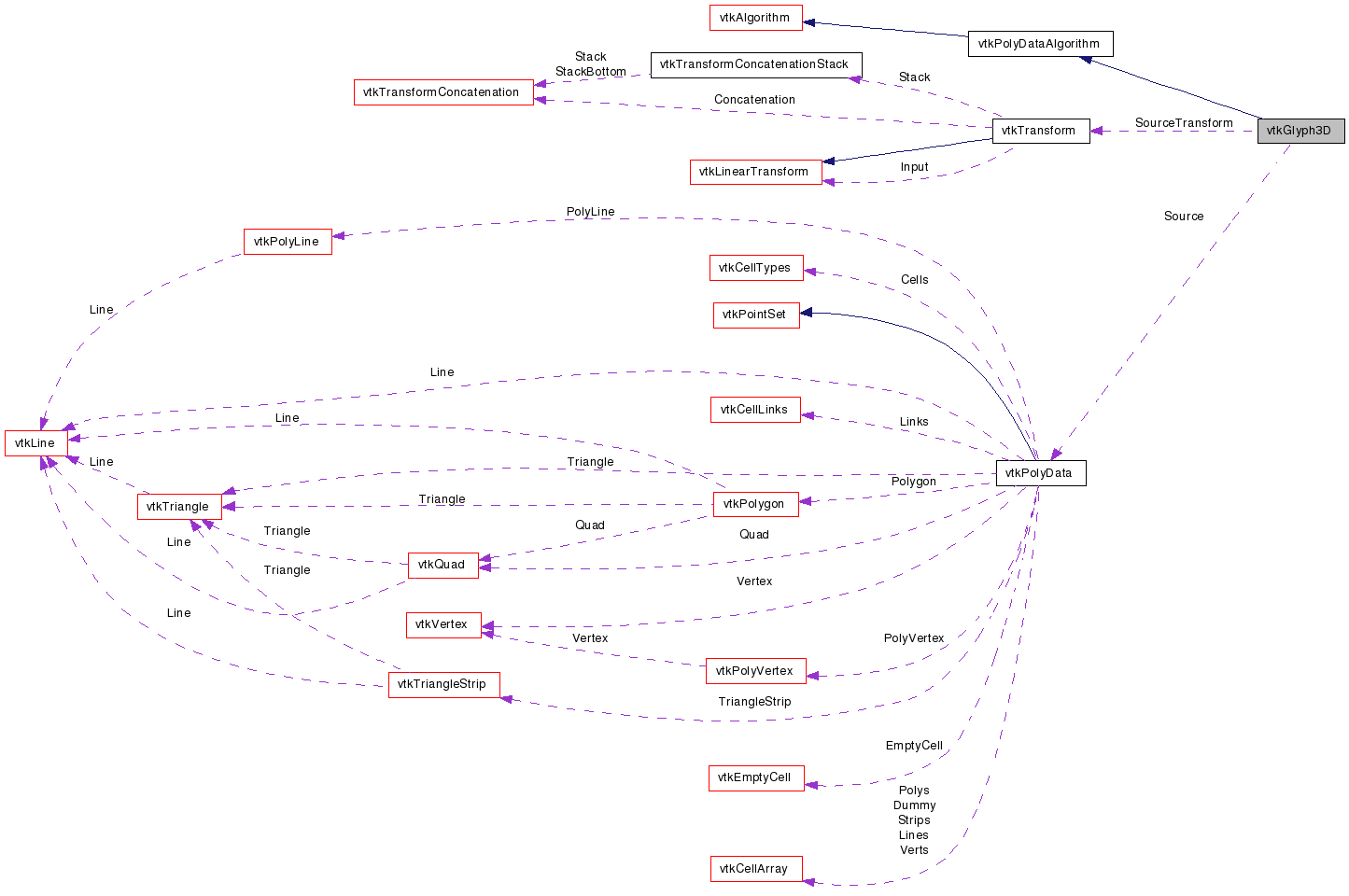

Collaboration diagram for vtkGlyph3D:

Collaboration graph
[legend]

List of all members.


Detailed Description

copy oriented and scaled glyph geometry to every input point

vtkGlyph3D is a filter that copies a geometric representation (called a glyph) to every point in the input dataset. The glyph is defined with polygonal data from a source filter input. The glyph may be oriented along the input vectors or normals, and it may be scaled according to scalar data or vector magnitude. More than one glyph may be used by creating a table of source objects, each defining a different glyph. If a table of glyphs is defined, then the table can be indexed into by using either scalar value or vector magnitude.

To use this object you'll have to provide an input dataset and a source to define the glyph. Then decide whether you want to scale the glyph and how to scale the glyph (using scalar value or vector magnitude). Next decide whether you want to orient the glyph, and whether to use the vector data or normal data to orient it. Finally, decide whether to use a table of glyphs, or just a single glyph. If you use a table of glyphs, you'll have to decide whether to index into it with scalar value or with vector magnitude.

Warning:
The scaling of the glyphs is controlled by the ScaleFactor ivar multiplied by the scalar value at each point (if VTK_SCALE_BY_SCALAR is set), or multiplied by the vector magnitude (if VTK_SCALE_BY_VECTOR is set), Alternatively (if VTK_SCALE_BY_VECTORCOMPONENTS is set), the scaling may be specified for x,y,z using the vector components. The scale factor can be further controlled by enabling clamping using the Clamping ivar. If clamping is enabled, the scale is normalized by the Range ivar, and then multiplied by the scale factor. The normalization process includes clamping the scale value between (0,1).

Typically this object operates on input data with scalar and/or vector data. However, scalar and/or vector aren't necessary, and it can be used to copy data from a single source to each point. In this case the scale factor can be used to uniformly scale the glyphs.

The object uses "vector" data to scale glyphs, orient glyphs, and/or index into a table of glyphs. You can choose to use either the vector or normal data at each input point. Use the method SetVectorModeToUseVector() to use the vector input data, and SetVectorModeToUseNormal() to use the normal input data.

If you do use a table of glyphs, make sure to set the Range ivar to make sure the index into the glyph table is computed correctly.

You can turn off scaling of the glyphs completely by using the Scaling ivar. You can also turn off scaling due to data (either vector or scalar) by using the SetScaleModeToDataScalingOff() method.

You can set what arrays to use for the scalars, vectors, normals, and color scalars by using the SetInputArrayToProcess methods in vtkAlgorithm. The first array is scalars, the next vectors, the next normals and finally color scalars.

See also:
vtkTensorGlyph
Examples:
vtkGlyph3D (Examples)
Tests:
vtkGlyph3D (Tests)

Definition at line 109 of file vtkGlyph3D.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetSource (vtkPolyData *pd)
void SetSource (int id, vtkPolyData *pd)
vtkPolyDataGetSource (int id=0)
virtual int IsPointVisible (vtkDataSet *, vtkIdType)
virtual unsigned long GetMTime ()
void SetSourceConnection (int id, vtkAlgorithmOutput *algOutput)
void SetSourceConnection (vtkAlgorithmOutput *algOutput)
virtual void SetScaling (int)
virtual void ScalingOn ()
virtual void ScalingOff ()
virtual int GetScaling ()
virtual void SetScaleMode (int)
virtual int GetScaleMode ()
void SetScaleModeToScaleByScalar ()
void SetScaleModeToScaleByVector ()
void SetScaleModeToScaleByVectorComponents ()
void SetScaleModeToDataScalingOff ()
const char * GetScaleModeAsString ()
virtual void SetColorMode (int)
virtual int GetColorMode ()
void SetColorModeToColorByScale ()
void SetColorModeToColorByScalar ()
void SetColorModeToColorByVector ()
const char * GetColorModeAsString ()
virtual void SetScaleFactor (double)
virtual double GetScaleFactor ()
virtual void SetRange (double, double)
void SetRange (double[2])
virtual double * GetRange ()
virtual void GetRange (double data[2])
virtual void SetOrient (int)
virtual void OrientOn ()
virtual void OrientOff ()
virtual int GetOrient ()
virtual void SetClamping (int)
virtual void ClampingOn ()
virtual void ClampingOff ()
virtual int GetClamping ()
virtual void SetVectorMode (int)
virtual int GetVectorMode ()
void SetVectorModeToUseVector ()
void SetVectorModeToUseNormal ()
void SetVectorModeToVectorRotationOff ()
const char * GetVectorModeAsString ()
virtual void SetIndexMode (int)
virtual int GetIndexMode ()
void SetIndexModeToScalar ()
void SetIndexModeToVector ()
void SetIndexModeToOff ()
const char * GetIndexModeAsString ()
virtual void SetGeneratePointIds (int)
virtual int GetGeneratePointIds ()
virtual void GeneratePointIdsOn ()
virtual void GeneratePointIdsOff ()
virtual void SetPointIdsName (const char *)
virtual char * GetPointIdsName ()
virtual void SetFillCellData (int)
virtual int GetFillCellData ()
virtual void FillCellDataOn ()
virtual void FillCellDataOff ()
void SetSourceTransform (vtkTransform *)
virtual vtkTransformGetSourceTransform ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkGlyph3DSafeDownCast (vtkObject *o)
static vtkGlyph3DNew ()

Protected Member Functions

 vtkGlyph3D ()
 ~vtkGlyph3D ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int, vtkInformation *)
vtkPolyDataGetSource (int idx, vtkInformationVector *sourceInfo)

Protected Attributes

vtkPolyData ** Source
int Scaling
int ScaleMode
int ColorMode
double ScaleFactor
double Range [2]
int Orient
int VectorMode
int Clamping
int IndexMode
int GeneratePointIds
int FillCellData
char * PointIdsName
vtkTransformSourceTransform

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

Definition at line 112 of file vtkGlyph3D.h.


Constructor & Destructor Documentation

vtkGlyph3D::vtkGlyph3D (  )  [protected]

vtkGlyph3D::~vtkGlyph3D (  )  [protected]


Member Function Documentation

virtual const char* vtkGlyph3D::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static int vtkGlyph3D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

virtual int vtkGlyph3D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static vtkGlyph3D* vtkGlyph3D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

void vtkGlyph3D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static vtkGlyph3D* vtkGlyph3D::New (  )  [static]

Construct object with scaling on, scaling mode is by scalar value, scale factor = 1.0, the range is (0,1), orient geometry is on, and orientation is by vector. Clamping and indexing are turned off. No initial sources are defined.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

void vtkGlyph3D::SetSource ( vtkPolyData pd  )  [inline]

Set the source to use for he glyph. Old style. See SetSourceConnection.

Definition at line 123 of file vtkGlyph3D.h.

void vtkGlyph3D::SetSource ( int  id,
vtkPolyData pd
)

Specify a source object at a specified table location. Old style. See SetSourceConnection.

void vtkGlyph3D::SetSourceConnection ( int  id,
vtkAlgorithmOutput algOutput
)

Specify a source object at a specified table location. New style. Source connection is stored in port 1. This method is equivalent to SetInputConnection(1, id, outputPort).

void vtkGlyph3D::SetSourceConnection ( vtkAlgorithmOutput algOutput  )  [inline]

Specify a source object at a specified table location. New style. Source connection is stored in port 1. This method is equivalent to SetInputConnection(1, id, outputPort).

Definition at line 134 of file vtkGlyph3D.h.

vtkPolyData* vtkGlyph3D::GetSource ( int  id = 0  )

Get a pointer to a source object at a specified table location.

virtual void vtkGlyph3D::SetScaling ( int   )  [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::ScalingOn (  )  [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::ScalingOff (  )  [virtual]

Turn on/off scaling of source geometry.

virtual int vtkGlyph3D::GetScaling (  )  [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::SetScaleMode ( int   )  [virtual]

Either scale by scalar or by vector/normal magnitude.

virtual int vtkGlyph3D::GetScaleMode (  )  [virtual]

Either scale by scalar or by vector/normal magnitude.

void vtkGlyph3D::SetScaleModeToScaleByScalar (  )  [inline]

Either scale by scalar or by vector/normal magnitude.

Definition at line 154 of file vtkGlyph3D.h.

void vtkGlyph3D::SetScaleModeToScaleByVector (  )  [inline]

Either scale by scalar or by vector/normal magnitude.

Definition at line 156 of file vtkGlyph3D.h.

void vtkGlyph3D::SetScaleModeToScaleByVectorComponents (  )  [inline]

Either scale by scalar or by vector/normal magnitude.

Definition at line 158 of file vtkGlyph3D.h.

void vtkGlyph3D::SetScaleModeToDataScalingOff (  )  [inline]

Either scale by scalar or by vector/normal magnitude.

Definition at line 160 of file vtkGlyph3D.h.

const char * vtkGlyph3D::GetScaleModeAsString ( void   )  [inline]

Return the method of scaling as a descriptive character string.

Definition at line 305 of file vtkGlyph3D.h.

virtual void vtkGlyph3D::SetColorMode ( int   )  [virtual]

Either color by scale, scalar or by vector/normal magnitude.

virtual int vtkGlyph3D::GetColorMode (  )  [virtual]

Either color by scale, scalar or by vector/normal magnitude.

void vtkGlyph3D::SetColorModeToColorByScale (  )  [inline]

Either color by scale, scalar or by vector/normal magnitude.

Definition at line 169 of file vtkGlyph3D.h.

void vtkGlyph3D::SetColorModeToColorByScalar (  )  [inline]

Either color by scale, scalar or by vector/normal magnitude.

Definition at line 171 of file vtkGlyph3D.h.

void vtkGlyph3D::SetColorModeToColorByVector (  )  [inline]

Either color by scale, scalar or by vector/normal magnitude.

Definition at line 173 of file vtkGlyph3D.h.

const char * vtkGlyph3D::GetColorModeAsString ( void   )  [inline]

Return the method of coloring as a descriptive character string.

Definition at line 324 of file vtkGlyph3D.h.

virtual void vtkGlyph3D::SetScaleFactor ( double   )  [virtual]

Specify scale factor to scale object by.

virtual double vtkGlyph3D::GetScaleFactor (  )  [virtual]

Specify scale factor to scale object by.

virtual void vtkGlyph3D::SetRange ( double  ,
double
) [virtual]

Specify range to map scalar values into.

void vtkGlyph3D::SetRange ( double  [2]  )

Specify range to map scalar values into.

virtual double* vtkGlyph3D::GetRange (  )  [virtual]

Specify range to map scalar values into.

virtual void vtkGlyph3D::GetRange ( double  data[2]  )  [virtual]

Specify range to map scalar values into.

virtual void vtkGlyph3D::SetOrient ( int   )  [virtual]

Turn on/off orienting of input geometry along vector/normal.

virtual void vtkGlyph3D::OrientOn (  )  [virtual]

Turn on/off orienting of input geometry along vector/normal.

virtual void vtkGlyph3D::OrientOff (  )  [virtual]

Turn on/off orienting of input geometry along vector/normal.

virtual int vtkGlyph3D::GetOrient (  )  [virtual]

Turn on/off orienting of input geometry along vector/normal.

virtual void vtkGlyph3D::SetClamping ( int   )  [virtual]

Turn on/off clamping of "scalar" values to range. (Scalar value may be vector magnitude if ScaleByVector() is enabled.)

virtual void vtkGlyph3D::ClampingOn (  )  [virtual]

Turn on/off clamping of "scalar" values to range. (Scalar value may be vector magnitude if ScaleByVector() is enabled.)

virtual void vtkGlyph3D::ClampingOff (  )  [virtual]

Turn on/off clamping of "scalar" values to range. (Scalar value may be vector magnitude if ScaleByVector() is enabled.)

virtual int vtkGlyph3D::GetClamping (  )  [virtual]

Turn on/off clamping of "scalar" values to range. (Scalar value may be vector magnitude if ScaleByVector() is enabled.)

virtual void vtkGlyph3D::SetVectorMode ( int   )  [virtual]

Specify whether to use vector or normal to perform vector operations.

virtual int vtkGlyph3D::GetVectorMode (  )  [virtual]

Specify whether to use vector or normal to perform vector operations.

void vtkGlyph3D::SetVectorModeToUseVector (  )  [inline]

Specify whether to use vector or normal to perform vector operations.

Definition at line 209 of file vtkGlyph3D.h.

void vtkGlyph3D::SetVectorModeToUseNormal (  )  [inline]

Specify whether to use vector or normal to perform vector operations.

Definition at line 210 of file vtkGlyph3D.h.

void vtkGlyph3D::SetVectorModeToVectorRotationOff (  )  [inline]

Specify whether to use vector or normal to perform vector operations.

Definition at line 211 of file vtkGlyph3D.h.

const char * vtkGlyph3D::GetVectorModeAsString ( void   )  [inline]

Return the vector mode as a character string.

Definition at line 343 of file vtkGlyph3D.h.

virtual void vtkGlyph3D::SetIndexMode ( int   )  [virtual]

Index into table of sources by scalar, by vector/normal magnitude, or no indexing. If indexing is turned off, then the first source glyph in the table of glyphs is used. Note that indexing mode will only use the InputScalarsSelection array and not the InputColorScalarsSelection as the scalar source if an array is specified.

virtual int vtkGlyph3D::GetIndexMode (  )  [virtual]

Index into table of sources by scalar, by vector/normal magnitude, or no indexing. If indexing is turned off, then the first source glyph in the table of glyphs is used. Note that indexing mode will only use the InputScalarsSelection array and not the InputColorScalarsSelection as the scalar source if an array is specified.

void vtkGlyph3D::SetIndexModeToScalar (  )  [inline]

Index into table of sources by scalar, by vector/normal magnitude, or no indexing. If indexing is turned off, then the first source glyph in the table of glyphs is used. Note that indexing mode will only use the InputScalarsSelection array and not the InputColorScalarsSelection as the scalar source if an array is specified.

Definition at line 225 of file vtkGlyph3D.h.

void vtkGlyph3D::SetIndexModeToVector (  )  [inline]

Index into table of sources by scalar, by vector/normal magnitude, or no indexing. If indexing is turned off, then the first source glyph in the table of glyphs is used. Note that indexing mode will only use the InputScalarsSelection array and not the InputColorScalarsSelection as the scalar source if an array is specified.

Definition at line 226 of file vtkGlyph3D.h.

void vtkGlyph3D::SetIndexModeToOff (  )  [inline]

Index into table of sources by scalar, by vector/normal magnitude, or no indexing. If indexing is turned off, then the first source glyph in the table of glyphs is used. Note that indexing mode will only use the InputScalarsSelection array and not the InputColorScalarsSelection as the scalar source if an array is specified.

Definition at line 227 of file vtkGlyph3D.h.

const char * vtkGlyph3D::GetIndexModeAsString ( void   )  [inline]

Return the index mode as a character string.

Definition at line 362 of file vtkGlyph3D.h.

virtual void vtkGlyph3D::SetGeneratePointIds ( int   )  [virtual]

Enable/disable the generation of point ids as part of the output. The point ids are the id of the input generating point. The point ids are stored in the output point field data and named "InputPointIds". Point generation is useful for debugging and pick operations.

virtual int vtkGlyph3D::GetGeneratePointIds (  )  [virtual]

Enable/disable the generation of point ids as part of the output. The point ids are the id of the input generating point. The point ids are stored in the output point field data and named "InputPointIds". Point generation is useful for debugging and pick operations.

virtual void vtkGlyph3D::GeneratePointIdsOn (  )  [virtual]

Enable/disable the generation of point ids as part of the output. The point ids are the id of the input generating point. The point ids are stored in the output point field data and named "InputPointIds". Point generation is useful for debugging and pick operations.

virtual void vtkGlyph3D::GeneratePointIdsOff (  )  [virtual]

Enable/disable the generation of point ids as part of the output. The point ids are the id of the input generating point. The point ids are stored in the output point field data and named "InputPointIds". Point generation is useful for debugging and pick operations.

virtual void vtkGlyph3D::SetPointIdsName ( const char *   )  [virtual]

Set/Get the name of the PointIds array if generated. By default the Ids are named "InputPointIds", but this can be changed with this function.

virtual char* vtkGlyph3D::GetPointIdsName (  )  [virtual]

Set/Get the name of the PointIds array if generated. By default the Ids are named "InputPointIds", but this can be changed with this function.

virtual void vtkGlyph3D::SetFillCellData ( int   )  [virtual]

Enable/disable the generation of cell data as part of the output. The cell data at each cell will match the point data of the input at the glyphed point.

virtual int vtkGlyph3D::GetFillCellData (  )  [virtual]

Enable/disable the generation of cell data as part of the output. The cell data at each cell will match the point data of the input at the glyphed point.

virtual void vtkGlyph3D::FillCellDataOn (  )  [virtual]

Enable/disable the generation of cell data as part of the output. The cell data at each cell will match the point data of the input at the glyphed point.

virtual void vtkGlyph3D::FillCellDataOff (  )  [virtual]

Enable/disable the generation of cell data as part of the output. The cell data at each cell will match the point data of the input at the glyphed point.

virtual int vtkGlyph3D::IsPointVisible ( vtkDataSet ,
vtkIdType
) [inline, virtual]

This can be overwritten by subclass to return 0 when a point is blanked. Default implementation is to always return 1;

Definition at line 260 of file vtkGlyph3D.h.

void vtkGlyph3D::SetSourceTransform ( vtkTransform  )

When set, this is use to transform the source polydata before using it to generate the glyph. This is useful if one wanted to reorient the source, for example.

virtual vtkTransform* vtkGlyph3D::GetSourceTransform (  )  [virtual]

When set, this is use to transform the source polydata before using it to generate the glyph. This is useful if one wanted to reorient the source, for example.

virtual unsigned long vtkGlyph3D::GetMTime (  )  [virtual]

Overridden to include SourceTransform's MTime.

Reimplemented from vtkObject.

virtual int vtkGlyph3D::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

virtual int vtkGlyph3D::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkGlyph3D::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

vtkPolyData* vtkGlyph3D::GetSource ( int  idx,
vtkInformationVector sourceInfo
) [protected]


Member Data Documentation

Definition at line 283 of file vtkGlyph3D.h.

int vtkGlyph3D::Scaling [protected]

Definition at line 284 of file vtkGlyph3D.h.

int vtkGlyph3D::ScaleMode [protected]

Definition at line 285 of file vtkGlyph3D.h.

int vtkGlyph3D::ColorMode [protected]

Definition at line 286 of file vtkGlyph3D.h.

double vtkGlyph3D::ScaleFactor [protected]

Definition at line 287 of file vtkGlyph3D.h.

double vtkGlyph3D::Range[2] [protected]

Definition at line 288 of file vtkGlyph3D.h.

int vtkGlyph3D::Orient [protected]

Definition at line 289 of file vtkGlyph3D.h.

int vtkGlyph3D::VectorMode [protected]

Definition at line 290 of file vtkGlyph3D.h.

int vtkGlyph3D::Clamping [protected]

Definition at line 291 of file vtkGlyph3D.h.

int vtkGlyph3D::IndexMode [protected]

Definition at line 292 of file vtkGlyph3D.h.

Definition at line 293 of file vtkGlyph3D.h.

int vtkGlyph3D::FillCellData [protected]

Definition at line 294 of file vtkGlyph3D.h.

char* vtkGlyph3D::PointIdsName [protected]

Definition at line 295 of file vtkGlyph3D.h.

Definition at line 296 of file vtkGlyph3D.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:38:25 2011 for VTK by  doxygen 1.5.6
