vtkPlotLine Class Reference

#include <vtkPlotLine.h>

Inheritance diagram for vtkPlotLine:

Inheritance graph
[legend]

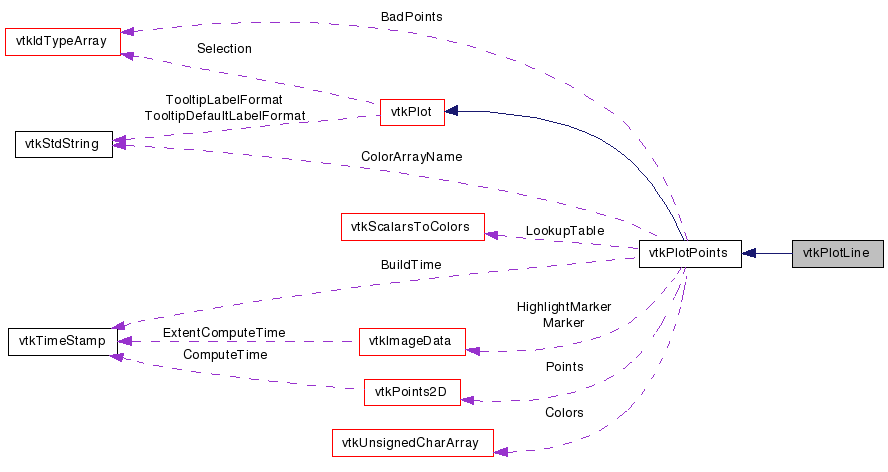

Collaboration diagram for vtkPlotLine:

Collaboration graph
[legend]

List of all members.


Detailed Description

Class for drawing an XY line plot given two columns from a vtkTable.

Definition at line 29 of file vtkPlotLine.h.


Public Types

typedef vtkPlotPoints Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual bool Paint (vtkContext2D *painter)
virtual bool PaintLegend (vtkContext2D *painter, const vtkRectf &rect, int legendIndex)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkPlotLineSafeDownCast (vtkObject *o)
static vtkPlotLineNew ()

Protected Member Functions

 vtkPlotLine ()
 ~vtkPlotLine ()

Member Typedef Documentation

Reimplemented from vtkPlotPoints.

Definition at line 32 of file vtkPlotLine.h.


Constructor & Destructor Documentation

vtkPlotLine::vtkPlotLine (  )  [protected]

vtkPlotLine::~vtkPlotLine (  )  [protected]


Member Function Documentation

virtual const char* vtkPlotLine::GetClassName (  )  [virtual]

Reimplemented from vtkPlotPoints.

static int vtkPlotLine::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlotPoints.

virtual int vtkPlotLine::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlotPoints.

static vtkPlotLine* vtkPlotLine::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPlotPoints.

virtual void vtkPlotLine::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPlotPoints.

static vtkPlotLine* vtkPlotLine::New (  )  [static]

Creates a 2D Chart object.

Reimplemented from vtkPlotPoints.

virtual bool vtkPlotLine::Paint ( vtkContext2D painter  )  [virtual]

Paint event for the XY plot, called whenever the chart needs to be drawn

Reimplemented from vtkPlotPoints.

virtual bool vtkPlotLine::PaintLegend ( vtkContext2D painter,
const vtkRectf rect,
int  legendIndex
) [virtual]

Paint legend event for the XY plot, called whenever the legend needs the plot items symbol/mark/line drawn. A rect is supplied with the lower left corner of the rect (elements 0 and 1) and with width x height (elements 2 and 3). The plot can choose how to fill the space supplied.

Reimplemented from vtkPlotPoints.


The documentation for this class was generated from the following file:
