vtkQtStringToImage Class Reference

#include <vtkQtStringToImage.h>

Inheritance diagram for vtkQtStringToImage:

Inheritance graph
[legend]

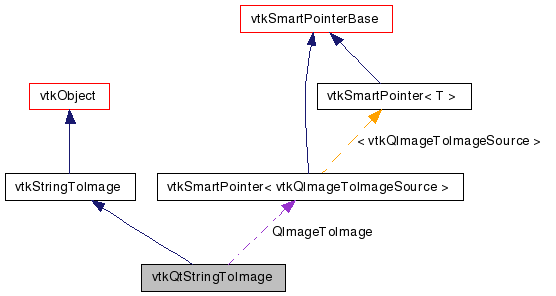

Collaboration diagram for vtkQtStringToImage:

Collaboration graph
[legend]

List of all members.


Detailed Description

uses Qt to render the supplied text to an image.

Tests:
vtkQtStringToImage (Tests)

Definition at line 34 of file vtkQtStringToImage.h.


Public Types

typedef vtkStringToImage Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void DeepCopy (vtkQtStringToImage *utility)
virtual vtkVector2i GetBounds (vtkTextProperty *property, const vtkUnicodeString &string)
virtual vtkVector2i GetBounds (vtkTextProperty *property, const vtkStdString &string)
virtual int RenderString (vtkTextProperty *property, const vtkUnicodeString &string, vtkImageData *data)
virtual int RenderString (vtkTextProperty *property, const vtkStdString &string, vtkImageData *data)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkQtStringToImageSafeDownCast (vtkObject *o)
static vtkQtStringToImageNew ()

Protected Member Functions

 vtkQtStringToImage ()
 ~vtkQtStringToImage ()

Protected Attributes

Internals * Implementation
vtkSmartPointer
< vtkQImageToImageSource
QImageToImage

Member Typedef Documentation

Reimplemented from vtkStringToImage.

Definition at line 37 of file vtkQtStringToImage.h.


Constructor & Destructor Documentation

vtkQtStringToImage::vtkQtStringToImage (  )  [protected]

vtkQtStringToImage::~vtkQtStringToImage (  )  [protected]


Member Function Documentation

virtual const char* vtkQtStringToImage::GetClassName (  )  [virtual]

Reimplemented from vtkStringToImage.

static int vtkQtStringToImage::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStringToImage.

virtual int vtkQtStringToImage::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStringToImage.

static vtkQtStringToImage* vtkQtStringToImage::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkStringToImage.

virtual void vtkQtStringToImage::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStringToImage.

static vtkQtStringToImage* vtkQtStringToImage::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual vtkVector2i vtkQtStringToImage::GetBounds ( vtkTextProperty property,
const vtkUnicodeString string
) [virtual]

Given a text property and a string, get the bounding box [xmin, xmax] x [ymin, ymax]. Note that this is the bounding box of the area where actual pixels will be written, given a text/pen/baseline location of (0,0). For example, if the string starts with a 'space', or depending on the orientation, you can end up with a [-20, -10] x [5, 10] bbox (the math to get the real bbox is straightforward). Return 1 on success, 0 otherwise. You can use IsBoundingBoxValid() to test if the computed bbox is valid (it may not if GetBoundingBox() failed or if the string was empty).

Implements vtkStringToImage.

virtual vtkVector2i vtkQtStringToImage::GetBounds ( vtkTextProperty property,
const vtkStdString string
) [virtual]

Given a text property and a string, get the bounding box [xmin, xmax] x [ymin, ymax]. Note that this is the bounding box of the area where actual pixels will be written, given a text/pen/baseline location of (0,0). For example, if the string starts with a 'space', or depending on the orientation, you can end up with a [-20, -10] x [5, 10] bbox (the math to get the real bbox is straightforward). Return 1 on success, 0 otherwise. You can use IsBoundingBoxValid() to test if the computed bbox is valid (it may not if GetBoundingBox() failed or if the string was empty).

Implements vtkStringToImage.

virtual int vtkQtStringToImage::RenderString ( vtkTextProperty property,
const vtkUnicodeString string,
vtkImageData data
) [virtual]

Given a text property and a string, this function initializes the vtkImageData *data and renders it in a vtkImageData.

Implements vtkStringToImage.

virtual int vtkQtStringToImage::RenderString ( vtkTextProperty property,
const vtkStdString string,
vtkImageData data
) [virtual]

Given a text property and a string, this function initializes the vtkImageData *data and renders it in a vtkImageData.

Implements vtkStringToImage.

void vtkQtStringToImage::DeepCopy ( vtkQtStringToImage utility  )

Make a deep copy of the supplied utility class.


Member Data Documentation

Internals* vtkQtStringToImage::Implementation [protected]

Definition at line 76 of file vtkQtStringToImage.h.

Definition at line 79 of file vtkQtStringToImage.h.


The documentation for this class was generated from the following file:
