vtkStreamingStatistics Class Reference

#include <vtkStreamingStatistics.h>

Inheritance diagram for vtkStreamingStatistics:

[legend]

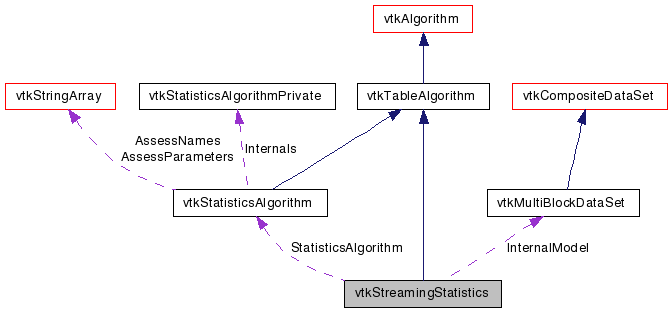

Collaboration diagram for vtkStreamingStatistics:

[legend]

List of all members.

---

Detailed Description

A class for using the statistics filters in a streaming mode.

A class for using the statistics filters in a streaming mode or perhaps an "online, incremental, push" mode.

Thanks:

Thanks to the Universe for unfolding in a way that allowed this class to be implemented, also Godzilla for not crushing my computer.

Examples:

vtkStreamingStatistics (Examples)

Definition at line 46 of file vtkStreamingStatistics.h.

Public Types
typedef vtkTableAlgorithm	Superclass
enum	InputPorts { INPUT_DATA = 0, LEARN_PARAMETERS = 1, INPUT_MODEL = 2 }
enum	OutputIndices { OUTPUT_DATA = 0, OUTPUT_MODEL = 1, ASSESSMENT = 2, OUTPUT_TEST = 2 }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetStatisticsAlgorithm (vtkStatisticsAlgorithm *)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkStreamingStatistics *	SafeDownCast (vtkObject *o)
static vtkStreamingStatistics *	New ()
Protected Member Functions
	vtkStreamingStatistics ()
	~vtkStreamingStatistics ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual int	FillOutputPortInformation (int port, vtkInformation *info)
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

---

Member Typedef Documentation

typedef vtkTableAlgorithm vtkStreamingStatistics::Superclass

Reimplemented from vtkTableAlgorithm.

Definition at line 49 of file vtkStreamingStatistics.h.

---

Member Enumeration Documentation

enum vtkStreamingStatistics::InputPorts

enumeration values to specify input port types

Enumerator:

INPUT_DATA	Port 0 is for learn data.
LEARN_PARAMETERS	Port 1 is for learn parameters (initial guesses, etc.).
INPUT_MODEL	Port 2 is for a priori models.

Definition at line 55 of file vtkStreamingStatistics.h.

enum vtkStreamingStatistics::OutputIndices

enumeration values to specify output port types

Enumerator:

OUTPUT_DATA	Output 0 mirrors the input data, plus optional assessment columns.
OUTPUT_MODEL	Output 1 contains any generated model.
ASSESSMENT	This is an old, deprecated name for OUTPUT_TEST.
OUTPUT_TEST	Output 2 contains result of statistical test(s).

Definition at line 65 of file vtkStreamingStatistics.h.

---

Constructor & Destructor Documentation

vtkStreamingStatistics::vtkStreamingStatistics

(

)

[protected]

vtkStreamingStatistics::~vtkStreamingStatistics

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkStreamingStatistics::GetClassName

(

)

[virtual]

Reimplemented from vtkTableAlgorithm.

static int vtkStreamingStatistics::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

virtual int vtkStreamingStatistics::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

static vtkStreamingStatistics* vtkStreamingStatistics::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkTableAlgorithm.

void vtkStreamingStatistics::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTableAlgorithm.

static vtkStreamingStatistics* vtkStreamingStatistics::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTableAlgorithm.

virtual void vtkStreamingStatistics::SetStatisticsAlgorithm

(

vtkStatisticsAlgorithm *

)

[virtual]

virtual int vtkStreamingStatistics::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkTableAlgorithm.

virtual int vtkStreamingStatistics::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkTableAlgorithm.

virtual int vtkStreamingStatistics::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTableAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkStreamingStatistics.h
