vtkTexturedButtonRepresentation Class Reference

#include <vtkTexturedButtonRepresentation.h>

Inheritance diagram for vtkTexturedButtonRepresentation:

Inheritance graph
[legend]

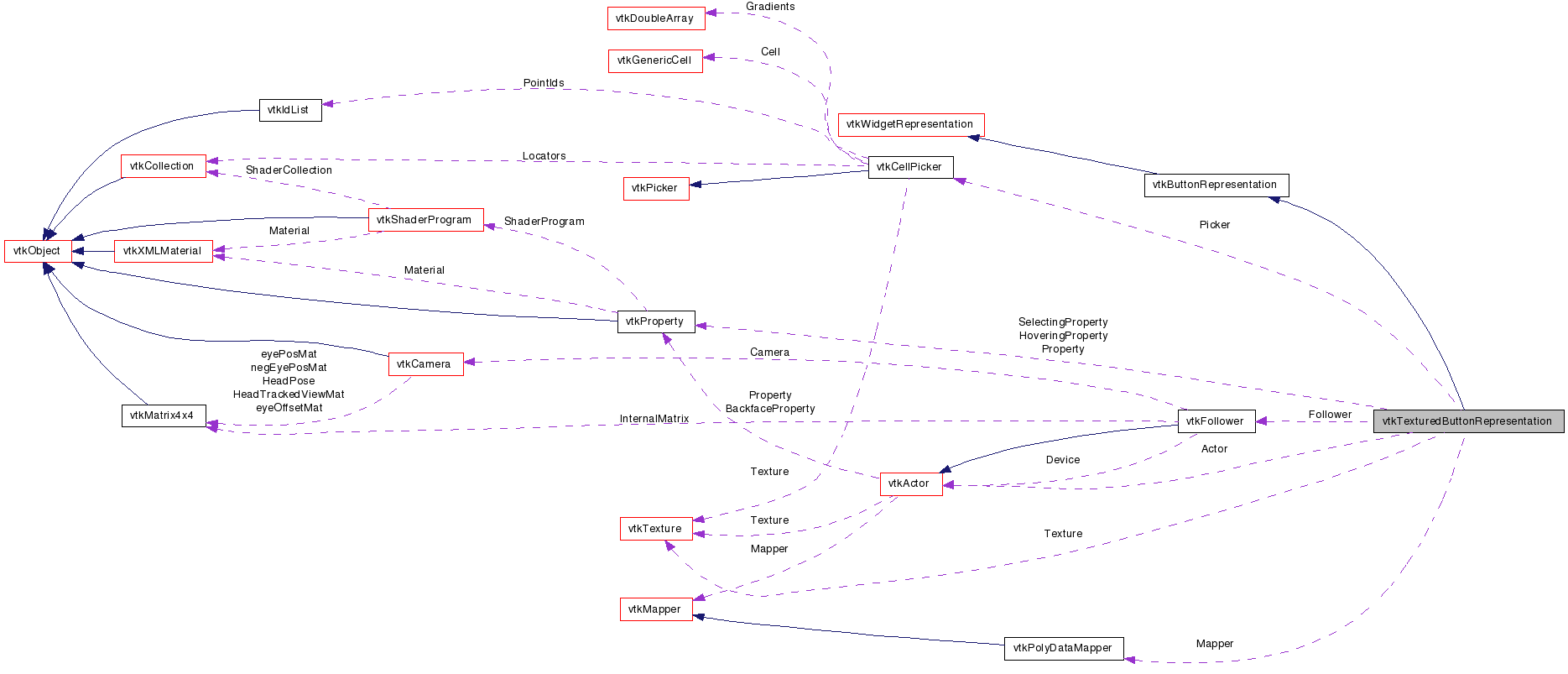

Collaboration diagram for vtkTexturedButtonRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

defines a representation for a vtkButtonWidget

This class implements one type of vtkButtonRepresentation. It changes the appearance of a user-provided polydata by assigning textures according to the current button state. It also provides highlighting (when hovering and selecting the button) by fiddling with the actor's property.

To use this representation, always begin by specifying the number of button states. Then provide a polydata (the polydata should have associated texture coordinates), and a list of textures cooresponding to the button states. Optionally, the HoveringProperty and SelectionProperty can be adjusted to obtain the appropriate appearance.

This widget representation has two placement methods. The conventional PlaceWidget() method is used to locate the textured button inside of a user-specified bounding box (note that the button geometry is uniformly scaled to fit, thus two of the three dimensions can be "large" and the third used to perform the scaling). However this PlaceWidget() method will align the geometry within x-y-z oriented bounds. To further control the placement, use the additional PlaceWidget(scale,point,normal) method. This scales the geometry, places its center at the specified point position, and orients the geometry's z-direction parallel to the specified normal. This can be used to attach "sticky notes" or "sticky buttons" to the surface of objects.

See also:
vtkButtonWidget vtkButtonRepresentation vtkButtonSource vtkEllipticalButtonSource vtkRectangularButtonSource
Tests:
vtkTexturedButtonRepresentation (Tests)

Definition at line 65 of file vtkTexturedButtonRepresentation.h.

typedef vtkButtonRepresentation Superclass
static int IsTypeOf (const char *type)
static
vtkTexturedButtonRepresentation
SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

virtual void PlaceWidget (double scale, double point[3], double normal[3])
void SetButtonGeometry (vtkPolyData *pd)
void SetButtonGeometryConnection (vtkAlgorithmOutput *algOutput)
vtkPolyDataGetButtonGeometry ()
virtual void SetFollowCamera (int)
virtual int GetFollowCamera ()
virtual void FollowCameraOn ()
virtual void FollowCameraOff ()
virtual void SetProperty (vtkProperty *p)
virtual vtkPropertyGetProperty ()
virtual void SetHoveringProperty (vtkProperty *p)
virtual vtkPropertyGetHoveringProperty ()
virtual void SetSelectingProperty (vtkProperty *p)
virtual vtkPropertyGetSelectingProperty ()
void SetButtonTexture (int i, vtkImageData *image)
vtkImageDataGetButtonTexture (int i)
virtual int ComputeInteractionState (int X, int Y, int modify=0)
virtual void PlaceWidget (double bounds[6])
virtual void BuildRepresentation ()
virtual void Highlight (int state)
virtual void ShallowCopy (vtkProp *prop)
virtual double * GetBounds ()
virtual void GetActors (vtkPropCollection *pc)
virtual void ReleaseGraphicsResources (vtkWindow *)
virtual int RenderOpaqueGeometry (vtkViewport *)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int HasTranslucentPolygonalGeometry ()

Static Public Member Functions

static
vtkTexturedButtonRepresentation
New ()

Protected Member Functions

 vtkTexturedButtonRepresentation ()
 ~vtkTexturedButtonRepresentation ()
void CreateDefaultProperties ()

Protected Attributes

vtkActorActor
vtkFollowerFollower
vtkPolyDataMapperMapper
vtkTextureTexture
int FollowCamera
vtkPropertyProperty
vtkPropertyHoveringProperty
vtkPropertySelectingProperty
vtkTextureArray * TextureArray
vtkCellPickerPicker

Member Typedef Documentation

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

Definition at line 73 of file vtkTexturedButtonRepresentation.h.


Constructor & Destructor Documentation

vtkTexturedButtonRepresentation::vtkTexturedButtonRepresentation (  )  [protected]

vtkTexturedButtonRepresentation::~vtkTexturedButtonRepresentation (  )  [protected]


Member Function Documentation

static vtkTexturedButtonRepresentation* vtkTexturedButtonRepresentation::New (  )  [static]

Instantiate the class.

Reimplemented from vtkObject.

virtual const char* vtkTexturedButtonRepresentation::GetClassName (  )  [virtual]

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

static int vtkTexturedButtonRepresentation::IsTypeOf ( const char *  type  )  [static]

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

virtual int vtkTexturedButtonRepresentation::IsA ( const char *  type  )  [virtual]

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

static vtkTexturedButtonRepresentation* vtkTexturedButtonRepresentation::SafeDownCast ( vtkObject o  )  [static]

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

void vtkTexturedButtonRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for instances of the class.

Reimplemented from vtkButtonRepresentation.

void vtkTexturedButtonRepresentation::SetButtonGeometry ( vtkPolyData pd  )

Set/Get the polydata which defines the button geometry.

void vtkTexturedButtonRepresentation::SetButtonGeometryConnection ( vtkAlgorithmOutput algOutput  )

Set/Get the polydata which defines the button geometry.

vtkPolyData* vtkTexturedButtonRepresentation::GetButtonGeometry (  )

Set/Get the polydata which defines the button geometry.

virtual void vtkTexturedButtonRepresentation::SetFollowCamera ( int   )  [virtual]

Specify whether the button should always face the camera. If enabled, the button rotates as the camera moves.

virtual int vtkTexturedButtonRepresentation::GetFollowCamera (  )  [virtual]

Specify whether the button should always face the camera. If enabled, the button rotates as the camera moves.

virtual void vtkTexturedButtonRepresentation::FollowCameraOn (  )  [virtual]

Specify whether the button should always face the camera. If enabled, the button rotates as the camera moves.

virtual void vtkTexturedButtonRepresentation::FollowCameraOff (  )  [virtual]

Specify whether the button should always face the camera. If enabled, the button rotates as the camera moves.

virtual void vtkTexturedButtonRepresentation::SetProperty ( vtkProperty p  )  [virtual]

Specify the property to use when the button is to appear "normal" i.e., the mouse pointer is not hovering or selecting the button.

virtual vtkProperty* vtkTexturedButtonRepresentation::GetProperty (  )  [virtual]

Specify the property to use when the button is to appear "normal" i.e., the mouse pointer is not hovering or selecting the button.

virtual void vtkTexturedButtonRepresentation::SetHoveringProperty ( vtkProperty p  )  [virtual]

Specify the property to use when the hovering over the button.

virtual vtkProperty* vtkTexturedButtonRepresentation::GetHoveringProperty (  )  [virtual]

Specify the property to use when the hovering over the button.

virtual void vtkTexturedButtonRepresentation::SetSelectingProperty ( vtkProperty p  )  [virtual]

Specify the property to use when selecting the button.

virtual vtkProperty* vtkTexturedButtonRepresentation::GetSelectingProperty (  )  [virtual]

Specify the property to use when selecting the button.

void vtkTexturedButtonRepresentation::SetButtonTexture ( int  i,
vtkImageData image
)

Add the ith texture corresponding to the ith button state. The parameter i should be (0 <= i < NumberOfStates).

vtkImageData* vtkTexturedButtonRepresentation::GetButtonTexture ( int  i  )

Add the ith texture corresponding to the ith button state. The parameter i should be (0 <= i < NumberOfStates).

virtual void vtkTexturedButtonRepresentation::PlaceWidget ( double  scale,
double  point[3],
double  normal[3]
) [virtual]

Alternative method for placing a button at a given position (defined by point[3]); at a given orientation (normal[3], where the z-axis of the button geometry is parallel to the normal); and scaled by the scale parameter. This method can bs used to attach "sticky notes" or "sticky buttons" to objects. A great way to attach interactive meta-data to 3D actors.

virtual int vtkTexturedButtonRepresentation::ComputeInteractionState ( int  X,
int  Y,
int  modify = 0
) [virtual]

Provide the necessary methods to satisfy the vtkWidgetRepresentation API.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkTexturedButtonRepresentation::PlaceWidget ( double  bounds[6]  )  [virtual]

Provide the necessary methods to satisfy the vtkWidgetRepresentation API.

virtual void vtkTexturedButtonRepresentation::BuildRepresentation (  )  [virtual]

Provide the necessary methods to satisfy the vtkWidgetRepresentation API.

Implements vtkWidgetRepresentation.

virtual void vtkTexturedButtonRepresentation::Highlight ( int  state  )  [virtual]

Provide the necessary methods to satisfy the vtkWidgetRepresentation API.

Reimplemented from vtkButtonRepresentation.

virtual void vtkTexturedButtonRepresentation::ShallowCopy ( vtkProp prop  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkButtonRepresentation.

virtual double* vtkTexturedButtonRepresentation::GetBounds (  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkTexturedButtonRepresentation::GetActors ( vtkPropCollection pc  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkTexturedButtonRepresentation::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkTexturedButtonRepresentation::RenderOpaqueGeometry ( vtkViewport  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkProp.

virtual int vtkTexturedButtonRepresentation::RenderTranslucentPolygonalGeometry ( vtkViewport  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkProp.

virtual int vtkTexturedButtonRepresentation::HasTranslucentPolygonalGeometry (  )  [virtual]

Provide the necessary methods to satisfy the rendering API.

Reimplemented from vtkWidgetRepresentation.

void vtkTexturedButtonRepresentation::CreateDefaultProperties (  )  [protected]


Member Data Documentation

Definition at line 151 of file vtkTexturedButtonRepresentation.h.

Definition at line 152 of file vtkTexturedButtonRepresentation.h.

Definition at line 153 of file vtkTexturedButtonRepresentation.h.

Definition at line 154 of file vtkTexturedButtonRepresentation.h.

Definition at line 157 of file vtkTexturedButtonRepresentation.h.

Definition at line 160 of file vtkTexturedButtonRepresentation.h.

Definition at line 161 of file vtkTexturedButtonRepresentation.h.

Definition at line 162 of file vtkTexturedButtonRepresentation.h.

vtkTextureArray* vtkTexturedButtonRepresentation::TextureArray [protected]

Definition at line 167 of file vtkTexturedButtonRepresentation.h.

Definition at line 170 of file vtkTexturedButtonRepresentation.h.
