vtkDataArrayTemplate< T > Class Template Reference

Implementation template for vtkDataArray. More...

#include <vtkDataArrayTemplate.h>

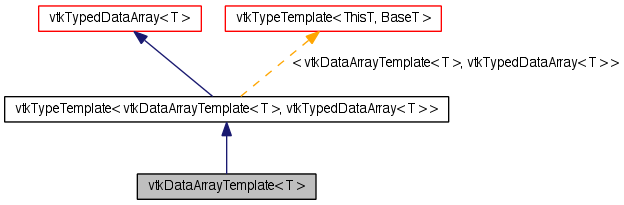

Inheritance diagram for vtkDataArrayTemplate< T >:
Inheritance graph
[legend]
Collaboration diagram for vtkDataArrayTemplate< T >:
Collaboration graph
[legend]

List of all members.

Public Types

enum  DeleteMethod { VTK_DATA_ARRAY_FREE, VTK_DATA_ARRAY_DELETE }
typedef vtkTypedDataArray< T > Superclass
typedef Superclass::ValueType ValueType
typedef ValueTypeIterator

Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
Iterator Begin ()
Iterator End ()
int Allocate (vtkIdType sz, vtkIdType ext=1000)
void Initialize ()
int GetDataTypeSize ()
void SetNumberOfTuples (vtkIdType number)
virtual void SetTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)
virtual void InsertTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)
virtual vtkIdType InsertNextTuple (vtkIdType j, vtkAbstractArray *source)
doubleGetTuple (vtkIdType i)
void Squeeze ()
vtkIdType Capacity ()
virtual int Resize (vtkIdType numTuples)
void SetNumberOfValues (vtkIdType number)
void InsertValue (vtkIdType id, T f)
void SetVariantValue (vtkIdType id, vtkVariant value)
vtkIdType InsertNextValue (T f)
double GetComponent (vtkIdType i, int j)
void SetComponent (vtkIdType i, int j, double c)
virtual void InsertComponent (vtkIdType i, int j, double c)
virtual void ExportToVoidPointer (void *out_ptr)
virtual vtkArrayIteratorNewIterator ()
virtual void DataChanged ()
virtual void DataElementChanged (vtkIdType id)
virtual void ClearLookup ()
virtual int GetArrayType ()
virtual void InsertTuples (vtkIdList *destIds, vtkIdList *srcIds, vtkAbstractArray *source)
virtual void InsertTuples (vtkIdType dstStart, vtkIdType n, vtkIdType srcStart, vtkAbstractArray *source)
void GetTuple (vtkIdType i, double *tuple)
void GetTupleValue (vtkIdType i, T *tuple)
void SetTuple (vtkIdType i, const float *tuple)
void SetTuple (vtkIdType i, const double *tuple)
void SetTupleValue (vtkIdType i, const T *tuple)
void InsertTuple (vtkIdType i, const float *tuple)
void InsertTuple (vtkIdType i, const double *tuple)
void InsertTupleValue (vtkIdType i, const T *tuple)
vtkIdType InsertNextTuple (const float *tuple)
vtkIdType InsertNextTuple (const double *tuple)
vtkIdType InsertNextTupleValue (const T *tuple)
void GetValueRange (T range[2], int comp)
T * GetValueRange (int comp)
T * GetValueRange ()
void GetValueRange (T range[2])
GetValue (vtkIdType id)
T & GetValueReference (vtkIdType id)
void SetValue (vtkIdType id, T value)
virtual void RemoveTuple (vtkIdType id)
virtual void RemoveFirstTuple ()
virtual void RemoveLastTuple ()
T * WritePointer (vtkIdType id, vtkIdType number)
virtual void * WriteVoidPointer (vtkIdType id, vtkIdType number)
T * GetPointer (vtkIdType id)
virtual void * GetVoidPointer (vtkIdType id)
void SetArray (T *array, vtkIdType size, int save, int deleteMethod)
void SetArray (T *array, vtkIdType size, int save)
virtual void SetVoidArray (void *array, vtkIdType size, int save)
virtual void SetVoidArray (void *array, vtkIdType size, int save, int deleteMethod)
virtual vtkIdType LookupValue (vtkVariant value)
virtual void LookupValue (vtkVariant value, vtkIdList *ids)
vtkIdType LookupValue (T value)
void LookupValue (T value, vtkIdList *ids)
vtkIdType LookupTypedValue (T value)
void LookupTypedValue (T value, vtkIdList *ids)

Static Public Member Functions

static vtkDataArrayTemplate< T > * FastDownCast (vtkAbstractArray *src)

Protected Member Functions

 vtkDataArrayTemplate ()
 ~vtkDataArrayTemplate ()
T * ResizeAndExtend (vtkIdType sz)
T * Realloc (vtkIdType sz)
virtual bool ComputeScalarRange (double *ranges)
virtual bool ComputeVectorRange (double range[2])

Protected Attributes

T * Array
ValueRange [2]
int TupleSize
doubleTuple
int SaveUserArray
int DeleteMethod

Friends

class vtkDataArrayTemplateHelper

Detailed Description

template<class T>
class vtkDataArrayTemplate< T >

Implementation template for vtkDataArray.

There is a vtkDataArray subclass for each native type supported by VTK. This template is used to implement all the subclasses in the same way while avoiding code duplication.

Definition at line 35 of file vtkDataArrayTemplate.h.


Member Typedef Documentation

template<class T>
typedef vtkTypedDataArray<T> vtkDataArrayTemplate< T >::Superclass
template<class T>
typedef Superclass::ValueType vtkDataArrayTemplate< T >::ValueType

Typedef to get the type of value stored in the array.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 40 of file vtkDataArrayTemplate.h.

template<class T>
typedef ValueType* vtkDataArrayTemplate< T >::Iterator

Typedef to a suitable iterator class. Rather than using this member directly, consider using vtkDataArrayIteratorMacro for safety and efficiency.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 48 of file vtkDataArrayTemplate.h.


Member Enumeration Documentation

template<class T>
enum vtkDataArrayTemplate::DeleteMethod
Enumerator:
VTK_DATA_ARRAY_FREE
VTK_DATA_ARRAY_DELETE

Definition at line 259 of file vtkDataArrayTemplate.h.


Constructor & Destructor Documentation

template<class T>
vtkDataArrayTemplate< T >::vtkDataArrayTemplate ( ) [protected]
template<class T>
vtkDataArrayTemplate< T >::~vtkDataArrayTemplate ( ) [protected]

Member Function Documentation

template<class T>
void vtkDataArrayTemplate< T >::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataArray.

template<class T>
Iterator vtkDataArrayTemplate< T >::Begin ( ) [inline]

Return an iterator initialized to the first element of the data. Rather than using this member directly, consider using vtkDataArrayIteratorMacro for safety and efficiency.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 53 of file vtkDataArrayTemplate.h.

template<class T>
Iterator vtkDataArrayTemplate< T >::End ( ) [inline]

Return an iterator initialized to first element past the end of the data. Rather than using this member directly, consider using vtkDataArrayIteratorMacro for safety and efficiency.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 58 of file vtkDataArrayTemplate.h.

template<class T>
static vtkDataArrayTemplate<T>* vtkDataArrayTemplate< T >::FastDownCast ( vtkAbstractArray src) [static]

Perform a fast, safe cast from a vtkAbstractArray to a vtkDataArrayTemplate. This method checks if: - source->GetArrayType() is appropriate, and - source->GetDataType() matches vtkTypeTraits<ValueType>::VTK_TYPE_ID if these conditions are met, the method performs a static_cast to return source as a vtkTypedDataArray pointer. Otherwise, NULL is returned.

Reimplemented from vtkTypedDataArray< T >.

template<class T>
int vtkDataArrayTemplate< T >::Allocate ( vtkIdType  sz,
vtkIdType  ext = 1000
) [virtual]

Allocate memory for this array. Delete old storage only if necessary. Note that ext is no longer used.

Implements vtkAbstractArray.

template<class T>
void vtkDataArrayTemplate< T >::Initialize ( ) [virtual]

Release storage and reset array to initial state.

Implements vtkAbstractArray.

template<class T>
int vtkDataArrayTemplate< T >::GetDataTypeSize ( ) [inline, virtual]

Return the size of the data type.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 76 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::SetNumberOfTuples ( vtkIdType  number) [virtual]

Set the number of n-tuples in the array.

Implements vtkAbstractArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::SetTuple ( vtkIdType  i,
vtkIdType  j,
vtkAbstractArray source
) [virtual]

Set the tuple at the ith location using the jth tuple in the source array. This method assumes that the two arrays have the same type and structure. Note that range checking and memory allocation is not performed; use in conjunction with SetNumberOfTuples() to allocate space.

Implements vtkDataArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::InsertTuple ( vtkIdType  i,
vtkIdType  j,
vtkAbstractArray source
) [virtual]

Insert the jth tuple in the source array, at ith location in this array. Note that memory allocation is performed as necessary to hold the data.

Implements vtkDataArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::InsertTuples ( vtkIdList destIds,
vtkIdList srcIds,
vtkAbstractArray source
) [virtual]

Copy the tuples indexed in srcIds from the source array to the tuple locations indexed by dstIds in this array. Note that memory allocation is performed as necessary to hold the data.

Implements vtkAbstractArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::InsertTuples ( vtkIdType  dstStart,
vtkIdType  n,
vtkIdType  srcStart,
vtkAbstractArray source
) [virtual]

Copy n consecutive tuples starting at srcStart from the source array to this array, starting at the dstStart location. Note that memory allocation is performed as necessary to hold the data.

Implements vtkAbstractArray.

template<class T>
virtual vtkIdType vtkDataArrayTemplate< T >::InsertNextTuple ( vtkIdType  j,
vtkAbstractArray source
) [virtual]

Insert the jth tuple in the source array, at the end in this array. Note that memory allocation is performed as necessary to hold the data. Returns the location at which the data was inserted.

Implements vtkDataArray.

template<class T>
double* vtkDataArrayTemplate< T >::GetTuple ( vtkIdType  i) [virtual]

Get a pointer to a tuple at the ith location. This is a dangerous method (it is not thread safe since a pointer is returned).

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::GetTuple ( vtkIdType  i,
double tuple
) [virtual]

Copy the tuple value into a user-provided array.

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::GetTupleValue ( vtkIdType  i,
T *  tuple
) [virtual]

Copy the tuple value into a user-provided array.

Implements vtkTypedDataArray< T >.

template<class T>
void vtkDataArrayTemplate< T >::SetTuple ( vtkIdType  i,
const float tuple
) [virtual]

Set the tuple value at the ith location in the array.

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::SetTuple ( vtkIdType  i,
const double tuple
) [virtual]

Set the tuple value at the ith location in the array.

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::SetTupleValue ( vtkIdType  i,
const T *  tuple
) [virtual]

Set the tuple value at the ith location in the array.

Implements vtkTypedDataArray< T >.

template<class T>
void vtkDataArrayTemplate< T >::InsertTuple ( vtkIdType  i,
const float tuple
) [virtual]

Insert (memory allocation performed) the tuple into the ith location in the array.

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::InsertTuple ( vtkIdType  i,
const double tuple
) [virtual]

Insert (memory allocation performed) the tuple into the ith location in the array.

Implements vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::InsertTupleValue ( vtkIdType  i,
const T *  tuple
) [virtual]

Insert (memory allocation performed) the tuple into the ith location in the array.

Implements vtkTypedDataArray< T >.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::InsertNextTuple ( const float tuple) [virtual]

Insert (memory allocation performed) the tuple onto the end of the array.

Implements vtkDataArray.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::InsertNextTuple ( const double tuple) [virtual]

Insert (memory allocation performed) the tuple onto the end of the array.

Implements vtkDataArray.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::InsertNextTupleValue ( const T *  tuple) [virtual]

Insert (memory allocation performed) the tuple onto the end of the array.

Implements vtkTypedDataArray< T >.

template<class T>
void vtkDataArrayTemplate< T >::GetValueRange ( range[2],
int  comp
) [inline]

Get the range of array values for the given component in the native data type.

Definition at line 150 of file vtkDataArrayTemplate.h.

template<class T>
T* vtkDataArrayTemplate< T >::GetValueRange ( int  comp) [inline]

Get the range of array values for the given component in the native data type.

Definition at line 157 of file vtkDataArrayTemplate.h.

template<class T>
T* vtkDataArrayTemplate< T >::GetValueRange ( ) [inline]

Get the range of array values for the 0th component in the native data type.

Definition at line 167 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::GetValueRange ( range[2]) [inline]

Get the range of array values for the 0th component in the native data type.

Definition at line 169 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::Squeeze ( ) [inline, virtual]

Resize object to just fit data requirement. Reclaims extra memory.

Implements vtkAbstractArray.

Definition at line 174 of file vtkDataArrayTemplate.h.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::Capacity ( ) [inline]

Return the capacity in typeof T units of the current array.

Definition at line 177 of file vtkDataArrayTemplate.h.

template<class T>
virtual int vtkDataArrayTemplate< T >::Resize ( vtkIdType  numTuples) [virtual]

Resize the array while conserving the data. Caution: No assumption can be made on the resulting size of the DataArray, meaning that the provided argument won't necessary be equal to the data array size, but at least the size will be bigger.

Implements vtkAbstractArray.

template<class T>
T vtkDataArrayTemplate< T >::GetValue ( vtkIdType  id) [inline, virtual]

Get the data at a particular index.

Implements vtkTypedDataArray< T >.

Definition at line 187 of file vtkDataArrayTemplate.h.

template<class T>
T& vtkDataArrayTemplate< T >::GetValueReference ( vtkIdType  id) [inline, virtual]

Get the data at a particular index.

Implements vtkTypedDataArray< T >.

Definition at line 189 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::SetValue ( vtkIdType  id,
value
) [inline, virtual]

Set the data at a particular index. Does not do range checking. Make sure you use the method SetNumberOfValues() before inserting data.

Implements vtkTypedDataArray< T >.

Definition at line 196 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::SetNumberOfValues ( vtkIdType  number) [virtual]

Specify the number of values for this object to hold. Does an allocation as well as setting the MaxId ivar. Used in conjunction with SetValue() method for fast insertion.

Reimplemented from vtkTypedDataArray< T >.

template<class T>
void vtkDataArrayTemplate< T >::InsertValue ( vtkIdType  id,
f
) [virtual]

Insert data at a specified position in the array.

Implements vtkTypedDataArray< T >.

template<class T>
void vtkDataArrayTemplate< T >::SetVariantValue ( vtkIdType  id,
vtkVariant  value
) [virtual]

Set a value in the array from a vtkVariant.

Implements vtkAbstractArray.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::InsertNextValue ( f) [virtual]

Insert data at the end of the array. Return its location in the array.

Implements vtkTypedDataArray< T >.

template<class T>
virtual void vtkDataArrayTemplate< T >::RemoveTuple ( vtkIdType  id) [virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implements vtkDataArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::RemoveFirstTuple ( ) [virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implements vtkDataArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::RemoveLastTuple ( ) [virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implements vtkDataArray.

template<class T>
double vtkDataArrayTemplate< T >::GetComponent ( vtkIdType  i,
int  j
) [virtual]

Return the data component at the ith tuple and jth component location. Note that i is less then NumberOfTuples and j is less then NumberOfComponents.

Reimplemented from vtkDataArray.

template<class T>
void vtkDataArrayTemplate< T >::SetComponent ( vtkIdType  i,
int  j,
double  c
) [virtual]

Set the data component at the ith tuple and jth component location. Note that i is less then NumberOfTuples and j is less then NumberOfComponents. Make sure enough memory has been allocated (use SetNumberOfTuples() and SetNumberOfComponents()).

Reimplemented from vtkDataArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::InsertComponent ( vtkIdType  i,
int  j,
double  c
) [virtual]

Insert the data component at ith tuple and jth component location. Note that memory allocation is performed as necessary to hold the data.

Reimplemented from vtkDataArray.

template<class T>
T* vtkDataArrayTemplate< T >::WritePointer ( vtkIdType  id,
vtkIdType  number
)

Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

template<class T>
virtual void* vtkDataArrayTemplate< T >::WriteVoidPointer ( vtkIdType  id,
vtkIdType  number
) [inline, virtual]

Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

Implements vtkDataArray.

Definition at line 245 of file vtkDataArrayTemplate.h.

template<class T>
T* vtkDataArrayTemplate< T >::GetPointer ( vtkIdType  id) [inline]

Get the address of a particular data index. Performs no checks to verify that the memory has been allocated etc. If the data is simply being iterated over, consider using vtkDataArrayIteratorMacro for safety and efficiency, rather than using this member directly.

Definition at line 254 of file vtkDataArrayTemplate.h.

template<class T>
virtual void* vtkDataArrayTemplate< T >::GetVoidPointer ( vtkIdType  id) [inline, virtual]

Get the address of a particular data index. Performs no checks to verify that the memory has been allocated etc. If the data is simply being iterated over, consider using vtkDataArrayIteratorMacro for safety and efficiency, rather than using this member directly.

Implements vtkAbstractArray.

Definition at line 255 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::SetArray ( T *  array,
vtkIdType  size,
int  save,
int  deleteMethod
)

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If specified, the delete method determines how the data array will be deallocated. If the delete method is VTK_DATA_ARRAY_FREE, free() will be used. If the delete method is DELETE, delete[] will be used. The default is FREE.

template<class T>
void vtkDataArrayTemplate< T >::SetArray ( T *  array,
vtkIdType  size,
int  save
) [inline]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If specified, the delete method determines how the data array will be deallocated. If the delete method is VTK_DATA_ARRAY_FREE, free() will be used. If the delete method is DELETE, delete[] will be used. The default is FREE.

Definition at line 277 of file vtkDataArrayTemplate.h.

template<class T>
virtual void vtkDataArrayTemplate< T >::SetVoidArray ( void *  array,
vtkIdType  size,
int  save
) [inline, virtual]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If specified, the delete method determines how the data array will be deallocated. If the delete method is VTK_DATA_ARRAY_FREE, free() will be used. If the delete method is DELETE, delete[] will be used. The default is FREE.

Definition at line 279 of file vtkDataArrayTemplate.h.

template<class T>
virtual void vtkDataArrayTemplate< T >::SetVoidArray ( void *  array,
vtkIdType  size,
int  save,
int  deleteMethod
) [inline, virtual]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If specified, the delete method determines how the data array will be deallocated. If the delete method is VTK_DATA_ARRAY_FREE, free() will be used. If the delete method is DELETE, delete[] will be used. The default is FREE.

Definition at line 281 of file vtkDataArrayTemplate.h.

template<class T>
virtual void vtkDataArrayTemplate< T >::ExportToVoidPointer ( void *  out_ptr) [virtual]

This method copies the array data to the void pointer specified by the user. It is up to the user to allocate enough memory for the void pointer.

template<class T>
virtual vtkArrayIterator* vtkDataArrayTemplate< T >::NewIterator ( ) [virtual]

Returns a vtkArrayIteratorTemplate<T>.

Implements vtkAbstractArray.

template<class T>
virtual vtkIdType vtkDataArrayTemplate< T >::LookupValue ( vtkVariant  value) [virtual]

Return the indices where a specific value appears.

Implements vtkAbstractArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::LookupValue ( vtkVariant  value,
vtkIdList ids
) [virtual]

Return the indices where a specific value appears.

Implements vtkAbstractArray.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::LookupValue ( value)

Return the indices where a specific value appears.

template<class T>
void vtkDataArrayTemplate< T >::LookupValue ( value,
vtkIdList ids
)

Return the indices where a specific value appears.

template<class T>
vtkIdType vtkDataArrayTemplate< T >::LookupTypedValue ( value) [inline, virtual]

Return the indices where a specific value appears.

Implements vtkTypedDataArray< T >.

Definition at line 304 of file vtkDataArrayTemplate.h.

template<class T>
void vtkDataArrayTemplate< T >::LookupTypedValue ( value,
vtkIdList ids
) [inline, virtual]

Return the indices where a specific value appears.

Implements vtkTypedDataArray< T >.

Definition at line 306 of file vtkDataArrayTemplate.h.

template<class T>
virtual void vtkDataArrayTemplate< T >::DataChanged ( ) [virtual]

Tell the array explicitly that the data has changed. This is only necessary to call when you modify the array contents without using the array's API (i.e. you retrieve a pointer to the data and modify the array contents). You need to call this so that the fast lookup will know to rebuild itself. Otherwise, the lookup functions will give incorrect results.

Implements vtkAbstractArray.

template<class T>
virtual void vtkDataArrayTemplate< T >::DataElementChanged ( vtkIdType  id) [virtual]

Tell the array explicitly that a single data element has changed. Like DataChanged(), then is only necessary when you modify the array contents without using the array's API.

template<class T>
virtual void vtkDataArrayTemplate< T >::ClearLookup ( ) [virtual]

Delete the associated fast lookup data structure on this array, if it exists. The lookup will be rebuilt on the next call to a lookup function.

Implements vtkAbstractArray.

template<class T>
virtual int vtkDataArrayTemplate< T >::GetArrayType ( ) [inline, virtual]

Method for type-checking in FastDownCast implementations.

Reimplemented from vtkTypedDataArray< T >.

Definition at line 329 of file vtkDataArrayTemplate.h.

template<class T>
T* vtkDataArrayTemplate< T >::ResizeAndExtend ( vtkIdType  sz) [protected]
template<class T>
T* vtkDataArrayTemplate< T >::Realloc ( vtkIdType  sz) [protected]
template<class T>
virtual bool vtkDataArrayTemplate< T >::ComputeScalarRange ( double ranges) [protected, virtual]

Computes the range for each component of an array, the length of ranges must be two times the number of components. Returns true if the range was computed. Will return false if you try to compute the range of an array of length zero.

Reimplemented from vtkDataArray.

template<class T>
virtual bool vtkDataArrayTemplate< T >::ComputeVectorRange ( double  range[2]) [protected, virtual]

Reimplemented from vtkDataArray.


Friends And Related Function Documentation

template<class T>
friend class vtkDataArrayTemplateHelper [friend]

Reimplemented from vtkAbstractArray.

Definition at line 41 of file vtkDataArrayTemplate.h.


Member Data Documentation

template<class T>
T* vtkDataArrayTemplate< T >::Array [protected]

Definition at line 335 of file vtkDataArrayTemplate.h.

template<class T>
T vtkDataArrayTemplate< T >::ValueRange[2] [protected]

Definition at line 336 of file vtkDataArrayTemplate.h.

template<class T>
int vtkDataArrayTemplate< T >::TupleSize [protected]

Definition at line 340 of file vtkDataArrayTemplate.h.

template<class T>
double* vtkDataArrayTemplate< T >::Tuple [protected]

Definition at line 341 of file vtkDataArrayTemplate.h.

template<class T>
int vtkDataArrayTemplate< T >::SaveUserArray [protected]

Definition at line 343 of file vtkDataArrayTemplate.h.

template<class T>
int vtkDataArrayTemplate< T >::DeleteMethod [protected]

Definition at line 344 of file vtkDataArrayTemplate.h.


The documentation for this class was generated from the following file:
