vtkTexture Class Reference

#include <vtkTexture.h>

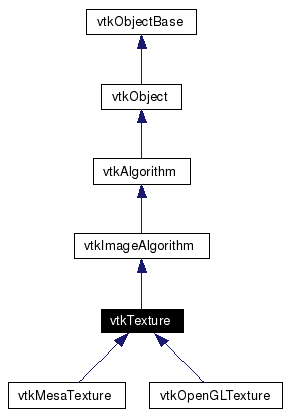

Inheritance diagram for vtkTexture:

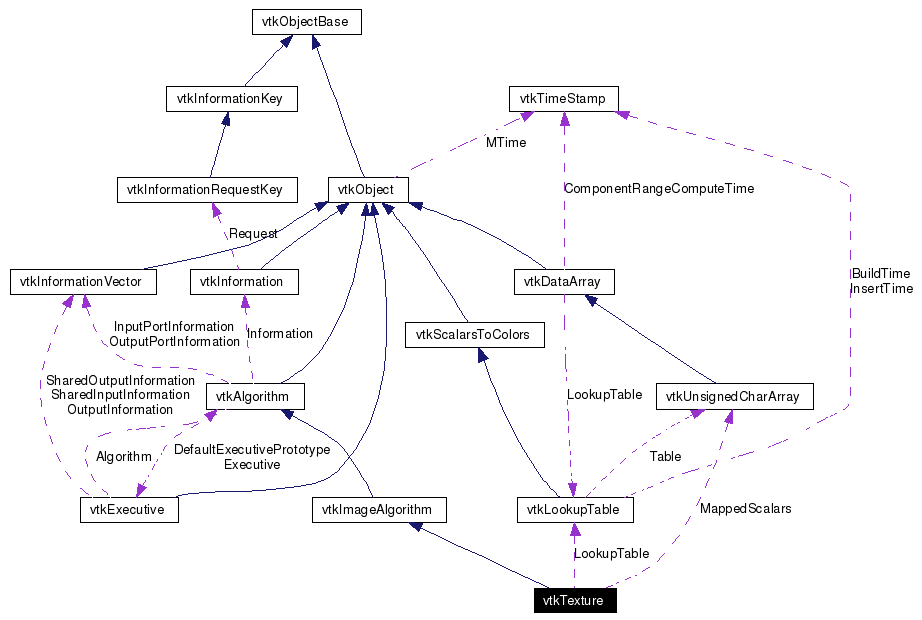

[legend]Collaboration diagram for vtkTexture:

[legend]List of all members.

---

Detailed Description

handles properties associated with a texture map

vtkTexture is an object that handles loading and binding of texture maps. It obtains its data from an input image data dataset type. Thus you can create visualization pipelines to read, process, and construct textures. Note that textures will only work if texture coordinates are also defined, and if the rendering system supports texture.

Instances of vtkTexture are associated with actors via the actor's SetTexture() method. Actors can share texture maps (this is encouraged to save memory resources.)

Warning:

Currently only 2D texture maps are supported, even though the data pipeline supports 1,2, and 3D texture coordinates.

Some renderers such as OpenGL require that the texture map dimensions are a power of two in each direction. Other renderers may have similar (ridiculous) restrictions, so be careful out there... (Note: a recent change to vtk allows use of non-power of two texture maps in OpenGL. The texture is automatically resampled to a power of two in one or more directions.)

See also:

vtkActor vtkRenderer vtkOpenGLTexture

Examples:

vtkTexture (Examples)

Tests:

vtkTexture (Tests)

Definition at line 66 of file vtkTexture.h.

Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Render (vtkRenderer *ren)
virtual void	ReleaseGraphicsResources (vtkWindow *)
unsigned char *	MapScalarsToColors (vtkDataArray *scalars)
virtual void	Load (vtkRenderer *)
virtual int	GetRepeat ()
virtual void	SetRepeat (int)
virtual void	RepeatOn ()
virtual void	RepeatOff ()
virtual int	GetInterpolate ()
virtual void	SetInterpolate (int)
virtual void	InterpolateOn ()
virtual void	InterpolateOff ()
virtual void	SetQuality (int)
virtual int	GetQuality ()
void	SetQualityToDefault ()
void	SetQualityTo16Bit ()
void	SetQualityTo32Bit ()
virtual int	GetMapColorScalarsThroughLookupTable ()
virtual void	SetMapColorScalarsThroughLookupTable (int)
virtual void	MapColorScalarsThroughLookupTableOn ()
virtual void	MapColorScalarsThroughLookupTableOff ()
vtkImageData *	GetInput ()
void	SetLookupTable (vtkLookupTable *)
virtual vtkLookupTable *	GetLookupTable ()
virtual vtkUnsignedCharArray *	GetMappedScalars ()
Static Public Member Functions
static vtkTexture *	New ()
static int	IsTypeOf (const char *type)
static vtkTexture *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTexture ()
	~vtkTexture ()
Protected Attributes
int	Repeat
int	Interpolate
int	Quality
int	MapColorScalarsThroughLookupTable
vtkLookupTable *	LookupTable
vtkUnsignedCharArray *	MappedScalars
int	SelfAdjustingTableRange

---

Member Typedef Documentation

typedef vtkImageAlgorithm vtkTexture::Superclass

Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture. Definition at line 70 of file vtkTexture.h.

---

Constructor & Destructor Documentation

vtkTexture::vtkTexture (   )  [protected]

vtkTexture::~vtkTexture (   )  [protected]

---

Member Function Documentation

static vtkTexture* vtkTexture::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

virtual const char* vtkTexture::GetClassName (   )  [virtual]

Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

static int vtkTexture::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

virtual int vtkTexture::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

static vtkTexture* vtkTexture::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

void vtkTexture::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageAlgorithm. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture.

virtual void vtkTexture::Render (  vtkRenderer *  ren  )  [virtual]

Renders a texture map. It first checks the object's modified time to make sure the texture maps Input is valid, then it invokes the Load() method.

virtual void vtkTexture::ReleaseGraphicsResources (  vtkWindow *   )  [inline, virtual]

Release any graphics resources that are being consumed by this texture. The parameter window could be used to determine which graphic resources to release. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture. Definition at line 81 of file vtkTexture.h.

virtual void vtkTexture::Load (  vtkRenderer *   )  [inline, virtual]

Abstract interface to renderer. Each concrete subclass of vtkTexture will load its data into graphics system in response to this method invocation. Reimplemented in vtkMesaTexture, and vtkOpenGLTexture. Definition at line 86 of file vtkTexture.h.

virtual int vtkTexture::GetRepeat (   )  [virtual]

Turn on/off the repetition of the texture map when the texture coords extend beyond the [0,1] range.

virtual void vtkTexture::SetRepeat (  int   )  [virtual]

Abstract interface to renderer. Each concrete subclass of vtkTexture will load its data into graphics system in response to this method invocation.

virtual void vtkTexture::RepeatOn (   )  [virtual]

Abstract interface to renderer. Each concrete subclass of vtkTexture will load its data into graphics system in response to this method invocation.

virtual void vtkTexture::RepeatOff (   )  [virtual]

Abstract interface to renderer. Each concrete subclass of vtkTexture will load its data into graphics system in response to this method invocation.

virtual int vtkTexture::GetInterpolate (   )  [virtual]

Turn on/off linear interpolation of the texture map when rendering.

virtual void vtkTexture::SetInterpolate (  int   )  [virtual]

Turn on/off linear interpolation of the texture map when rendering.

virtual void vtkTexture::InterpolateOn (   )  [virtual]

Turn on/off linear interpolation of the texture map when rendering.

virtual void vtkTexture::InterpolateOff (   )  [virtual]

Turn on/off linear interpolation of the texture map when rendering.

virtual void vtkTexture::SetQuality (  int   )  [virtual]

Force texture quality to 16-bit or 32-bit. This might not be supported on all machines.

virtual int vtkTexture::GetQuality (   )  [virtual]

Force texture quality to 16-bit or 32-bit. This might not be supported on all machines.

void vtkTexture::SetQualityToDefault (   )  [inline]

Force texture quality to 16-bit or 32-bit. This might not be supported on all machines. Definition at line 108 of file vtkTexture.h. References VTK_TEXTURE_QUALITY_DEFAULT.

void vtkTexture::SetQualityTo16Bit (   )  [inline]

Force texture quality to 16-bit or 32-bit. This might not be supported on all machines. Definition at line 109 of file vtkTexture.h. References VTK_TEXTURE_QUALITY_16BIT.

void vtkTexture::SetQualityTo32Bit (   )  [inline]

Force texture quality to 16-bit or 32-bit. This might not be supported on all machines. Definition at line 110 of file vtkTexture.h. References VTK_TEXTURE_QUALITY_32BIT.

virtual int vtkTexture::GetMapColorScalarsThroughLookupTable (   )  [virtual]

Turn on/off the mapping of color scalars through the lookup table. The default is Off. If Off, unsigned char scalars will be used directly as texture. If On, scalars will be mapped through the lookup table to generate 4-component unsigned char scalars. This ivar does not affect other scalars like unsigned short, float, etc. These scalars are always mapped through lookup tables.

virtual void vtkTexture::SetMapColorScalarsThroughLookupTable (  int   )  [virtual]

Turn on/off the mapping of color scalars through the lookup table. The default is Off. If Off, unsigned char scalars will be used directly as texture. If On, scalars will be mapped through the lookup table to generate 4-component unsigned char scalars. This ivar does not affect other scalars like unsigned short, float, etc. These scalars are always mapped through lookup tables.

virtual void vtkTexture::MapColorScalarsThroughLookupTableOn (   )  [virtual]

Turn on/off the mapping of color scalars through the lookup table. The default is Off. If Off, unsigned char scalars will be used directly as texture. If On, scalars will be mapped through the lookup table to generate 4-component unsigned char scalars. This ivar does not affect other scalars like unsigned short, float, etc. These scalars are always mapped through lookup tables.

virtual void vtkTexture::MapColorScalarsThroughLookupTableOff (   )  [virtual]

Turn on/off the mapping of color scalars through the lookup table. The default is Off. If Off, unsigned char scalars will be used directly as texture. If On, scalars will be mapped through the lookup table to generate 4-component unsigned char scalars. This ivar does not affect other scalars like unsigned short, float, etc. These scalars are always mapped through lookup tables.

vtkImageData* vtkTexture::GetInput (   )

This process object accepts image data as input. Reimplemented from vtkImageAlgorithm.

void vtkTexture::SetLookupTable (  vtkLookupTable *   )

Specify the lookup table to convert scalars if necessary

virtual vtkLookupTable* vtkTexture::GetLookupTable (   )  [virtual]

This process object accepts image data as input.

virtual vtkUnsignedCharArray* vtkTexture::GetMappedScalars (   )  [virtual]

Get Mapped Scalars

unsigned char* vtkTexture::MapScalarsToColors (  vtkDataArray *  scalars  )

Map scalar values into color scalars.

---

Member Data Documentation

int vtkTexture::Repeat [protected]

Definition at line 148 of file vtkTexture.h.

int vtkTexture::Interpolate [protected]

Definition at line 149 of file vtkTexture.h.

int vtkTexture::Quality [protected]

Definition at line 150 of file vtkTexture.h.

int vtkTexture::MapColorScalarsThroughLookupTable [protected]

Definition at line 151 of file vtkTexture.h.

vtkLookupTable* vtkTexture::LookupTable [protected]

Definition at line 152 of file vtkTexture.h.

vtkUnsignedCharArray* vtkTexture::MappedScalars [protected]

Definition at line 153 of file vtkTexture.h.

int vtkTexture::SelfAdjustingTableRange [protected]

Definition at line 156 of file vtkTexture.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkTexture.h

---
