vtkMapper2D Class Reference

#include <vtkMapper2D.h>

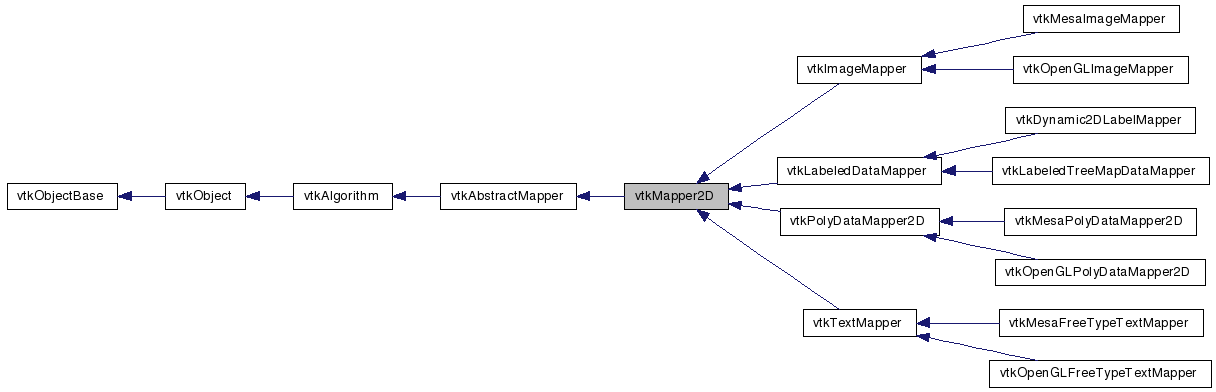

Inheritance diagram for vtkMapper2D:

Inheritance graph
[legend]

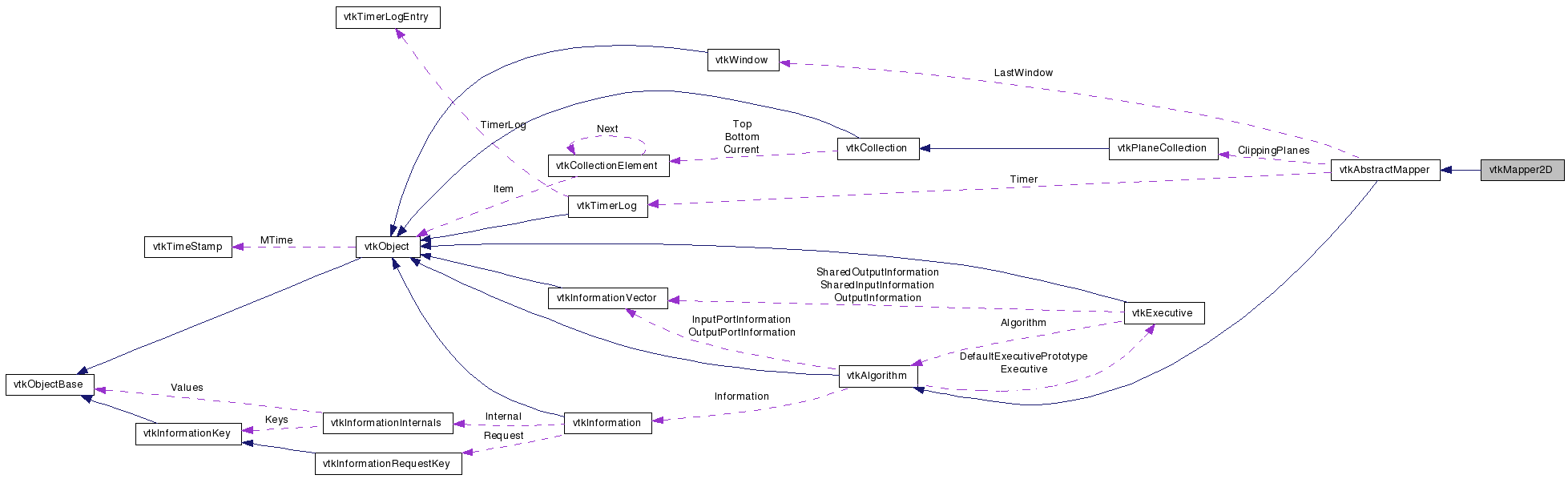

Collaboration diagram for vtkMapper2D:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract class specifies interface for objects which render 2D actors

vtkMapper2D is an abstract class which defines the interface for objects which render two dimensional actors (vtkActor2D).

See also:
vtkActor2D

Definition at line 33 of file vtkMapper2D.h.


Public Types

typedef vtkAbstractMapper Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void RenderOverlay (vtkViewport *, vtkActor2D *)
virtual void RenderOpaqueGeometry (vtkViewport *, vtkActor2D *)
virtual void RenderTranslucentPolygonalGeometry (vtkViewport *, vtkActor2D *)
virtual int HasTranslucentPolygonalGeometry ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMapper2DSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMapper2D ()
 ~vtkMapper2D ()

Member Typedef Documentation


Constructor & Destructor Documentation

vtkMapper2D::vtkMapper2D (  )  [inline, protected]

Definition at line 45 of file vtkMapper2D.h.

vtkMapper2D::~vtkMapper2D (  )  [inline, protected]

Definition at line 46 of file vtkMapper2D.h.


Member Function Documentation

virtual const char* vtkMapper2D::GetClassName (  )  [virtual]

static int vtkMapper2D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkLabeledTreeMapDataMapper, vtkDynamic2DLabelMapper, vtkImageMapper, vtkLabeledDataMapper, vtkMesaFreeTypeTextMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLFreeTypeTextMapper, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, and vtkTextMapper.

virtual int vtkMapper2D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkLabeledTreeMapDataMapper, vtkDynamic2DLabelMapper, vtkImageMapper, vtkLabeledDataMapper, vtkMesaFreeTypeTextMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLFreeTypeTextMapper, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, and vtkTextMapper.

static vtkMapper2D* vtkMapper2D::SafeDownCast ( vtkObject o  )  [static]

void vtkMapper2D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkLabeledTreeMapDataMapper, vtkDynamic2DLabelMapper, vtkImageMapper, vtkLabeledDataMapper, vtkMesaFreeTypeTextMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLFreeTypeTextMapper, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, and vtkTextMapper.

virtual void vtkMapper2D::RenderOverlay ( vtkViewport ,
vtkActor2D
) [inline, virtual]

virtual void vtkMapper2D::RenderOpaqueGeometry ( vtkViewport ,
vtkActor2D
) [inline, virtual]

virtual void vtkMapper2D::RenderTranslucentPolygonalGeometry ( vtkViewport ,
vtkActor2D
) [inline, virtual]

Definition at line 41 of file vtkMapper2D.h.

virtual int vtkMapper2D::HasTranslucentPolygonalGeometry (  )  [inline, virtual]

Definition at line 42 of file vtkMapper2D.h.


The documentation for this class was generated from the following file:
