vtkMesaPolyDataMapper2D Class Reference

#include <vtkMesaPolyDataMapper2D.h>

Inheritance diagram for vtkMesaPolyDataMapper2D:

Inheritance graph
[legend]

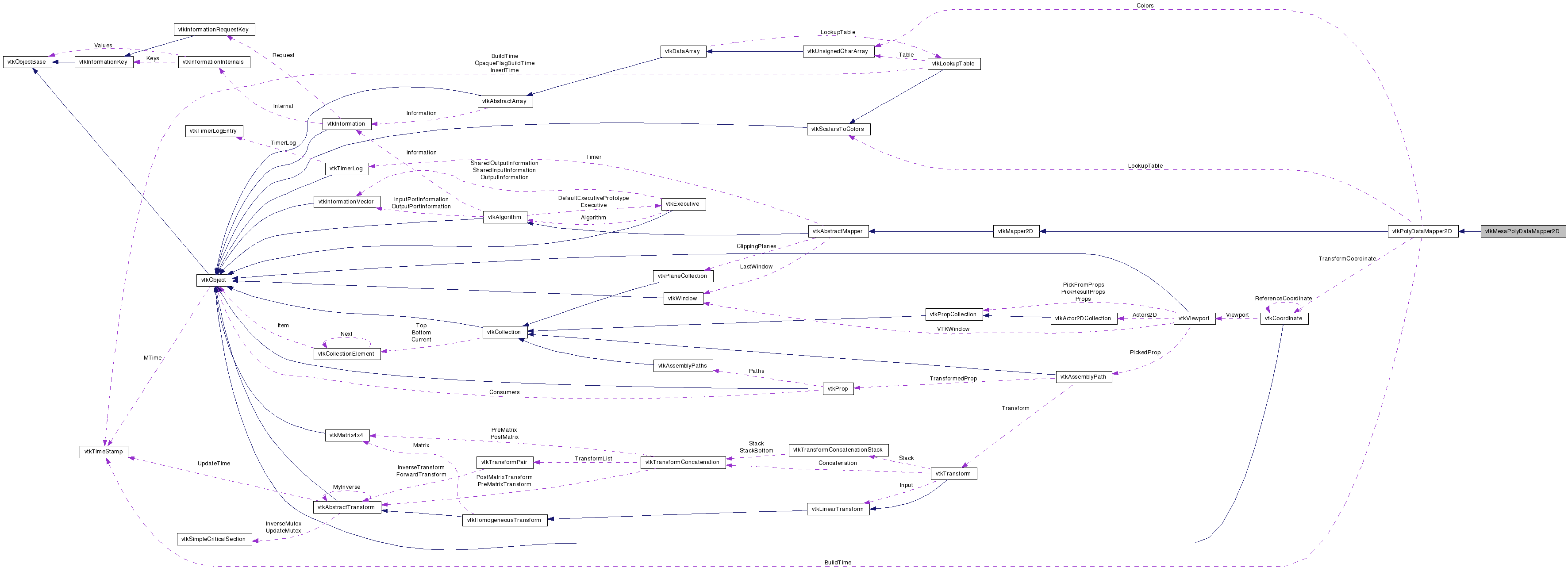

Collaboration diagram for vtkMesaPolyDataMapper2D:

Collaboration graph
[legend]

List of all members.


Detailed Description

2D PolyData support for Mesa

vtkMesaPolyDataMapper2D provides 2D PolyData annotation support for vtk under Mesa. Normally the user should use vtkPolyDataMapper2D which in turn will use this class.

See also:
vtkPolyDataMapper2D

Definition at line 31 of file vtkMesaPolyDataMapper2D.h.


Public Types

typedef vtkPolyDataMapper2D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void RenderOverlay (vtkViewport *viewport, vtkActor2D *actor)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMesaPolyDataMapper2DSafeDownCast (vtkObject *o)
static vtkMesaPolyDataMapper2DNew ()

Protected Member Functions

 vtkMesaPolyDataMapper2D ()
 ~vtkMesaPolyDataMapper2D ()

Member Typedef Documentation

Reimplemented from vtkPolyDataMapper2D.

Definition at line 34 of file vtkMesaPolyDataMapper2D.h.


Constructor & Destructor Documentation

vtkMesaPolyDataMapper2D::vtkMesaPolyDataMapper2D (  )  [inline, protected]

Definition at line 42 of file vtkMesaPolyDataMapper2D.h.

vtkMesaPolyDataMapper2D::~vtkMesaPolyDataMapper2D (  )  [inline, protected]

Definition at line 43 of file vtkMesaPolyDataMapper2D.h.


Member Function Documentation

virtual const char* vtkMesaPolyDataMapper2D::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataMapper2D.

static int vtkMesaPolyDataMapper2D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataMapper2D.

virtual int vtkMesaPolyDataMapper2D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataMapper2D.

static vtkMesaPolyDataMapper2D* vtkMesaPolyDataMapper2D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataMapper2D.

static vtkMesaPolyDataMapper2D* vtkMesaPolyDataMapper2D::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataMapper2D.

virtual void vtkMesaPolyDataMapper2D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataMapper2D.

void vtkMesaPolyDataMapper2D::RenderOverlay ( vtkViewport viewport,
vtkActor2D actor
) [virtual]

Actually draw the poly data.

Reimplemented from vtkMapper2D.


The documentation for this class was generated from the following file:
