vtkOpenGLDisplayListPainter Class Reference

#include <vtkOpenGLDisplayListPainter.h>

Inheritance diagram for vtkOpenGLDisplayListPainter:

Inheritance graph
[legend]

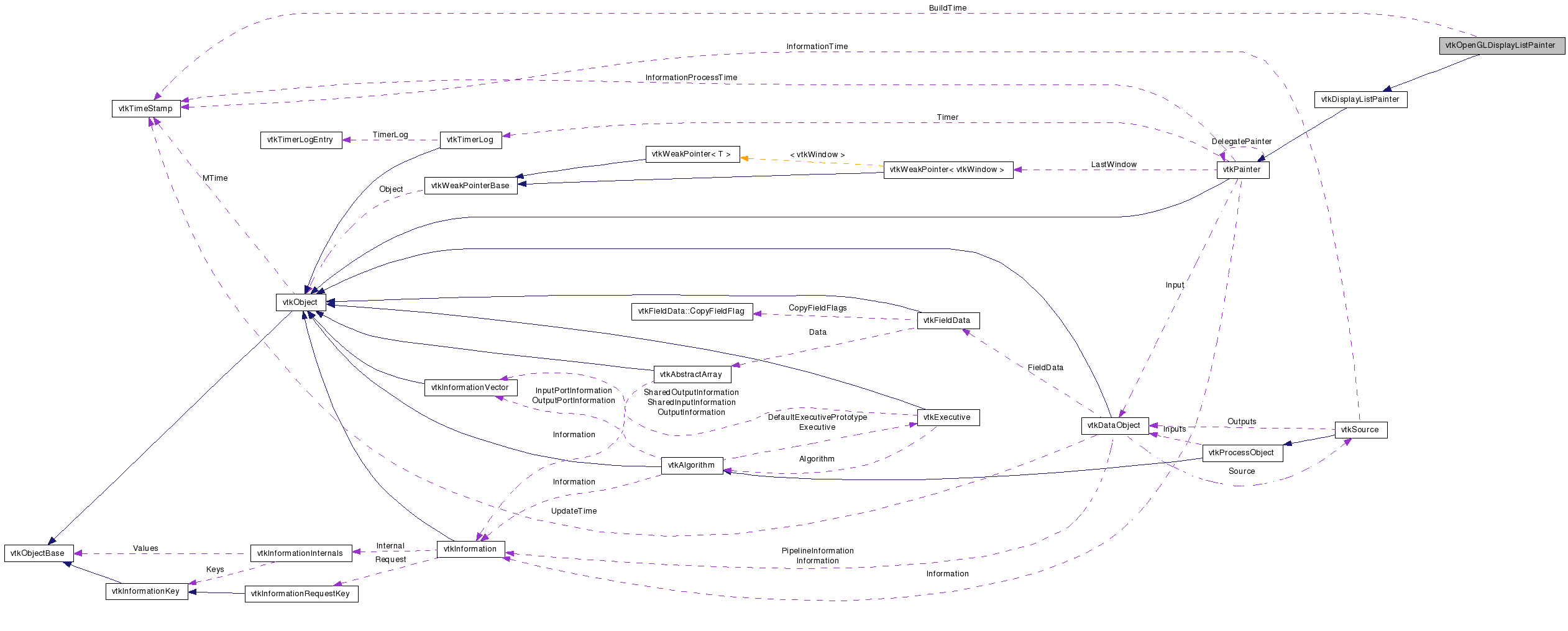

Collaboration diagram for vtkOpenGLDisplayListPainter:

Collaboration graph
[legend]

List of all members.


Detailed Description

display list painter using OpenGL.

vtkOpenGLDisplayListPainter creates an OpenGL display list for rendering.

Definition at line 26 of file vtkOpenGLDisplayListPainter.h.


Public Types

typedef vtkDisplayListPainter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void ReleaseGraphicsResources (vtkWindow *)

Static Public Member Functions

static
vtkOpenGLDisplayListPainter
New ()
static int IsTypeOf (const char *type)
static
vtkOpenGLDisplayListPainter
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkOpenGLDisplayListPainter ()
 ~vtkOpenGLDisplayListPainter ()
void ReleaseList ()
virtual void RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags)

Protected Attributes

unsigned int DisplayListId
vtkTimeStamp BuildTime
unsigned long LastUsedTypeFlags

Member Typedef Documentation

Reimplemented from vtkDisplayListPainter.

Definition at line 30 of file vtkOpenGLDisplayListPainter.h.


Constructor & Destructor Documentation

vtkOpenGLDisplayListPainter::vtkOpenGLDisplayListPainter (  )  [protected]

vtkOpenGLDisplayListPainter::~vtkOpenGLDisplayListPainter (  )  [protected]


Member Function Documentation

static vtkOpenGLDisplayListPainter* vtkOpenGLDisplayListPainter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDisplayListPainter.

virtual const char* vtkOpenGLDisplayListPainter::GetClassName (  )  [virtual]

Reimplemented from vtkDisplayListPainter.

static int vtkOpenGLDisplayListPainter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDisplayListPainter.

virtual int vtkOpenGLDisplayListPainter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDisplayListPainter.

static vtkOpenGLDisplayListPainter* vtkOpenGLDisplayListPainter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDisplayListPainter.

void vtkOpenGLDisplayListPainter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDisplayListPainter.

virtual void vtkOpenGLDisplayListPainter::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release. In this case, releases the display lists.

Reimplemented from vtkPainter.

void vtkOpenGLDisplayListPainter::ReleaseList (  )  [protected]

virtual void vtkOpenGLDisplayListPainter::RenderInternal ( vtkRenderer renderer,
vtkActor actor,
unsigned long  typeflags
) [protected, virtual]

If not using ImmediateModeRendering, this will build a display list, if outdated and use the display list.

Reimplemented from vtkPainter.


Member Data Documentation

Definition at line 42 of file vtkOpenGLDisplayListPainter.h.

Definition at line 43 of file vtkOpenGLDisplayListPainter.h.

Definition at line 54 of file vtkOpenGLDisplayListPainter.h.


The documentation for this class was generated from the following file:
