vtkPainter Class Reference

#include <vtkPainter.h>

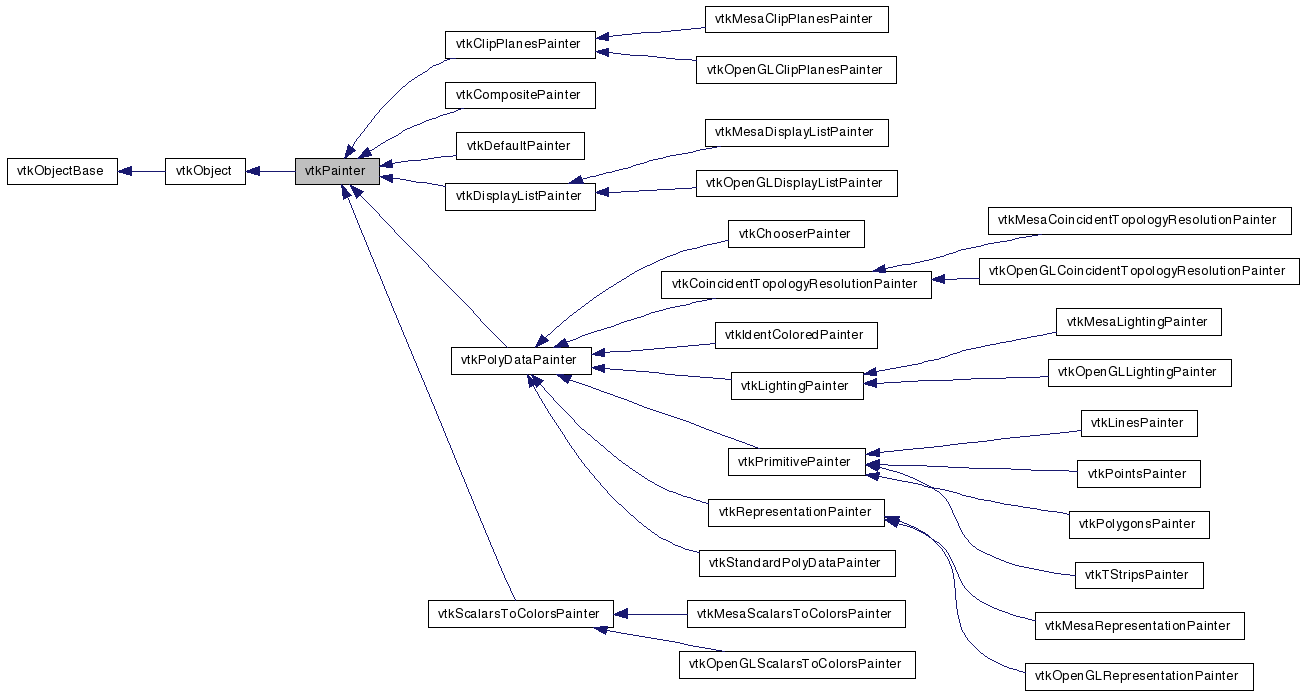

Inheritance diagram for vtkPainter:

[legend]

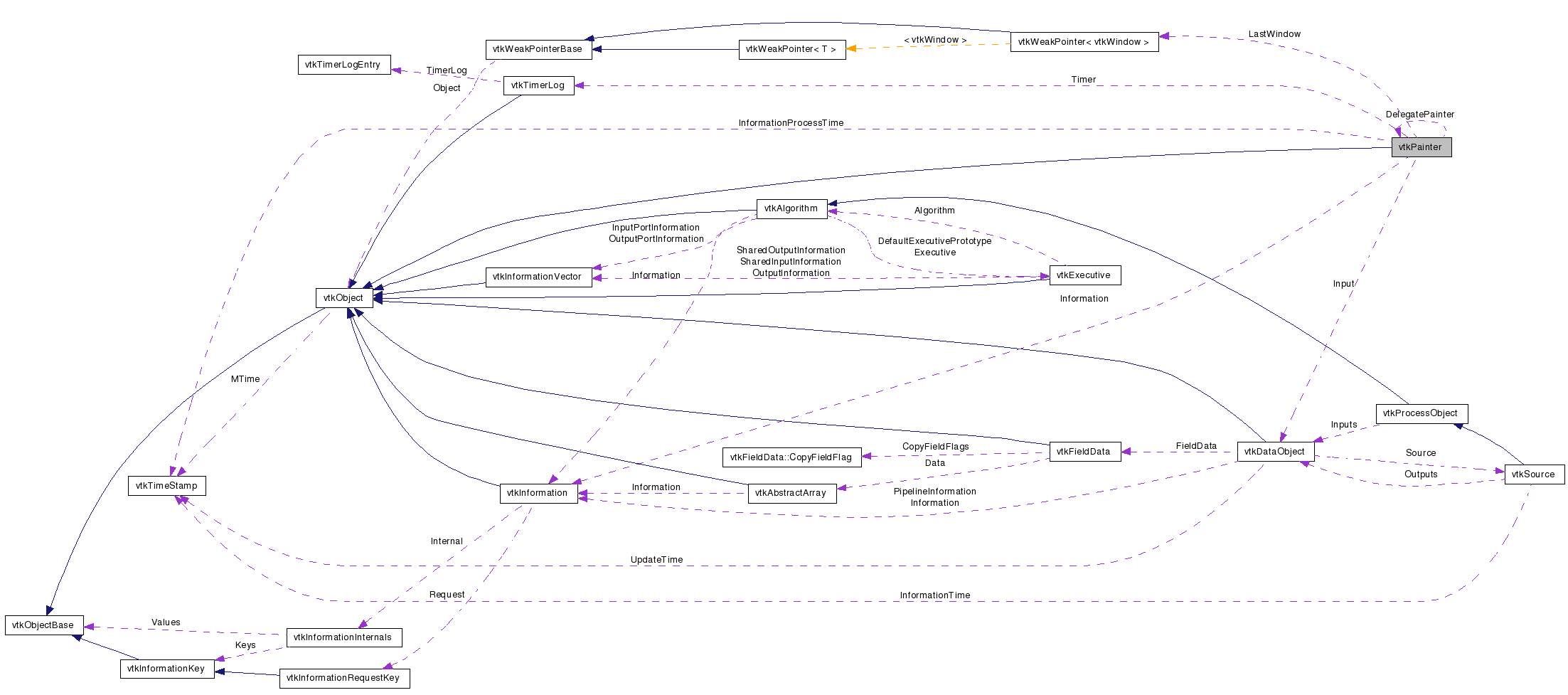

Collaboration diagram for vtkPainter:

[legend]

List of all members.

Detailed Description

Abstract class for drawing poly data.

This defines the interface for a Painter. Painters are helpers used by Mapper to perform the rendering. The mapper sets up a chain of painters and passes the render request to the painter. Every painter may have a delegate painter to which the render request is forwarded. The Painter may modify the request or data before passing it to the delegate painter. All the information to control the rendering must be passed to the painter using the vtkInformation object. A concrete painter may read special keys from the vtkInformation object and affect the rendering.

See also:: vtkPainterPolyDataMapper

Events:: vtkCommand::ProgressEvent

Definition at line 60 of file vtkPainter.h.


Public Types
enum	{ VERTS = 0x1, LINES = 0x2, POLYS = 0x4, STRIPS = 0x8 }
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual double	GetTimeToDraw ()
virtual void	UpdateBounds (double bounds[6])

virtual vtkInformation *	GetInformation ()
virtual void	SetInformation (vtkInformation *)

virtual vtkPainter *	GetDelegatePainter ()
virtual void	SetDelegatePainter (vtkPainter *)

virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)

virtual void	Render (vtkRenderer renderer, vtkActor actor, unsigned long typeflags)

virtual void	SetProgress (double)
virtual double	GetProgress ()

void	SetInput (vtkDataObject *)
virtual vtkDataObject *	GetInput ()

virtual vtkDataObject *	GetOutput ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPainter *	SafeDownCast (vtkObject *o)
static vtkInformationIntegerKey *	STATIC_DATA ()
static vtkInformationIntegerKey *	CONSERVE_MEMORY ()
static vtkInformationIntegerKey *	HIGH_QUALITY ()
Protected Member Functions
	vtkPainter ()
	~vtkPainter ()
virtual void	ReportReferences (vtkGarbageCollector *collector)
void	UpdateDelegatePainter ()
virtual void	PassInformation (vtkPainter *toPainter)
virtual void	PrepareForRendering (vtkRenderer , vtkActor )
virtual void	UpdateDelegateProgress (vtkPainter *delegate, double amount)
virtual void	ProcessInformation (vtkInformation *)
virtual void	ObserverPainterProgress (vtkPainter *toObserve)
void	UpdateProgress (double amount)

virtual void	RenderInternal (vtkRenderer renderer, vtkActor actor, unsigned long typeflags)
Protected Attributes
vtkTimeStamp	InformationProcessTime
vtkPainterObserver *	Observer
vtkInformation *	Information
vtkPainter *	DelegatePainter
double	Progress
double	ProgressOffset
double	ProgressScaleFactor
double	TimeToDraw
vtkTimerLog *	Timer
vtkWeakPointer< vtkWindow >	LastWindow
Friends
class	vtkPainterObserver

Member Typedef Documentation

typedef vtkObject vtkPainter::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkChooserPainter, vtkClipPlanesPainter, vtkCoincidentTopologyResolutionPainter, vtkCompositePainter, vtkDefaultPainter, vtkDisplayListPainter, vtkIdentColoredPainter, vtkLightingPainter, vtkLinesPainter, vtkMesaClipPlanesPainter, vtkMesaCoincidentTopologyResolutionPainter, vtkMesaDisplayListPainter, vtkMesaLightingPainter, vtkMesaRepresentationPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLClipPlanesPainter, vtkOpenGLCoincidentTopologyResolutionPainter, vtkOpenGLDisplayListPainter, vtkOpenGLLightingPainter, vtkOpenGLRepresentationPainter, vtkOpenGLScalarsToColorsPainter, vtkPointsPainter, vtkPolyDataPainter, vtkPolygonsPainter, vtkPrimitivePainter, vtkRepresentationPainter, vtkScalarsToColorsPainter, vtkStandardPolyDataPainter, and vtkTStripsPainter.

Definition at line 63 of file vtkPainter.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

VERTS
LINES
POLYS
STRIPS

Definition at line 103 of file vtkPainter.h.

Constructor & Destructor Documentation

vtkPainter::vtkPainter ( ) [protected]

vtkPainter::~vtkPainter ( ) [protected]

Member Function Documentation

virtual const char* vtkPainter::GetClassName ( ) [virtual]

static int vtkPainter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkChooserPainter, vtkClipPlanesPainter, vtkCoincidentTopologyResolutionPainter, vtkCompositePainter, vtkDefaultPainter, vtkDisplayListPainter, vtkIdentColoredPainter, vtkLightingPainter, vtkLinesPainter, vtkMesaClipPlanesPainter, vtkMesaCoincidentTopologyResolutionPainter, vtkMesaDisplayListPainter, vtkMesaLightingPainter, vtkMesaRepresentationPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLClipPlanesPainter, vtkOpenGLCoincidentTopologyResolutionPainter, vtkOpenGLDisplayListPainter, vtkOpenGLLightingPainter, vtkOpenGLRepresentationPainter, vtkOpenGLScalarsToColorsPainter, vtkPointsPainter, vtkPolyDataPainter, vtkPolygonsPainter, vtkPrimitivePainter, vtkRepresentationPainter, vtkScalarsToColorsPainter, vtkStandardPolyDataPainter, and vtkTStripsPainter.

virtual int vtkPainter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkChooserPainter, vtkClipPlanesPainter, vtkCoincidentTopologyResolutionPainter, vtkCompositePainter, vtkDefaultPainter, vtkDisplayListPainter, vtkIdentColoredPainter, vtkLightingPainter, vtkLinesPainter, vtkMesaClipPlanesPainter, vtkMesaCoincidentTopologyResolutionPainter, vtkMesaDisplayListPainter, vtkMesaLightingPainter, vtkMesaRepresentationPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLClipPlanesPainter, vtkOpenGLCoincidentTopologyResolutionPainter, vtkOpenGLDisplayListPainter, vtkOpenGLLightingPainter, vtkOpenGLRepresentationPainter, vtkOpenGLScalarsToColorsPainter, vtkPointsPainter, vtkPolyDataPainter, vtkPolygonsPainter, vtkPrimitivePainter, vtkRepresentationPainter, vtkScalarsToColorsPainter, vtkStandardPolyDataPainter, and vtkTStripsPainter.

static vtkPainter* vtkPainter::SafeDownCast ( vtkObject * o ) [static]

virtual void vtkPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkChooserPainter, vtkClipPlanesPainter, vtkCoincidentTopologyResolutionPainter, vtkCompositePainter, vtkDefaultPainter, vtkDisplayListPainter, vtkIdentColoredPainter, vtkLightingPainter, vtkLinesPainter, vtkMesaClipPlanesPainter, vtkMesaCoincidentTopologyResolutionPainter, vtkMesaDisplayListPainter, vtkMesaLightingPainter, vtkMesaRepresentationPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLClipPlanesPainter, vtkOpenGLCoincidentTopologyResolutionPainter, vtkOpenGLDisplayListPainter, vtkOpenGLLightingPainter, vtkOpenGLRepresentationPainter, vtkOpenGLScalarsToColorsPainter, vtkPointsPainter, vtkPolyDataPainter, vtkPolygonsPainter, vtkPrimitivePainter, vtkRepresentationPainter, vtkScalarsToColorsPainter, vtkStandardPolyDataPainter, and vtkTStripsPainter.

static vtkInformationIntegerKey* vtkPainter::STATIC_DATA ( ) [static]

Keys used to specify control the behaviour of the painter. When on, the painter assumes that the poly data changes infrequently. It is thus more likely to take time and memory to build auxiliary data structures for faster frame rates. Is off by default.

static vtkInformationIntegerKey* vtkPainter::CONSERVE_MEMORY ( ) [static]

Keys used to specify control the behaviour of the painter. When on, the painter avoids using more memory than it has to. Thus, auxiliary data structures for faster rendering may not be built. Is off by default.

static vtkInformationIntegerKey* vtkPainter::HIGH_QUALITY ( ) [static]

Keys used to specify control the behaviour of the painter. When off, the painter may make approximations that will make the rendering go faster but may degrade image quality. Is on by default.

virtual vtkInformation* vtkPainter::GetInformation ( ) [virtual]

Get/Set the information object associated with this painter.

virtual void vtkPainter::SetInformation ( vtkInformation * ) [virtual]

Get/Set the information object associated with this painter.

virtual vtkPainter* vtkPainter::GetDelegatePainter ( ) [virtual]

Set/Get the painter to which this painter should propagare its draw calls.

Reimplemented in vtkDefaultPainter.

virtual void vtkPainter::SetDelegatePainter ( vtkPainter * ) [virtual]

Set/Get the painter to which this painter should propagare its draw calls.

Reimplemented in vtkDefaultPainter.

virtual void vtkPainter::Register ( vtkObjectBase * o ) [virtual]

Take part in garbage collection.

Reimplemented from vtkObjectBase.

virtual void vtkPainter::UnRegister ( vtkObjectBase * o ) [virtual]

Take part in garbage collection.

Reimplemented from vtkObjectBase.

virtual void vtkPainter::Render	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags
	)			`[virtual]`

Generates rendering primitives of appropriate type(s). Multiple types of primitives can be requested by or-ring the primitive flags. Default implementation calls UpdateDelegatePainter() to update the deletagate painter and then calls RenderInternal().

Reimplemented in vtkDefaultPainter, and vtkPolyDataPainter.

virtual void vtkPainter::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this painter. The parameter window could be used to determine which graphic resources to release. The call is propagated to the delegate painter, if any.

Reimplemented in vtkDefaultPainter, vtkMesaDisplayListPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLDisplayListPainter, and vtkOpenGLScalarsToColorsPainter.

virtual void vtkPainter::SetProgress ( double ) [virtual]

Set/Get the execution progress of a process object.

virtual double vtkPainter::GetProgress ( ) [virtual]

Set/Get the execution progress of a process object.

virtual double vtkPainter::GetTimeToDraw ( ) [virtual]

Get the time required to draw the geometry last time it was rendered. Default implementation adds the current TimeToDraw with that of the delegate painter.

Reimplemented in vtkDisplayListPainter, vtkOpenGLLightingPainter, and vtkOpenGLRepresentationPainter.

virtual void vtkPainter::UpdateBounds ( double bounds[6] ) [virtual]

Expand or shrink the estimated bounds of the object based on the geometric transformations performed in the painter. If the painter does not modify the geometry, the bounds are passed through.

Reimplemented in vtkDefaultPainter.

void vtkPainter::SetInput ( vtkDataObject * )

Set the data object to paint. Currently we only support one data object per painter chain.

virtual vtkDataObject* vtkPainter::GetInput ( ) [virtual]

Set the data object to paint. Currently we only support one data object per painter chain.

virtual vtkDataObject* vtkPainter::GetOutput ( ) [inline, virtual]

Get the output data object from this painter. The default implementation simply forwards the input data object as the output.

Reimplemented in vtkCompositePainter, vtkPrimitivePainter, and vtkScalarsToColorsPainter.

Definition at line 152 of file vtkPainter.h.

virtual void vtkPainter::ReportReferences ( vtkGarbageCollector * collector ) [protected, virtual]

Take part in garbage collection.

Reimplemented from vtkObjectBase.

Reimplemented in vtkChooserPainter, vtkCompositePainter, vtkDefaultPainter, vtkPrimitivePainter, and vtkScalarsToColorsPainter.

void vtkPainter::UpdateDelegatePainter ( ) [protected]

Updates the delegate painter. This method is called just before the Render call is passed on to the DelegatePainter. Hence, it gets called only if the DelegatePainter is set. Internally calls PassInformation with argument as this->DelegatePainter. Subclasses must not override this method, instead override PassInformation().

virtual void vtkPainter::PassInformation ( vtkPainter * toPainter ) [protected, virtual]

Pass on the information and data (output) from the this to the argument painter. The method passes the information only if it has changed.

virtual void vtkPainter::PrepareForRendering	(	vtkRenderer *	,
		vtkActor *
	)			`[inline, protected, virtual]`

Some subclasses may need to do some preprocessing before the actual rendering can be done eg. build effecient representation for the data etc. This should be done here. This method get called after the ProcessInformation() but before RenderInternal().

Reimplemented in vtkChooserPainter, vtkPrimitivePainter, and vtkScalarsToColorsPainter.

Definition at line 180 of file vtkPainter.h.

virtual void vtkPainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags
	)			`[protected, virtual]`

Performs the actual rendering. Subclasses may override this method. default implementation merely call a Render on the DelegatePainter, if any. When RenderInternal() is called, it is assured that the DelegatePainter is in sync with this painter i.e. UpdateDelegatePainter() has been called.

Reimplemented in vtkChooserPainter, vtkCompositePainter, vtkIdentColoredPainter, vtkLinesPainter, vtkMesaClipPlanesPainter, vtkMesaCoincidentTopologyResolutionPainter, vtkMesaDisplayListPainter, vtkMesaLightingPainter, vtkMesaRepresentationPainter, vtkMesaScalarsToColorsPainter, vtkOpenGLClipPlanesPainter, vtkOpenGLCoincidentTopologyResolutionPainter, vtkOpenGLDisplayListPainter, vtkOpenGLLightingPainter, vtkOpenGLRepresentationPainter, vtkOpenGLScalarsToColorsPainter, vtkPrimitivePainter, and vtkStandardPolyDataPainter.

virtual void vtkPainter::UpdateDelegateProgress	(	vtkPainter *	delegate,
		double	amount
	)			`[protected, virtual]`

Called when the delegate painter reports its progress. Default implementation reports the delegate's progress as its own.

virtual void vtkPainter::ProcessInformation ( vtkInformation * ) [inline, protected, virtual]

Called before RenderInternal() if the Information has been changed since the last time this method was called.

Reimplemented in vtkClipPlanesPainter, vtkCoincidentTopologyResolutionPainter, vtkCompositePainter, vtkDisplayListPainter, vtkPolyDataPainter, vtkPrimitivePainter, vtkScalarsToColorsPainter, and vtkStandardPolyDataPainter.

Definition at line 198 of file vtkPainter.h.

virtual void vtkPainter::ObserverPainterProgress ( vtkPainter * toObserve ) [protected, virtual]

Adds a progress event observer to toObserve. This provides a means for the subclasses to observe progress events from painters.

void vtkPainter::UpdateProgress ( double amount ) [protected]

Update the progress of the process object. Then set the Progress ivar to amount. The parameter amount should range between (0,1). Raises vtkCommand::ProgressEvent.
