vtkPrimitivePainter Class Reference

#include <vtkPrimitivePainter.h>

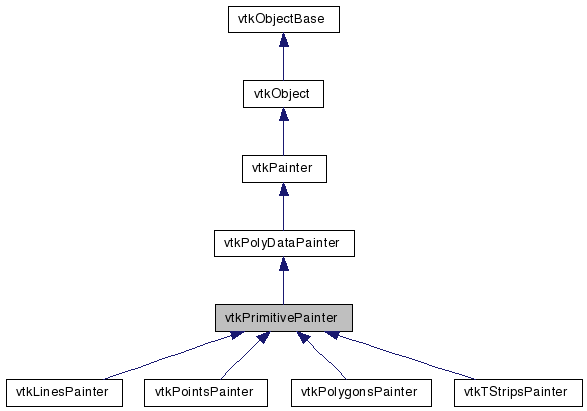

Inheritance diagram for vtkPrimitivePainter:

[legend]

Collaboration diagram for vtkPrimitivePainter:

[legend]

List of all members.

Detailed Description

superclass for class that handle single privmitives.

This is the abstract superclass for classes that handle single type of primitive i.e. verts, lines, polys or tstrips. Concrete subclasses will pass a Render() call to the delegate painter, if any, only if it could not render.

Thanks:: Support for generic vertex attributes in VTK was contributed in collaboration with Stephane Ploix at EDF.

Definition at line 37 of file vtkPrimitivePainter.h.


Public Types
typedef vtkPolyDataPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual int	GetSupportedPrimitive ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPrimitivePainter *	SafeDownCast (vtkObject *o)
Protected Types
enum	{ VTK_PDM_NORMALS = 0x01, VTK_PDM_COLORS = 0x02, VTK_PDM_TCOORDS = 0x04, VTK_PDM_CELL_COLORS = 0x08, VTK_PDM_CELL_NORMALS = 0x10, VTK_PDM_OPAQUE_COLORS = 0x20, VTK_PDM_FIELD_COLORS = 0x40, VTK_PDM_GENERIC_VERTEX_ATTRIBUTES = 0x80 }
Protected Member Functions
	vtkPrimitivePainter ()
	~vtkPrimitivePainter ()
virtual void	PrepareForRendering (vtkRenderer , vtkActor )
virtual void	ProcessInformation (vtkInformation *)
virtual vtkDataObject *	GetOutput ()
virtual void	ReportReferences (vtkGarbageCollector *collector)
virtual void	SetSupportedPrimitive (int)

virtual int	RenderPrimitive (unsigned long flags, vtkDataArray n, vtkUnsignedCharArray c, vtkDataArray t, vtkRenderer ren)=0

virtual void	RenderInternal (vtkRenderer renderer, vtkActor actor, unsigned long typeflags)
Protected Attributes
int	SupportedPrimitive
int	DisableScalarColor
vtkPolyData *	OutputData
vtkTimeStamp	OutputUpdateTime
bool	GenericVertexAttributes

Member Typedef Documentation

typedef vtkPolyDataPainter vtkPrimitivePainter::Superclass

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

Definition at line 40 of file vtkPrimitivePainter.h.

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:

VTK_PDM_NORMALS
VTK_PDM_COLORS
VTK_PDM_TCOORDS
VTK_PDM_CELL_COLORS
VTK_PDM_CELL_NORMALS
VTK_PDM_OPAQUE_COLORS
VTK_PDM_FIELD_COLORS
VTK_PDM_GENERIC_VERTEX_ATTRIBUTES

Definition at line 54 of file vtkPrimitivePainter.h.

Constructor & Destructor Documentation

vtkPrimitivePainter::vtkPrimitivePainter ( ) [protected]

vtkPrimitivePainter::~vtkPrimitivePainter ( ) [protected]

Member Function Documentation

virtual const char* vtkPrimitivePainter::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

static int vtkPrimitivePainter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

virtual int vtkPrimitivePainter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

static vtkPrimitivePainter* vtkPrimitivePainter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

void vtkPrimitivePainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataPainter.

Reimplemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

virtual int vtkPrimitivePainter::GetSupportedPrimitive ( ) [virtual]

Get the type of primitive supported by this painter. This must be set by concrete subclasses.

virtual void vtkPrimitivePainter::PrepareForRendering	(	vtkRenderer *	,
		vtkActor *
	)			`[protected, virtual]`

Some subclasses may need to do some preprocessing before the actual rendering can be done eg. build effecient representation for the data etc. This should be done here. This method get called after the ProcessInformation() but before RenderInternal(). This method is overridden to update the output data as per the input.

Reimplemented from vtkPainter.

virtual void vtkPrimitivePainter::ProcessInformation ( vtkInformation * ) [protected, virtual]

Called before RenderInternal() if the Information has been changed since the last time this method was called.

Reimplemented from vtkPolyDataPainter.

virtual vtkDataObject* vtkPrimitivePainter::GetOutput ( ) [protected, virtual]

Subclasses need to override this to return the output of the pipeline.

Reimplemented from vtkPainter.

virtual int vtkPrimitivePainter::RenderPrimitive	(	unsigned long	flags,
		vtkDataArray *	n,
		vtkUnsignedCharArray *	c,
		vtkDataArray *	t,
		vtkRenderer *	ren
	)			`[protected, pure virtual]`

The actual rendering happens here. This method is called only when SupportedPrimitive is present in typeflags when Render() is invoked. This method returns 1 when the rendering was successful. Concrete Primitive painters may support rendering a primitive only when the input data satifies certain criteria. The return value is used to decide if the subclasses succeeded in rendereing. If not the render request is forwarded to the delegate. On success, the request forwareded to the delegate does not include a request to render the supported primitive type.

Implemented in vtkLinesPainter, vtkPointsPainter, vtkPolygonsPainter, and vtkTStripsPainter.

virtual void vtkPrimitivePainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags
	)			`[protected, virtual]`

Based on the input polydata, setups certains flags and call RenderPrimitive() which is overridden by subclasses. If RenderPrimitive() is successful, the request forwarded to the delegate painter is with typeflags = (typeflags & ~this->SupportedPrimitive) i.e. the request is to render everything other than what the subclass rendered.

Reimplemented from vtkPainter.

Reimplemented in vtkLinesPainter.

virtual void vtkPrimitivePainter::ReportReferences ( vtkGarbageCollector * collector ) [protected, virtual]

Take part in garbage collection.

Reimplemented from vtkPainter.

virtual void vtkPrimitivePainter::SetSupportedPrimitive ( int ) [protected, virtual]
