vtkScalarsToColorsItem Class Reference

#include <vtkScalarsToColorsItem.h>

Inheritance diagram for vtkScalarsToColorsItem:

Inheritance graph
[legend]

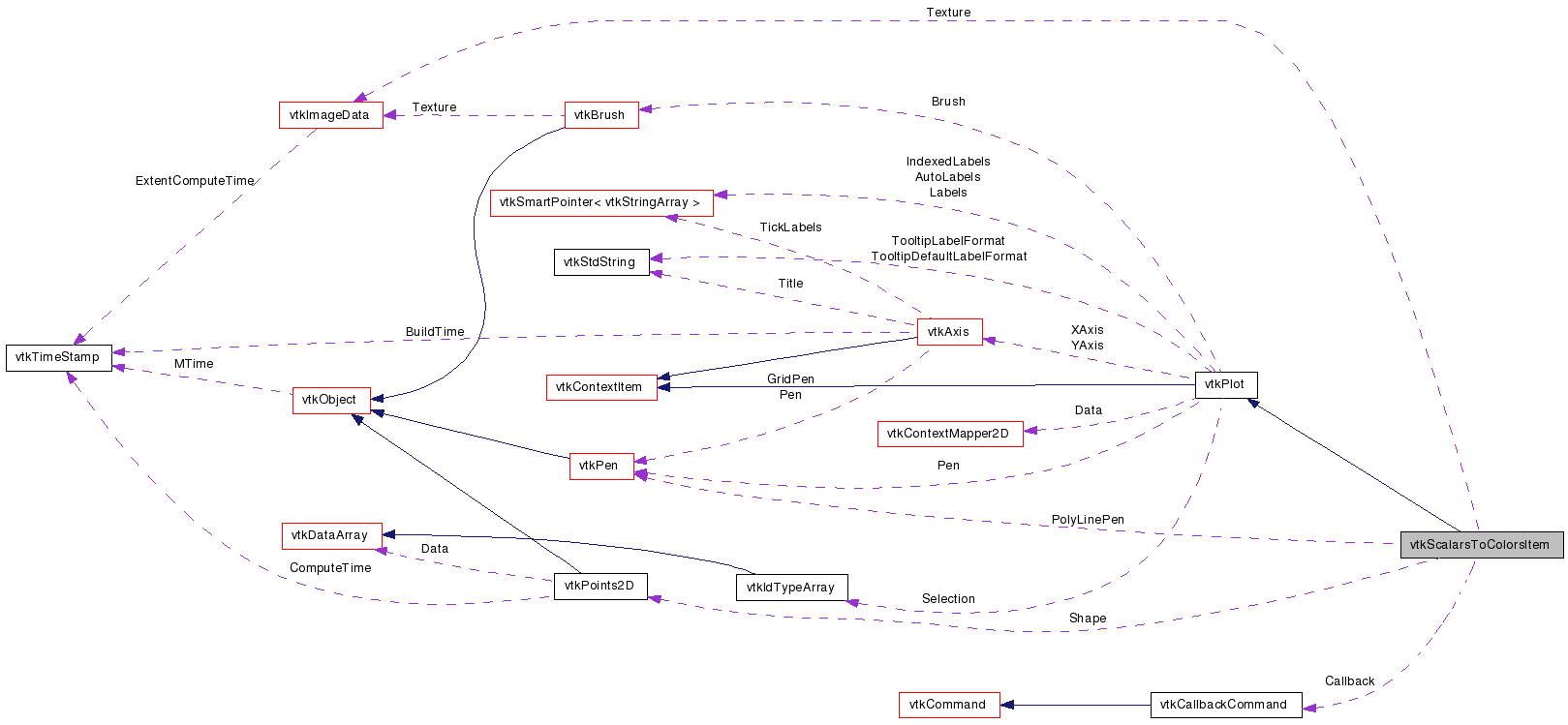

Collaboration diagram for vtkScalarsToColorsItem:

Collaboration graph
[legend]

List of all members.


Detailed Description

Abstract class for ScalarsToColors items.

vtkScalarsToColorsItem implements item bounds and painting for inherited classes that provide a texture (ComputeTexture()) and optionally a shape

See also:
vtkControlPointsItem vtkLookupTableItem vtkColorTransferFunctionItem vtkCompositeTransferFunctionItem vtkPiecewiseItemFunctionItem

Definition at line 38 of file vtkScalarsToColorsItem.h.

virtual void ScalarsToColorsModified (vtkObject *caller, unsigned long eid, void *calldata)
static void OnScalarsToColorsModified (vtkObject *caller, unsigned long eid, void *clientdata, void *calldata)

Public Types

typedef vtkPlot Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void GetBounds (double bounds[4])
virtual bool Paint (vtkContext2D *painter)
virtual vtkPenGetPolyLinePen ()
virtual void SetMaskAboveCurve (bool)
virtual bool GetMaskAboveCurve ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkScalarsToColorsItemSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkScalarsToColorsItem ()
virtual ~vtkScalarsToColorsItem ()
virtual void ComputeTexture ()=0

Protected Attributes

vtkImageDataTexture
bool Interpolate
vtkPoints2DShape
vtkCallbackCommandCallback
vtkPenPolyLinePen
bool MaskAboveCurve

Member Typedef Documentation


Constructor & Destructor Documentation

vtkScalarsToColorsItem::vtkScalarsToColorsItem (  )  [protected]

virtual vtkScalarsToColorsItem::~vtkScalarsToColorsItem (  )  [protected, virtual]


Member Function Documentation

virtual const char* vtkScalarsToColorsItem::GetClassName (  )  [virtual]

static int vtkScalarsToColorsItem::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

Reimplemented in vtkColorTransferFunctionItem, vtkCompositeTransferFunctionItem, vtkLookupTableItem, and vtkPiecewiseFunctionItem.

virtual int vtkScalarsToColorsItem::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

Reimplemented in vtkColorTransferFunctionItem, vtkCompositeTransferFunctionItem, vtkLookupTableItem, and vtkPiecewiseFunctionItem.

static vtkScalarsToColorsItem* vtkScalarsToColorsItem::SafeDownCast ( vtkObject o  )  [static]

virtual void vtkScalarsToColorsItem::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPlot.

Reimplemented in vtkColorTransferFunctionItem, vtkCompositeTransferFunctionItem, vtkLookupTableItem, and vtkPiecewiseFunctionItem.

virtual void vtkScalarsToColorsItem::GetBounds ( double  bounds[4]  )  [virtual]

Bounds of the item, by default (0, 1, 0, 1) but it mainly depends on the range of the ScalarsToColors function. Need to be reimplemented by subclasses if the range is != [0,1]

Reimplemented from vtkPlot.

Reimplemented in vtkColorTransferFunctionItem, vtkCompositeTransferFunctionItem, vtkLookupTableItem, and vtkPiecewiseFunctionItem.

virtual bool vtkScalarsToColorsItem::Paint ( vtkContext2D painter  )  [virtual]

Paint the texture into a rectangle defined by the bounds. If MaskAboveCurve is true and a shape has been provided by a subclass, it draws the texture into the shape

Reimplemented from vtkAbstractContextItem.

virtual vtkPen* vtkScalarsToColorsItem::GetPolyLinePen (  )  [virtual]

Get a pointer to the vtkPen object that controls the drawing of the edge of the shape if any. PolyLinePen type is vtkPen::NO_PEN by default.

virtual void vtkScalarsToColorsItem::SetMaskAboveCurve ( bool   )  [virtual]

Don't fill in the part above the transfer function. If true texture is not visible above the shape provided by subclasses, otherwise the whole rectangle defined by the bounds is filled with the transfer function. Note: only 2D transfer functions (RGB tf + alpha tf ) support the feature.

virtual bool vtkScalarsToColorsItem::GetMaskAboveCurve (  )  [virtual]

Don't fill in the part above the transfer function. If true texture is not visible above the shape provided by subclasses, otherwise the whole rectangle defined by the bounds is filled with the transfer function. Note: only 2D transfer functions (RGB tf + alpha tf ) support the feature.

virtual void vtkScalarsToColorsItem::ComputeTexture (  )  [protected, pure virtual]

Need to be reimplemented by subclasses, ComputeTexture() is called at paint time if the texture is not up to date compared to vtkScalarsToColorsItem Return false if no texture is generated.

Implemented in vtkColorTransferFunctionItem, vtkCompositeTransferFunctionItem, vtkLookupTableItem, and vtkPiecewiseFunctionItem.

virtual void vtkScalarsToColorsItem::ScalarsToColorsModified ( vtkObject caller,
unsigned long  eid,
void *  calldata
) [protected, virtual]

Called whenever the ScalarsToColors function(s) is modified. It internally calls Modified(). Can be reimplemented by subclasses

static void vtkScalarsToColorsItem::OnScalarsToColorsModified ( vtkObject caller,
unsigned long  eid,
void *  clientdata,
void *  calldata
) [static, protected]

Called whenever the ScalarsToColors function(s) is modified. It internally calls Modified(). Can be reimplemented by subclasses


Member Data Documentation

Definition at line 87 of file vtkScalarsToColorsItem.h.

Definition at line 88 of file vtkScalarsToColorsItem.h.

Definition at line 89 of file vtkScalarsToColorsItem.h.

Definition at line 90 of file vtkScalarsToColorsItem.h.

Definition at line 92 of file vtkScalarsToColorsItem.h.

Definition at line 93 of file vtkScalarsToColorsItem.h.


The documentation for this class was generated from the following file:
