vtkShadowMapBakerPass Class Reference

#include <vtkShadowMapBakerPass.h>

Inheritance diagram for vtkShadowMapBakerPass:

[legend]

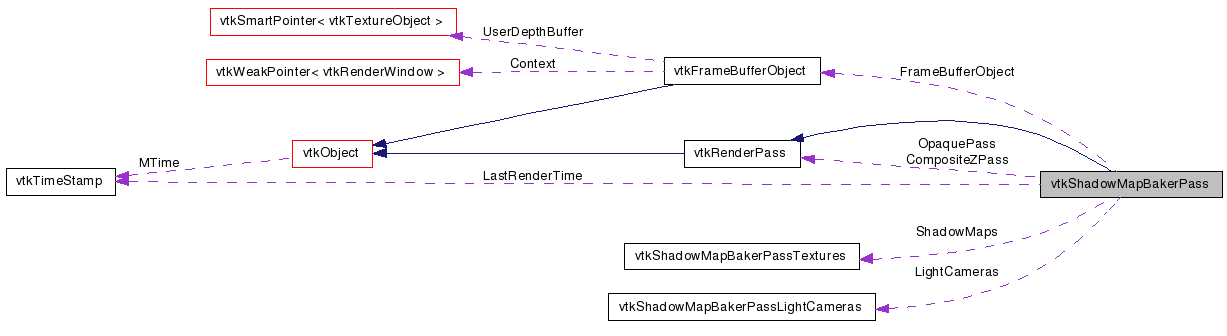

Collaboration diagram for vtkShadowMapBakerPass:

[legend]

List of all members.

Detailed Description

Implement a builder of shadow map pass.

Bake a list of shadow maps, once per spot light. It work in conjunction with the vtkShadowMapPass, which uses the shadow maps for rendering the opaque geometry (a technique to render hard shadows in hardware).

This pass expects an initialized depth buffer and color buffer. Initialized buffers means they have been cleared with farest z-value and background color/gradient/transparent color. An opaque pass may have been performed right after the initialization.

Its delegate is usually set to a vtkOpaquePass.

Implementation:: The first pass of the algorithm is to generate a shadow map per light (depth map from the light point of view) by rendering the opaque objects with the vtkShadowMapBakerPass::OCCLUDER property keys. The second pass is to render the opaque objects with the vtkShadowMap::RECEIVER keys.

See also:: vtkRenderPass, vtkOpaquePass, vtkShadowMapPass

Tests:: vtkShadowMapBakerPass (Tests)

Definition at line 58 of file vtkShadowMapBakerPass.h.


Public Types
typedef vtkRenderPass	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ReleaseGraphicsResources (vtkWindow *w)
bool	GetHasShadows ()
bool	LightCreatesShadow (vtkLight *l)
vtkShadowMapBakerPassTextures *	GetShadowMaps ()
bool	GetNeedUpdate ()
void	SetUpToDate ()

virtual void	Render (const vtkRenderState *s)

virtual vtkRenderPass *	GetOpaquePass ()
virtual void	SetOpaquePass (vtkRenderPass *opaquePass)

virtual vtkRenderPass *	GetCompositeZPass ()
virtual void	SetCompositeZPass (vtkRenderPass *compositeZPass)

virtual void	SetResolution (unsigned int)
virtual unsigned int	GetResolution ()

virtual void	SetPolygonOffsetFactor (float)
virtual float	GetPolygonOffsetFactor ()

virtual void	SetPolygonOffsetUnits (float)
virtual float	GetPolygonOffsetUnits ()

vtkShadowMapBakerPassLightCameras *	GetLightCameras ()
Static Public Member Functions
static vtkShadowMapBakerPass *	New ()
static int	IsTypeOf (const char *type)
static vtkShadowMapBakerPass *	SafeDownCast (vtkObject *o)
static vtkInformationIntegerKey *	OCCLUDER ()
static vtkInformationIntegerKey *	RECEIVER ()
Protected Member Functions
	vtkShadowMapBakerPass ()
virtual	~vtkShadowMapBakerPass ()
void	CheckSupport (vtkOpenGLRenderWindow *w)

void	PointNearFar (double v, double pt, double *dir, double &mNear, double &mFar, bool initialized)

void	BoxNearFar (double bb, double pt, double *dir, double &mNear, double &mFar)

void	BuildCameraLight (vtkLight light, double boundingBox, vtkCamera *lcamera)
Protected Attributes
vtkRenderPass *	OpaquePass
vtkRenderPass *	CompositeZPass
unsigned int	Resolution
float	PolygonOffsetFactor
float	PolygonOffsetUnits
bool	HasShadows
vtkFrameBufferObject *	FrameBufferObject
vtkShadowMapBakerPassTextures *	ShadowMaps
vtkShadowMapBakerPassLightCameras *	LightCameras
vtkTimeStamp	LastRenderTime
bool	NeedUpdate

Member Typedef Documentation

typedef vtkRenderPass vtkShadowMapBakerPass::Superclass

Reimplemented from vtkRenderPass.

Definition at line 62 of file vtkShadowMapBakerPass.h.

Constructor & Destructor Documentation

vtkShadowMapBakerPass::vtkShadowMapBakerPass ( ) [protected]

Default constructor. DelegatetPass is set to NULL.

virtual vtkShadowMapBakerPass::~vtkShadowMapBakerPass ( ) [protected, virtual]

Destructor.

Member Function Documentation

static vtkShadowMapBakerPass* vtkShadowMapBakerPass::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkShadowMapBakerPass::GetClassName ( ) [virtual]

Reimplemented from vtkRenderPass.

static int vtkShadowMapBakerPass::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderPass.

virtual int vtkShadowMapBakerPass::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderPass.

static vtkShadowMapBakerPass* vtkShadowMapBakerPass::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkRenderPass.

void vtkShadowMapBakerPass::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderPass.

static vtkInformationIntegerKey* vtkShadowMapBakerPass::OCCLUDER ( ) [static]

If this key exists on the PropertyKeys of a prop, the prop is viewed as a light occluder (ie it casts shadows). This key is not mutually exclusive with the RECEIVER() key.

static vtkInformationIntegerKey* vtkShadowMapBakerPass::RECEIVER ( ) [static]

virtual void vtkShadowMapBakerPass::Render ( const vtkRenderState * s ) [virtual]

Perform rendering according to a render state s.

Precondition:: s_exists: s!=0

Implements vtkRenderPass.

void vtkShadowMapBakerPass::ReleaseGraphicsResources ( vtkWindow * w ) [virtual]

Release graphics resources and ask components to release their own resources.

Precondition:: w_exists: w!=0

Reimplemented from vtkRenderPass.

virtual vtkRenderPass* vtkShadowMapBakerPass::GetOpaquePass ( ) [virtual]

Delegate for rendering the opaque polygonal geometry. If it is NULL, nothing will be rendered and a warning will be emitted. It is usually set to a vtkCameraPass with a sequence of vtkLightPass/vtkOpaquePass. Initial value is a NULL pointer.

virtual void vtkShadowMapBakerPass::SetOpaquePass ( vtkRenderPass * opaquePass ) [virtual]

Delegate for rendering the opaque polygonal geometry. If it is NULL, nothing will be rendered and a warning will be emitted. It is usually set to a vtkCameraPass with a sequence of vtkLightPass/vtkOpaquePass. Initial value is a NULL pointer.

virtual vtkRenderPass* vtkShadowMapBakerPass::GetCompositeZPass ( ) [virtual]

Delegate for compositing of the shadow maps accross processors. If it is NULL, there is no z compositing. It is usually set to a vtkCompositeZPass (Parallel package). Initial value is a NULL pointer.

virtual void vtkShadowMapBakerPass::SetCompositeZPass ( vtkRenderPass * compositeZPass ) [virtual]

Delegate for compositing of the shadow maps accross processors. If it is NULL, there is no z compositing. It is usually set to a vtkCompositeZPass (Parallel package). Initial value is a NULL pointer.

virtual void vtkShadowMapBakerPass::SetResolution ( unsigned int ) [virtual]

Set/Get the number of pixels in each dimension of the shadow maps (shadow maps are square). Initial value is 256. The greater the better. Resolution does not have to be a power-of-two value.

virtual unsigned int vtkShadowMapBakerPass::GetResolution ( ) [virtual]

Set/Get the number of pixels in each dimension of the shadow maps (shadow maps are square). Initial value is 256. The greater the better. Resolution does not have to be a power-of-two value.

virtual void vtkShadowMapBakerPass::SetPolygonOffsetFactor ( float ) [virtual]

Factor used to scale the maximum depth slope of a polygon (definition from OpenGL 2.1 spec section 3.5.5 "Depth Offset" page 112). This is used during the creation the shadow maps (not during mapping of the shadow maps onto the geometry) Play with this value and PolygonOffsetUnits to solve self-shadowing. Valid values can be either positive or negative. Initial value is 1.1f (recommended by the nVidia presentation about Shadow Mapping by Cass Everitt). 3.1f works well with the regression test.

virtual float vtkShadowMapBakerPass::GetPolygonOffsetFactor ( ) [virtual]

Factor used to scale the maximum depth slope of a polygon (definition from OpenGL 2.1 spec section 3.5.5 "Depth Offset" page 112). This is used during the creation the shadow maps (not during mapping of the shadow maps onto the geometry) Play with this value and PolygonOffsetUnits to solve self-shadowing. Valid values can be either positive or negative. Initial value is 1.1f (recommended by the nVidia presentation about Shadow Mapping by Cass Everitt). 3.1f works well with the regression test.

virtual void vtkShadowMapBakerPass::SetPolygonOffsetUnits ( float ) [virtual]

Factor used to scale an implementation dependent constant that relates to the usable resolution of the depth buffer (definition from OpenGL 2.1 spec section 3.5.5 "Depth Offset" page 112). This is used during the creation the shadow maps (not during mapping of the shadow maps onto the geometry) Play with this value and PolygonOffsetFactor to solve self-shadowing. Valid values can be either positive or negative. Initial value is 4.0f (recommended by the nVidia presentation about Shadow Mapping by Cass Everitt). 10.0f works well with the regression test.

virtual float vtkShadowMapBakerPass::GetPolygonOffsetUnits ( ) [virtual]

Factor used to scale an implementation dependent constant that relates to the usable resolution of the depth buffer (definition from OpenGL 2.1 spec section 3.5.5 "Depth Offset" page 112). This is used during the creation the shadow maps (not during mapping of the shadow maps onto the geometry) Play with this value and PolygonOffsetFactor to solve self-shadowing. Valid values can be either positive or negative. Initial value is 4.0f (recommended by the nVidia presentation about Shadow Mapping by Cass Everitt). 10.0f works well with the regression test.

bool vtkShadowMapBakerPass::GetHasShadows ( )

INTERNAL USE ONLY. Internally used by vtkShadowMapBakerPass and vtkShadowMapPass. Tell if there is at least one shadow. Initial value is false.

bool vtkShadowMapBakerPass::LightCreatesShadow ( vtkLight * l )

INTERNAL USE ONLY. Internally used by vtkShadowMapBakerPass and vtkShadowMapPass. Tell if the light `l' can create shadows. The light has to not be a head light and to be directional or positional with an angle less than 180 degrees.

Precondition:: l_exists: l!=0

vtkShadowMapBakerPassTextures* vtkShadowMapBakerPass::GetShadowMaps ( )

INTERNAL USE ONLY Internally used by vtkShadowMapBakerPass and vtkShadowMapPass. Give access to the baked shadow maps.

vtkShadowMapBakerPassLightCameras* vtkShadowMapBakerPass::GetLightCameras ( )

INTERNAL USE ONLY. Internally used by vtkShadowMapBakerPass and vtkShadowMapPass. Give access the cameras builds from the ligths.

bool vtkShadowMapBakerPass::GetNeedUpdate ( )

INTERNAL USE ONLY. Internally used by vtkShadowMapBakerPass and vtkShadowMapPass. Do the shadows need to be updated? Value changed by vtkShadowMapBakerPass and used by vtkShadowMapPass. Initial value is true.

void vtkShadowMapBakerPass::SetUpToDate ( )

void vtkShadowMapBakerPass::PointNearFar	(	double *	v,
		double *	pt,
		double *	dir,
		double &	mNear,
		double &	mFar,
		bool	initialized
	)			`[protected]`

Helper method to compute the mNearest point in a given direction. To be called several times, with initialized = false the first time. v: point pt: origin of the direction dir: direction
