vtkWedge Class Reference

a 3D cell that represents a wedge. More...

#include <vtkWedge.h>

Inheritance diagram for vtkWedge:

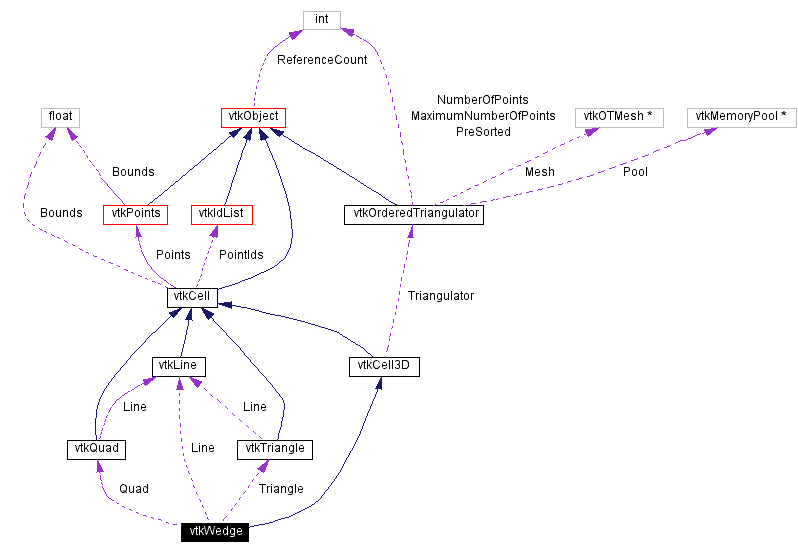

[legend]Collaboration diagram for vtkWedge:

[NOHEADER]
int	JacobianInverse (float pcoords[3], double **inverse, float derivs[18])
void	InterpolationFunctions (float pcoords[3], float weights[6])
void	InterpolationDerivs (float pcoords[3], float derivs[18])
int *	GetEdgeArray (int edgeId)
int *	GetFaceArray (int faceId)
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
int	GetParametricCenter (float pcoords[3])

virtual void	GetEdgePoints (int edgeId, int *&pts)
virtual void	GetFacePoints (int faceId, int *&pts)

vtkCell *	MakeObject ()
int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int faceId)
int	CellBoundary (int subId, float pcoords[3], vtkIdList *pts)
void	Contour (float value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (float x[3], float closestPoint, int &subId, float pcoords[3], float &dist2, float weights)
void	EvaluateLocation (int &subId, float pcoords[3], float x[3], float *weights)
int	IntersectWithLine (float p1[3], float p2[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, float pcoords[3], float values, int dim, float derivs)
Static Public Methods
vtkWedge *	New ()
int	IsTypeOf (const char *type)
vtkWedge *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWedge ()
	~vtkWedge ()
Protected Attributes
vtkLine *	Line
vtkTriangle *	Triangle
vtkQuad *	Quad

Detailed Description

a 3D cell that represents a wedge.

Date:: 2001/11/02 16:41:25

Revision:: 1.18

vtkWedge is a concrete implementation of vtkCell to represent a 3D wedge. A wedge consists of two triangular and three quadrilateral faces.

Examples:: vtkWedge (Examples)

Tests:: vtkWedge (Tests)

Definition at line 67 of file vtkWedge.h.

Constructor & Destructor Documentation

vtkWedge::vtkWedge ( ) [protected]

vtkWedge::~vtkWedge ( ) [protected]

Member Function Documentation

vtkWedge* vtkWedge::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkWedge::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

int vtkWedge::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

virtual int vtkWedge::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

vtkWedge* vtkWedge::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

virtual void vtkWedge::GetEdgePoints ( int edgeId,

int *& pts

) [virtual]

See vtkCell3D API for description of these methods.
Reimplemented from vtkCell3D.

virtual void vtkWedge::GetFacePoints ( int faceId,

int *& pts

) [virtual]

See vtkCell3D API for description of these methods.
Reimplemented from vtkCell3D.

vtkCell* vtkWedge::MakeObject ( ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::GetCellType ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 82 of file vtkWedge.h.

int vtkWedge::GetCellDimension ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell3D.
Definition at line 83 of file vtkWedge.h.

int vtkWedge::GetNumberOfEdges ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 84 of file vtkWedge.h.

int vtkWedge::GetNumberOfFaces ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 85 of file vtkWedge.h.

vtkCell* vtkWedge::GetEdge ( int edgeId ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

vtkCell* vtkWedge::GetFace ( int faceId ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::CellBoundary ( int subId,

float pcoords[3],

vtkIdList * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkWedge::Contour ( float value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * verts,

vtkCellArray * lines,

vtkCellArray * polys,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::EvaluatePosition ( float x[3],

float * closestPoint,

int & subId,

float pcoords[3],

float & dist2,

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkWedge::EvaluateLocation ( int & subId,

float pcoords[3],

float x[3],

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::IntersectWithLine ( float p1[3],

float p2[3],

float tol,

float & t,

float x[3],

float pcoords[3],

int & subId

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::Triangulate ( int index,

vtkIdList * ptIds,

vtkPoints * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkWedge::Derivatives ( int subId,

float pcoords[3],

float * values,

int dim,

float * derivs

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkWedge::GetParametricCenter ( float pcoords[3] ) [inline, virtual]

Return the center of the wedge in parametric coordinates.
Reimplemented from vtkCell.
Definition at line 132 of file vtkWedge.h.

void vtkWedge::InterpolationFunctions ( float pcoords[3],

float weights[6]

) [static]

Wedge specific methods for computing interpolation functions and derivatives.

void vtkWedge::InterpolationDerivs ( float pcoords[3],

float derivs[18]

) [static]

int vtkWedge::JacobianInverse ( float pcoords[3],

double ** inverse,

float derivs[18]

)

int* vtkWedge::GetEdgeArray ( int edgeId ) [static]

int* vtkWedge::GetFaceArray ( int faceId ) [static]

Member Data Documentation

vtkLine* vtkWedge::Line [protected]

Definition at line 123 of file vtkWedge.h.

vtkTriangle* vtkWedge::Triangle [protected]

Definition at line 124 of file vtkWedge.h.

vtkQuad* vtkWedge::Quad [protected]

Definition at line 125 of file vtkWedge.h.

The documentation for this class was generated from the following file:

Common/vtkWedge.h
